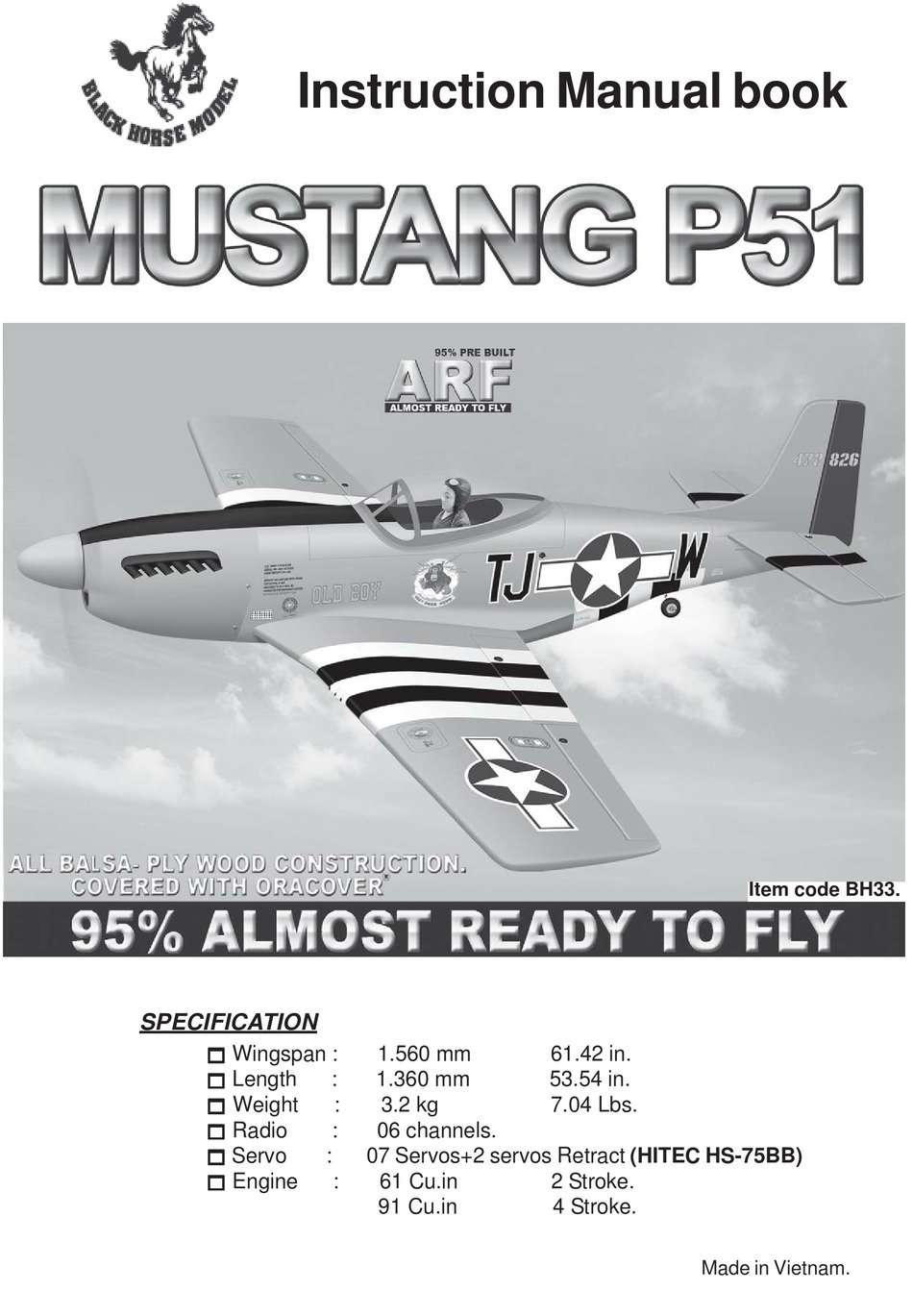

Instruction Manual book
SPECIFICATION
     Wingspan :
     Length
     Weight
     Radio
     Servo
     Engine
1.560 mm
:
1.360 mm
:
3.2 kg
:
06 channels.
:
07 Servos+2 servos Retract (HITEC HS-75BB)
:
61 Cu.in
91 Cu.in
61.42 in.
53.54 in.
7.04 Lbs.
2 Stroke.
4 Stroke.
Made in Vietnam.
Item code BH33.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MUSTANG P51 and is the answer not in the manual?

Questions and answers

Related Manuals for Black Horse Model MUSTANG P51

Summary of Contents for Black Horse Model MUSTANG P51

  • Page 1 Instruction Manual book Item code BH33. SPECIFICATION      Wingspan : 1.560 mm 61.42 in.      Length 1.360 mm 53.54 in.      Weight 3.2 kg 7.04 Lbs.      Radio 06 channels.
  • Page 2 Instruction Manual Item code: BH33 . This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your MUSTANG P51. Use the parts listing below to identify all parts. WARNING.

  • Page 3: Safety Precaution

    MUSTANG P51 - Instruction Manual Item code: BH33 . Caution: this model is not a toy! SAFETY PRECAUTION. If you are a beginner to this type of powered + This is not a toy model, please ask an experienced model flyer + Be sure that no other flyers are using your radio frequency.

  • Page 4: Installing The Aileron Servos

    MUSTANG P51 - Instruction Manual Item code: BH33 . 1.Door mounting wheel. 2. Wheels. Temporary pin to 3. Air retract main gear. keep hinge centered. 4. Spinner 5. Plastic part of wing 6.Plastic - enginemount. 7. Fuel tank. 8.Tail gear set.
  • Page 5 MUSTANG P51 - Instruction Manual Item code: BH33 . Servo wire. Thread. Aileron servo tray Aileron Control horn Remove covering INSTALLING THE AILERON CONTROL HORN. 3mm x 40mm. M3 lock nut. Nilon control clasp...

  • Page 6: Installing The Aileron Linkages

    MUSTANG P51 - Instruction Manual Item code: BH33 . C/A glue INSTALLING THE AILERON LINKAGES.  1. Working with the aileron linkage for now, thread one clevis onto one of the threaded wires. C o n t r o l horn ...
  • Page 7 MUSTANG P51 - Instruction Manual Item code: BH33 .  4. Locate one nylon servo arm, and using wire cutters,remove all but one of the arms. Using a 2mm drill bit, enlarge the third hole out from the center of the arm to accommo- date the aileron pushrod wire.

  • Page 8: Installing The Flap Servos

    MUSTANG P51 - Instruction Manual Item code: BH33 . INSTALLING THE FLAP SERVOS. Remove covering Flap servo C/A glue INSTALLING THE FLAP CONTROL HORN Flap control horn...
  • Page 9 MUSTANG P51 - Instruction Manual Item code: BH33 . INSTALLING RETRACTABLE LANDING GEAR. 3x6mm. 3x6mm. 3x4mm. 3x4mm. 3x15mm. 3x15mm. 5x35mm. Bottom of wing Aileron servo Flap servo Aileron Flap Top of wing...
  • Page 10 MUSTANG P51 - Instruction Manual Item code: BH33 . Mark point and Drill a hole 2mm. secure. Secure 5x35mm.
  • Page 11 MUSTANG P51 - Instruction Manual Item code: BH33 . 3x6mm 3x8mm Secure Secure Drill a hole 3mm Secure Drill a hole 3mm...
  • Page 12 MUSTANG P51 - Instruction Manual Item code: BH33 . Secure...
  • Page 13 MUSTANG P51 - Instruction Manual Item code: BH33 . 3x12mm Secure C/A glue...

  • Page 14: Installing The Engine Mount

    MUSTANG P51 - Instruction Manual Item code: BH33 . INSTALLING THE ENGINE MOUNT. See pictures below: FUEL TANK. INSTALLING THE STOPPER ASSEMBLY  1) The stopper has been pre-assembled at the factory.  2) Using a modeling knife, cut one length...
  • Page 15 MUSTANG P51 - Instruction Manual Item code: BH33 .  8) Feed three lines through the fuel tank compartment and through the pre-drilled hole in the firewall. Pull the lines out from behind the engine, while guiding the fuel tank into place.

  • Page 16: Installing The Engine

    MUSTANG P51 - Instruction Manual Item code: BH33 . Fuel tank Mark point Pushrod wire. INSTALLING THE ENGINE. Locate the long piece of wire used for the throttle pushrod. One end of the wire has been pre-bend in to a “Z” bend at the factory. This “Z”...
  • Page 17 MUSTANG P51 - Instruction Manual Item code: BH33 . Right side Trim and cut Right side Trim and cut Bottom side Left side Right side COWLING.  1) Slide the fiberglass cowl over the en- gine and line up the back edge of the cowl with the marks you made on the fuselage.

  • Page 18: Installing The Fuselage Servos

    MUSTANG P51 - Instruction Manual Item code: BH33 . Secure Left side  2) While keeping the back edge of the cowl flush with the marks, align the front of the cowl with the crankshaft of the engine. The Secure...
  • Page 19 MUSTANG P51 - Instruction Manual Item code: BH33 . Cut the covering away from the slot. Recever Temporary pin to keep hinge centered. Assemble then apply drops of thin C/A to center of hinge,on both sides.  1) Using a modeling knife, cut away the covering from the fuselage for the stabilizer and remove it.
  • Page 20 MUSTANG P51 - Instruction Manual Item code: BH33 . Remove covering. Remove covering.  2) Draw a center line onto the horizontal stabilizer. Then put the horizontal into the fu- selage. Bottom side center line Top elevator  3) Mark the shape of the vertical on the left and right sides onto the horizontal stabilizer using a left-tip pen.

  • Page 21: Elevator Control Horn Installa- Tion

    MUSTANG P51 - Instruction Manual Item code: BH33 . ELEVATOR CONTROL HORN INSTALLA- TION. Epoxy glue Elevator control horn install as same as the way of aileron control horn. Please see pic- tures below. 3mm x 40mm.  5) When you are sure that everything is...

  • Page 22: Elevator Pushrod Installation

    MUSTANG P51 - Instruction Manual Item code: BH33 . E l e v a t o r E l e v a t o r cotrol horn cotrol horn ELEVATOR PUSHROD INSTALLATION.  Elevator pushrod install as same as the way of aileron pushrod.

  • Page 23: Vertical Stabilizer

    MUSTANG P51 - Instruction Manual Item code: BH33 . VERTICAL STABILIZER. MOUNTING THE TAIL WHEEL BRACKET. Hinge.  1) Put the rudder into the fuselage as same as picture below.  2) Mark the shape of the vertical on the left and right sides of the rudder using a left-tip pen.
  • Page 24 MUSTANG P51 - Instruction Manual Item code: BH33 .  3. Now, remove the rudder and using a modeling knife, carefully cut just inside the marked lines and remove the film of the rud- der. Just as you did with the horizontal stabi- lizer, make sure you only press hard enough to cut the film, not the balsa rudder.
  • Page 25 MUSTANG P51 - Instruction Manual Item code: BH33 . Assemble then apply drops of thin C/A to center of hinge,on both sides. Epoxy glue  4. Put the vertical stabilizer back in  5) Using a modeling knife, cut away the place.
  • Page 26 MUSTANG P51 - Instruction Manual Item code: BH33 . CONTROL HORN - PUSHROD IN- STALLATION.  Rudder control horn install as same as the way of aileron control horn. Please see pic- tures below. 3 x 50mm. M3 lock nut.
  • Page 27 MUSTANG P51 - Instruction Manual Item code: BH33 . Remove covering Slot of the rudder pushrod 3 x 12mm Bottom of fuselage...
  • Page 28 MUSTANG P51 - Instruction Manual Item code: BH33 . Rudder control horn M2 clevis M3 lock nut Rudder pusrod Secure Rudder pushrod Bend and cut after...
  • Page 29 MUSTANG P51 - Instruction Manual Item code: BH33 . Snap keeper Rudder servo C/A glue Elevator servo Elevator Elevator pushrod pushrod Rudder pushrod Secure Rudder pushrod Elevator pushrod Elevator pushrod...

  • Page 30: Installing The Switch

    MUSTANG P51 - Instruction Manual Item code: BH33 . PUSHROD THROTTLE SERVO INSTALLATION.  Install adjustable servo connector in the servo arm. After installing the adjustable metal con- nector apply a small drop of thin C/A to the bottom nut. This will prevent the connector from loosening during flight.

  • Page 31: Joining The Wing Halves

    MUSTANG P51 - Instruction Manual Item code: BH33 . INSTALLING THE RECEIVER AND BATTERY.       1) Plug the servo leads and the switch lead into the receiver. You may want to plug an aileron extension into the receiver to make...

  • Page 32: Wing Attachment

    MUSTANG P51 - Instruction Manual Item code: BH33 . WING ATTACHMENT. See picture wing attach to fuselage. Right wing Wing bolt Left wing Wing bolt  Installing the canopy as same as picture below.
  • Page 33 MUSTANG P51 - Instruction Manual Item code: BH33 . Lift the model. If the tail drops when you lift, the model is “tail heavy” and you must add weigh* to the nose. If the nose drops, it is “nose heavy” and you must add weight* to the tail to balance.

  • Page 34: Control Throws

    5) Check the receiver antenna . It should be fully extended and not coiled up inside the fuselage.       6) Properly balance the propeller. We wish you many safe and enjoyable flights with your MUSTANG P51.
