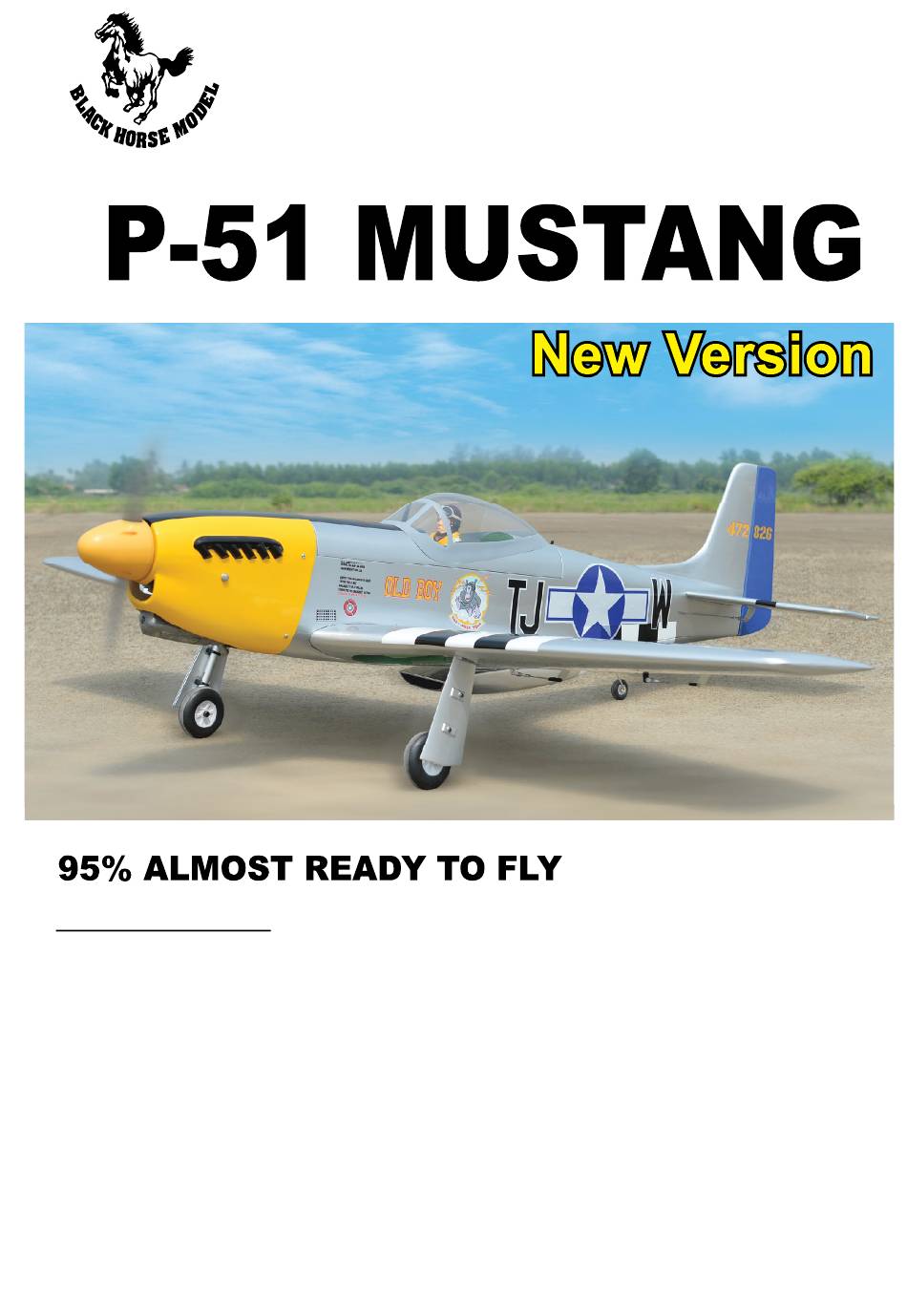

ALL BALSA - PLY WOOD CONSTRUCTION.
COVERED WITH ORACOVER.
SPECIFICATION
- Wingspan: 1,560mm (61.42in).
- Length: 1,360mm (53.54in.)
- Weight: 4kg (8.8lbs).
- Wing area: 46.2dm
- Wing loading: 86.6g/dm
- Wing type: Naca Airfoil.
- Gear type: Air retract gear
with oleo struts (included).
- Spinner: 80mm.
- Servo mount: 42mm x 21mm.
Instruction Manual Book
2
.
2
.
Item code: BH33-B.
Parts listing required (not included):
- Radio: 06 channels.
- Servo: 08 servos.
- Engine: 61-75 2 strokes; 15cc Gas.
- Motor: Brushless outrunner 1200-2200W, 650KV.
- Propeller: Suit with your engine.
Recommended Motor and Battery set up
(not included):
- Motor: RIMFIRE.60.
- Lipo cell: 6 cells 4,000-5,000mAh.
- Receiver battery: 6V/ 1200-2000mAh NiMH.
- ESC: 80A.
Made in Vietnam.
