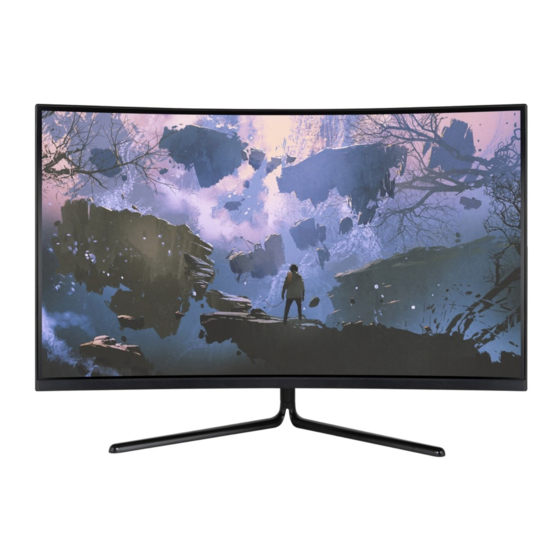

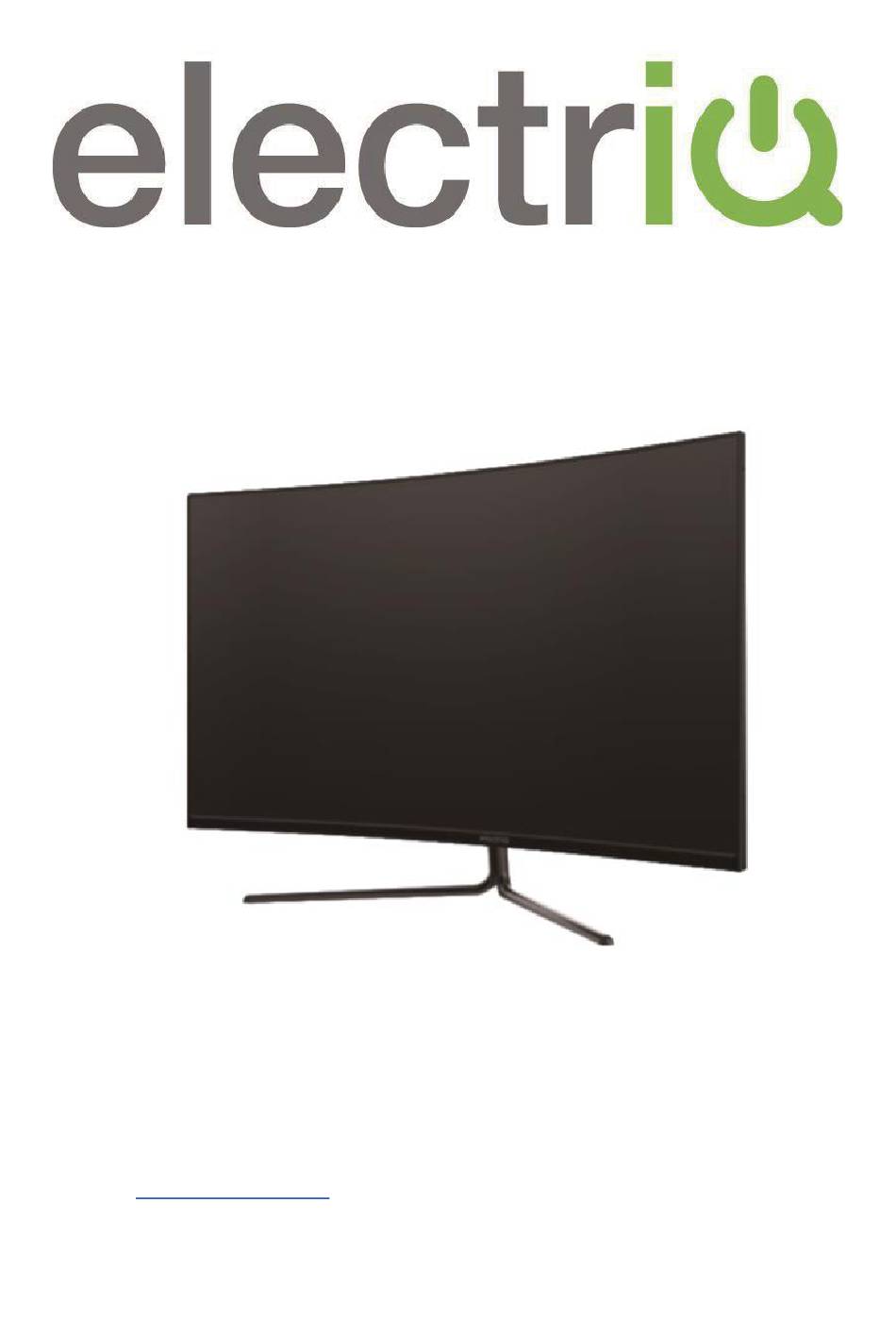

- Page 1 USER MANUAL 32 INCH CURVED LED MONITOR eiQ-32MCV4KAFSHDR Thank you for choosing electriQ Please read the user manual before using this monitor and keep it safe for future reference Visit www.electriQ.co.uk to view our entire range of Intelligent Electricals...
-
Page 2: Table Of Contents
CONTENTS SAFETY PARTS LIST STAND INSTALLATION WALL MOUNT INSTALLATION CONNECTIONS AVAILABLE GETTING STARTED MONITOR CONTROLS INITIAL SET UP SHORTCUT BUTTONS MENU OPTIONS INPUT SOURCE BRIGHTNESS / CONTRAST COLOUR SETTINGS PICTURE QUALITY SETTINGS DISPLAY AUDIO MULTI WINDOW OTHER TECHNICAL SPECIFICATION TROUBLESHOOTING SUPPORT... -
Page 3: Safety
SAFETY INFORMATION • Read these instructions - All the safety and operating instructions should be read before this product is operated. • Keep these instructions - The safety and operating instructions should be retained for future reference. • Heed all warnings - All warnings on the appliance and in the operating instructions should be adhered to. - Page 4 • Do not place heavy items on the cable as this may cause damage. • When removing from a socket hold by the plug and not the wires. • Disconnect the power immediately and seek professional help if the plug or cable is damaged, liquid has spilt onto the unit, if accidentally exposed to water or moisture, if anything accidentally penetrates the ventilation slots or if the unit does not work normally.
-
Page 5: Parts List
PARTS LIST Bolts x 4 Extension Bolts x 4 Monitor (For Stand (For Wall Mount Installation) Assembly) Cable Clip DP Cable USB Cable Power Cable (AC 100-240V, User Manual Stand - Base 50/60Hz) Stand – Upright Section... -
Page 6: Stand Installation
2 people. • electriQ and its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases any guarantee will expire. -
Page 7: Wall Mount Installation
Please follow the instructions provided by the wall bracket manufacturer and ensure that all fixing screws supplied are used. • electriQ and its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such... -
Page 8: Connections Available
CONNECTIONS AVAILABLE ON THE MONITOR 1. Power AUDIO OUTPUT 3. DP 1 HDMI 1 - HDMI 2 – HDMI3 GETTING STARTED MONITOR CONTROLS Select signal source or Exit the menu Go Up within the Main Menu or increase the value of the selected item Go Down within the Main Menu or decrease the value of the selected item... -
Page 9: Initial Setup
INITIAL SETUP CONNECT THE MONITOR TO A POWER OUTLET 1. Press the POWER button on the monitor or to turn it on (The indicator will be blue) 2. Connect the relevant cable to the corresponding input on the monitor. The source will be automatically detected. -
Page 10: Input Source
OSD MENU INPUT SOURCE Switch the signal input or select the source. DP, HDMI1, HDMI2, Signal HDMI3 BRIGHTNESS/CONTRAST Brightness Adjust the brightness of the display between 0 and 100. Contrast Adjust the contrast of the display between 0 and 100. Turn the Dynamic Contrast Ratio Feature On or Off. -
Page 11: Colour Settings
COLOUR SETTINGS Gamma Change the Gamma value for the display between 2.0, 2.2 and 2.4. Picture Change the picture mode between Standard, Photo, Movie, Game, Mode FPS and RTS. Change the Colour Temperature of the display to Normal, Warm, Colour Cool or User. -
Page 12: Picture Quality Settings
PICTURE QUALITY SETTINGS Sharpness Change the display Sharpness between 0 and 100. Response Time Turn the Response Over Drive feature between Off, High, Middle of low Noise Reduction Adjust the level of Noise Reduction between Low, Medium, High, or Off. Super Resolution Change the Super Resolution value from 0 to 5. -
Page 13: Display
DISPLAY Aspect Ratio Change the image aspect ratio to Wide Screen LED Mode Enter the monitors LED mode AUDIO Mute Turn On and off to mute and unmute the audio output. Volume Adjust the output volume between 0 and 100. Audio Source Chose which source the audio is output from. -
Page 14: Multi Window
MULTI-WINDOW Choose the different formats of multi window display between Off, Multi-Window Picture in Picture (PIP) and Picture By Picture (PBP 2Win) Choose the source of the second window between HDMI 1, HDMI 2, Sub Win2 Input HDMI 3 and DP. Adjust the size of the secondary source in PIP and PBP modes PIP Size between Small, Medium and Large... -
Page 15: Osd
Change the OSD Menu display language between English, Chinese, Korean, Russian, Language Spanish, Japanese and French. OSD H Change the horizontal position of the OSD Menu. Position OSD V Change the vertical position of the OSD Menu. Position Change the transparency value of the OSD Menu between 0 and 100. Transparency OSD Time Out Change how long the OSD Menu is on before it automatically exits. -
Page 16: Other
OTHER Free Sync Turn Free Sync On or Off. HDR: Turn HDR On (requires HDMI 2.0 Mode input). DP Version Change the DP version Reset Restore factory default setting. Turn the HDR on or off. -
Page 17: Technical Specification
TECHNICAL SPECIFICATION eiQ-32MCV4KVAFSHDR Product Model Screen Size 32” Diagonal Panel Type VA Panel Aspect Ratio 16:9 Power Supply AC 100-240V, 50/60Hz, 1.5A Power Consumption 46W(Typical) Dimensions 712*505.6 *226.5 mm Net / Gross Weight 7.07kg / 9.09 kg Maximum Resolution 3840*2160 Brightness 350cd/m 2 Static Contrast... -
Page 18: Troubleshooting
Please contact the local council for details of your local household waste recycling centres electriQ UK SUPPORT www.electriQ.co.uk/support If the unit fails to operate call: 0871 620 1057 or complete the online form Office hours: 9AM - 5PM Monday to Friday www.electriQ.co.uk...
