ElectrIQ eiQ-32M4K144FS User Manual

32 inch led monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

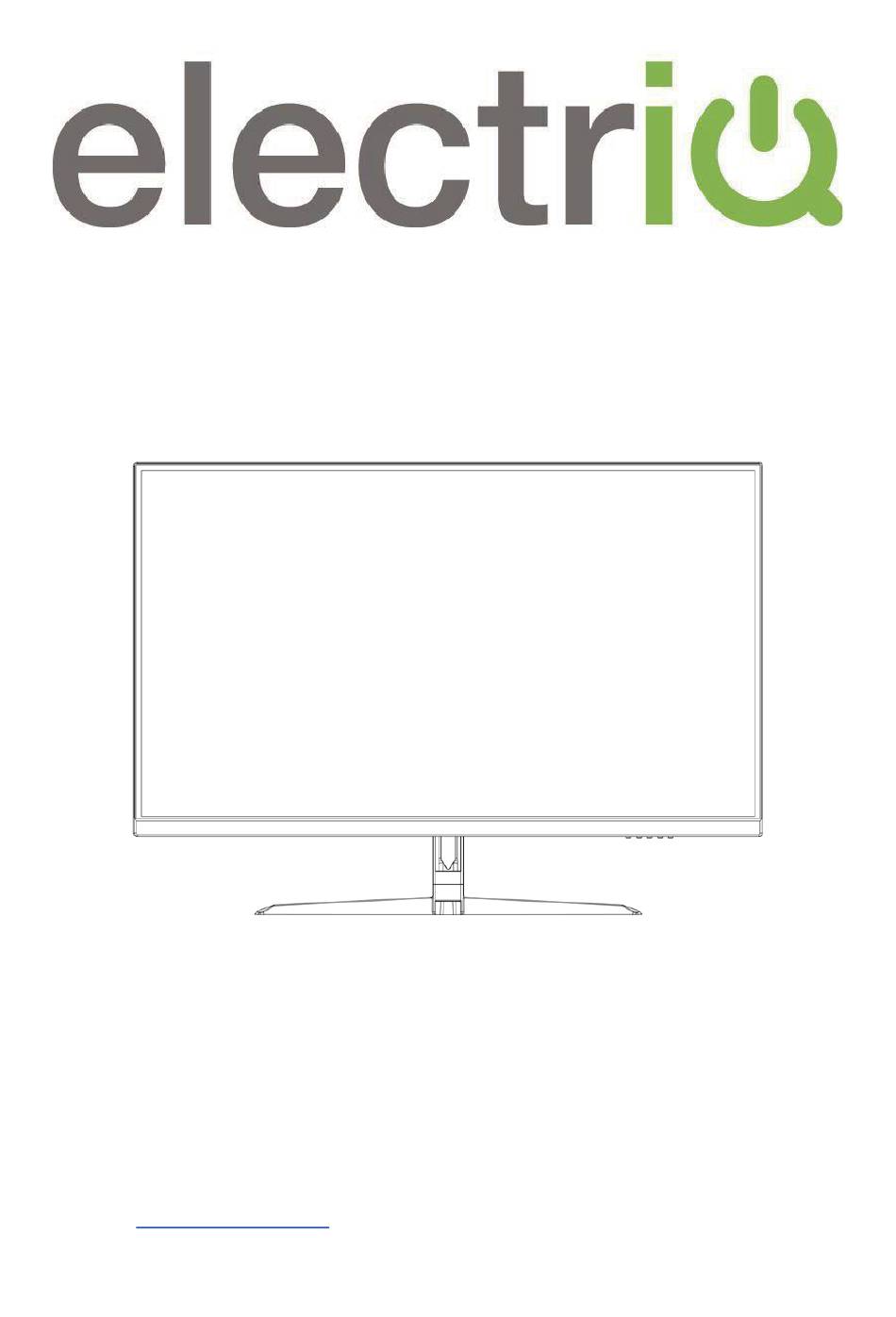

USER MANUAL
32 INCH LED MONITOR
eiQ-32M4K144FS
Thank you for choosing electriQ
Please read the user manual before using this monitor and keep it safe for future reference
Visit
www.electriQ.co.uk
to view our entire range of Intelligent Electricals

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eiQ-32M4K144FS and is the answer not in the manual?

Questions and answers

Related Manuals for ElectrIQ eiQ-32M4K144FS

Summary of Contents for ElectrIQ eiQ-32M4K144FS

  • Page 1 USER MANUAL 32 INCH LED MONITOR eiQ-32M4K144FS Thank you for choosing electriQ Please read the user manual before using this monitor and keep it safe for future reference Visit www.electriQ.co.uk to view our entire range of Intelligent Electricals...

  • Page 3: Table Of Contents

    CONTENTS SAFETY PARTS LIST STAND ASSEMBLY CONNECTIONS AVAILABLE GETTING STARTED MONITOR CONTROLS INITIAL SET UP SHORTCUT BUTTONS MENU OPTIONS INPUT SOURCE PICTURE COLOUR SETTINGS ADVANCE SETTINGS ULTRA HDR AUDIO QUICK LINK OTHER TECHNICAL SPECIFICATION TROUBLESHOOTING SUPPORT...

  • Page 4: Safety

    SAFETY INFORMATION • Read these instructions - All the safety and operating instructions should be read before this product is operated. • Keep these instructions - The safety and operating instructions should be retained for future reference. • Heed all warnings - All warnings on the appliance and in the operating instructions should be adhered to.
  • Page 5 • Do not place heavy items on the cable as this may cause damage. • When removing from a socket hold by the plug and not the wires. • Disconnect the power immediately and seek professional help if the plug or cable is damaged, liquid has spilt onto the unit, if accidentally exposed to water or moisture, if anything accidentally penetrates the ventilation slots or if the unit does not work normally.

  • Page 6: Parts List

    ⚫ that they are unpacked and assembled by 2 people. electriQ and its distributors and dealers are not liable or responsible for damage or injury caused by ⚫ improper installation, improper use or failure to observe these safety instructions. In such cases any guarantee will expire.

  • Page 7: Stand Assembly

    STAND ASSEMBLY 1. Open the package, take out the Styrofoam and place it flat on a table. 2. Remove the upper foam, remove the film bag from the monitor, and place the display on the lower foam. 3. Take out stem and base, Lock them with 1 screws (KM4*12mm). 4.

  • Page 8: Connections Available

    CONNECTIONS AVAILABLE ON THE MONITOR (HDMI 2.1) HDMI 2 (HDMI 2.1) 2. HDMI 1 DP 2 (DP 1.4) 4. DP 1 (DP 1.4) 5. Audio Out 6. Power GETTING STARTED MONITOR CONTROLS Enter the Main OSD Menu and Select submenu Go Up within the Main Menu or increase the value of the selected item Go Down within the Main Menu or decrease the value of the selected...

  • Page 9: Initial Set Up

    INTIAL SETUP Connect the monitor to a power outlet. 1. Press the power button on the monitor or to turn it on (The indicator will be blue). 2. Connect the relevant cable to the corresponding input on the monitor. The source will be automatically detected.

  • Page 10: Input Source

    OSD MENU INPUT SOURCE Switch the signal input or select the source between DP1, DP2, Signal HDMI1, HDMI2. PICTURE Brightness Adjust the brightness of the display between 0 and 100. Contrast Adjust the contrast of the display between 0 and 100. Sharpness Adjust the sharpness value between 0-4.

  • Page 11: Colour Settings

    COLOUR SETTINGS WHAT IT MEANS: Gamma – Affects the brightness / appearance of darker areas of the image. PCM – Chooses the colour management system used, which affects the colours displayed on the monitor. Gamma Change the display Gamma value to: Off, 1.8, 2.0, 2.2, 2.4. Colour Temp Change the colour Temp to 6500, 7500, 5800, 9300, sRGB, User.

  • Page 12: Advance Settings

    ADVANCE SETTINGS WHAT IT MEANS: Overdrive – Increases the speed of the monitors response to reduce ghosting of fast moving objects Display Stream Compression – Visually lossless compression to reduce the bandwidth demand when showing high definition content Fixed Rate Link – Designed to allow higher uncompressed resolutions.

  • Page 13: Audio

    AUDIO Mute Turn On and off to mute and unmute the audio output. Volume Adjust the output volume between 0 and 100. QUICK LINK WHAT IT MEANS: DDCCI – Allows communication between the monitor and computer, providing the computer with information about the monitors supported modes, and allows the computer to make changes to certain settings.

  • Page 14: Other

    OTHER Reset Restore factory default setting Menu Time Menu Time Adjust the time that OSD menu will display on the screen. OSD V Change the vertical position of the OSD Menu. Position OSD H Adjust the horizontal position of the OSD Menu. Position Language Change the OSD Menu display language.

  • Page 15: Technical Specification

    SPECIFICATION eiQ-32M4K144FS 32” (16:9) LED Backlit Monitor Panel Type Panel Dimensions 710.3mm Diagonal Case Type Matte Black Max Resolution 3840(H)x2160(V)@144Hz - Display Port 3840(H)x2160(V)@120Hz - HDMI Active Display Area 697.306(H)×392.234(V) Pixel Pitch 0.18159 (H)×0.18159(V) Contrast Ratio 1000:1 Typical Brightness 400 cd/m²...

  • Page 16: Troubleshooting

    Please contact the local council for details of your local household waste recycling centres electriQ UK SUPPORT www.electriQ.co.uk/support If the unit fails to operate call: 0330 390 3061 or complete the online form Office hours: 9AM - 5PM Monday to Friday www.electriQ.co.uk...
