INSTALLATION & COMMISSIONING GUIDE
www.fanox.com
Installation_Guide_SIABxxxxxxxxxx_Rev. 02
1 / 36

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIA-B Standard Series and is the answer not in the manual?

Questions and answers

Related Manuals for FANOX SIA-B Standard Series

Summary of Contents for FANOX SIA-B Standard Series

  • Page 1 SIA-B Standard Series Self & Dual Power Overcurrent Protection Relay INSTALLATION & COMMISSIONING GUIDE www.fanox.com Installation_Guide_SIABxxxxxxxxxx_Rev. 02 1 / 36...

  • Page 2: Table Of Contents

    Direct Access ........................ 21 7.3. Menus ..........................22 ..COMMISSIONING ......................29 8.1. Thermal resistance ....................... 29 8.2. Self powering ........................ 31 8.3. Measurements ......................31 8.4. Protection functions ....................31 ..SIAB110FC032AC REGISTRY ..................35 www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 2 / 36...

  • Page 3: Reception & Installation

    Testing protocol is a certificate that relay has passed all factory testing process with correct results. In case some fault is detected, consider putting into quarantine period the relay and contact Fanox for further instructions. 1.2. Relay verification When relay is unpacked, please, take your...

  • Page 4: Powering The Relay Up

    Once “C” key is pressed the name of phase and neutral currents (instead the complete model) is displayed on the top of LCD Standby screen. • Serial number (8 digits) and Firmware Version → HOLD ▲ www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 4 / 36...
  • Page 5 Then press OK key to start the test menu. Action Checking Output 1 Output 1 activated ▼ Output 2 Output 2 activated ▼ Output 3 Output 3 activated ▼ TripOutput Trip Output activated Skip from test menu www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 5 / 36...

  • Page 6: Relay Intallation

    Remove the battery and replace it respecting polarity (+ facing up): Battery characteristics: • AA 3.6V lithium battery • Model LS14500 from SAFT • Do not use rechargeable batteries or other types of battery www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 6 / 36...

  • Page 7: Relay Rear Part

    Phase B current output for measurement and self-power Digital output 1 NC Phase C current input for measurement and self-power Digital output 1 NO Phase C current output for measurement and self-power Digital 2 common output www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 7 / 36...

  • Page 8: Connection Diagram

    Auxiliary power supply - Digital output 3 NC Common of the Inputs Digital output 3 NO Input 1 RS485 Remote communication (*) B18-B19 Input 2 Input 3 (*) Optional depending on model 1.6. Connection diagram www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 8 / 36...

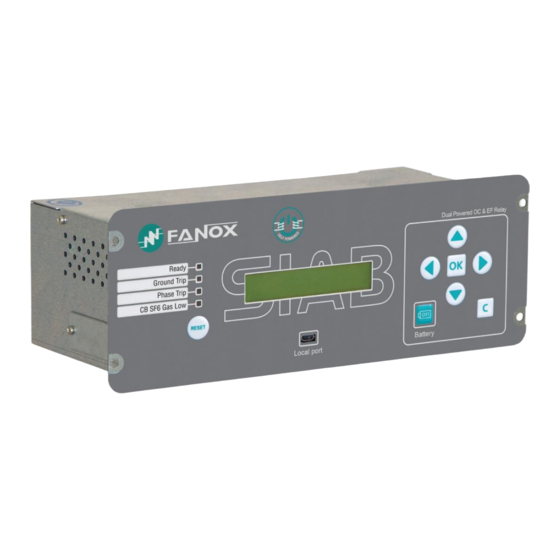

  • Page 9: User Interface

    Cb SF6 Gas Low 2.3. How to install SICOM software To install the SICom it is necessary the following link: http://fanox.blob.core.windows.net/sicom/publish.htm The link will open the next screen, where key “install” must be pressed: The necessary drivers depending on the operative system can be downloaded from this page.

  • Page 10: Setting-Up The Session: Password And Access Levels

    SIcom program. The password must be made up of 4 characters (passwords with more or less characters will not be accepted). By default, the equipment is programmed with the following passwords and their associated levels: PASSWORD ACCESS LEVEL 2222 3333 4444 5555 www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 10 / 36...

  • Page 11: Functional Diagram

    Without SHB permitted: ± 30 ms or ± 0.5% (greater of both). With SHB permitted: ± 50 ms or ± 0.5% (greater of both). Function Enable: Yes/No/SHB 50G_1 Function Current Tap: 0.10 to 10 xIn (step 0.01 xIn) www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 11 / 36...
  • Page 12 Time Delay: 0.02 to 300.00 s (step 0.01 s) Time Dial (TMS): 0.01 to 1.5 (step 0.01) Curve, activation level 110% Curve, deactivation level 100% Defined time, activation level 100% Defined time, deactivation level 95% Instantaneous deactivation www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 12 / 36...
  • Page 13 Sampling: 16 samples/cycle Accuracy Events 1024 events Disturbance Fault 20 fault reports, 16 events in each Recording (DFR) 10 Oscillographic records (50 cycles each) USB port: Modbus RTU Communication Auxiliary supply 24-230 Vac/Vdc +10/-20% www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 13 / 36...

  • Page 14: Phase Ct And Neutral Ct Selection

    SIA-B relay requires current transformers with the following specifications: SIAB/1: CT Burden 2 VA The relay is able to measure up to 30xIn, specifically, the range of measurement is from 0.1 till 30 times the nominal current. www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 14 / 36...

  • Page 15: Iec60255-151 Curves

    Very Inverse 13,5 Inverse 0,14 0,02 The curve can move from its axis using the D time selection device, which the user can adjust. is the initial operating current, set by the user. adjusted www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 15 / 36...

  • Page 16: Ieee Curves

    19,61 0,491 Inverse 0,0515 0,02 0,114 The curve can move from its axis using the TD time selection device, which the user can adjust. is the initial operating current, set by the user. adjusted www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 16 / 36...

  • Page 17: Opening Mechanism

    On the other hand, if a higher level that the required by the striker is selected, the activation of the striker is guaranteed, however, the fault trip time during start-up may be increased. Fanox encourages selecting the correct value of this critical setting and offers its expertise at any doubt.

  • Page 18: Outputs

    PHYSICAL OUTPUTS • Ground Trip Output 3 AND4 • General Trip • Trip Output OR4_PULSES General Trip Not configured ---- Not configured ---- LOGIC • External trip Input 1 Not configured Block 50 ---- www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 18 / 36...

  • Page 19: Leds

    If the signal that origins the activation of the LED does not remain activated, once this associated signal is deactivated the LED will be fixed. Once the LED is recognized, the LED will be switched off (due to the signal that provoked its activation is deactivated). www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 19 / 36...

  • Page 20: Flowchart (Example)

    Once “Output 1” appears, pressing “OK” the Output is activated and pressing “OK” again, it is deactivated. To go through all options, press “▼”. To activate and deactivate the options follow the same steps as in case of Output 1. www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 20 / 36...

  • Page 21: Direct Access

    Press the “C” key to return to the standby mode screen. Communication parameters Hold “▼” key from standby menu to access to communication parameters menu. Press the “C” key to return to the standby mode screen. www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 21 / 36...

  • Page 22: Menus

    “MEASUREMENTS” screen and press “OK”. Use the “▲” and “▼” keys to position the cursor over the measurement and to see its value. Press the “C” key to return to the standby mode screen. www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 22 / 36...
  • Page 23 Use “▼” key to overview the states and press “OK” when the desired option appears. Use “►” key to assign that state to a LED. After insering the password, It will be possible to assign the selected state to the configuration. www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 23 / 36...
  • Page 24 “OK” key to access the settings that belong to this group. Use the “▲” and “▼” keys to move through the different settings. The information that appears underneath the setting name is its value. www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 24 / 36...
  • Page 25 Use “▼” key to choose the wanted option (permission, curve type, time dial, tap or time delay) and press “OK” to access to its settings parameters. After inserting the password 5555 it will be possible to adjust the wanted value. www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 25 / 36...
  • Page 26 GENERAL settings. Use “▼” key to overview the options and press “OK” when “CT Phase Ratio” option appears. After inserting the password 5555 it will be possible to adjust the wanted value. www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 26 / 36...
  • Page 27 After the erasing of the events it will be appear there is 1 event corresponding to “Events erased” NOTE: When the events are deleted, the fault reports persist in the relay to analyze the fault situation until these faults reports are deleted consciously by the user. www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 27 / 36...
  • Page 28 To visualize the rest events, use “▼” key. How to delete the fault reports To delete the fault reports from the relay it is necessary to insert the password 5555 from the fault report menu. www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 28 / 36...

  • Page 29: Commissioning

    RELAY WITHSTAND GENERATION MODE SYSTEM CONNECTION ENERGY WAVEFORM Single phase Phase- NOT APPLY P-N: Neutral Phase- P-P: = 2x Phase Three phase Phase- Balanced (120°) P-N Balanced: Neutral Unbalanced (0°) P-N Unbalanced: = 3x www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 29 / 36...
  • Page 30 By following these recommendations, relay should pass commissioning test successfully. If commissioning test is performed not following these recommendations, manufacturer won’t be responsible for relay failure. www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 30 / 36...

  • Page 31: Self Powering

    Adjust the Sverker current generator with HOLD 0.2A, and suddenly, inject it to the relay, as it would happened in real situation when circuit breaker is close, powering network line. From this value, increase the current to achieve the function pick-up and the function trip. www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 31 / 36...
  • Page 32 Permission: YES. Curve: IEC Inverse. Dial: 0.05 TAP: 0.5xIn. Theoretical tripping time= 3.67 seconds (Fault current 0.55 A) The following information will be checked: Pick-up at 110% of the tap Trip output is activated www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 32 / 36...
  • Page 33 Led 1 is activated Led 3 is activated • 51G Inverse time neutral overcurrent protection: TEST 1 Settings: Permission: YES. Curve: IEC Inverse. Dial: 0.05 TAP: 0.3xIn. Theoretical tripping time= 3.67 seconds (Fault current 0.33 A) www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 33 / 36...
  • Page 34 Take into account this time is calculated through an equation and this time depends on the injected current, so doing a ramp is possible but the theoretical tripping time will not be checked. www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 34 / 36...

  • Page 35: Siab110Fc032Ac Registry

     OK 50G-1:  OK 51 phase A: 51 phase B: 51 phase C:  OK  OK  OK 51G: Protection Functions  OK  OK  OK SHB:  OK  OK www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 35 / 36...
  • Page 36 Bizkaia Science and Technology Park Building, 604 Derio, 48160 Bizkaia SPAIN T. +34 94 471 14 09 fanox@fanox.com www.fanox.com www.fanox.com Installation_Guide_SIAB110FC032AC_Rev. 02 36 / 36...
