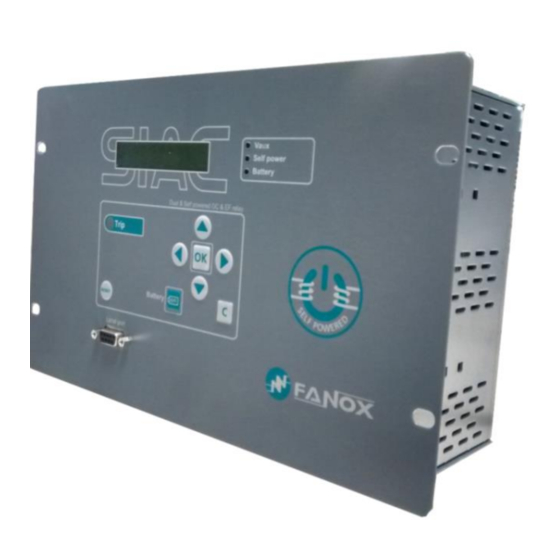

- Page 1 ISO 9001:2008 SIA C Self & Dual Power O/C & E/F Protection Relay INSTALLATION & COMMISSIONING GUIDE www.fanox.com SIAC116B1011AB_Rev. 05 1 / 32...
-
Page 2: Table Of Contents
Three phase minimum self-powering checking ................ 26 8.2.3. Verification of Leds/Signalling Outputs/LCD in self-powering conditions ......... 26 8.3. Measurements ..........................27 8.4. Protection functions ........................27 8.4.1. Protection functions testing ...................... 27 ..SIAC116B1011AB REGISTRY ......................30 www.fanox.com SIAC116B1011AB_Rev. 05 2 / 32... -
Page 3: Reception & Installation
Testing protocol is a certificate that relay has passed all factory testing process with correct results. In case some fault is detected, consider to put into quarantine period the relay and contact Fanox for further instructions. 1.2. Relay verification When relay is unpacked, please, take your time to confirm following checking list to be sure that everything is ok: •... -
Page 4: Powering The Relay Up With Kitcom
• Serial Number → In “General Settings” menu serial number of 8 digits can be checked (OK - ▼ - ▼ - ◄ - ▼ - ▼) • Firmware Version → In “Firmware Version” menu (HOLD ▲) www.fanox.com SIAC116B1011AB_Rev. 05 4 / 32... -
Page 5: Keypad & Lcd
Led Self power activated ▼ Led 3 Led Battery activated ▼ Trip output Trip output activated ▼ Output 2 Output 2 activated ▼ Output 3 Output 3 activated ▼ Trip Trip bistable activated Skip from test menu www.fanox.com SIAC116B1011AB_Rev. 05 5 / 32... -
Page 6: Relay Installation
Do not disassemble the battery. • Do not heat the battery above 100ºC (212ºF) • Do not throw the battery into fire or water. Failure to follow these instructions can result in death, serious injury, or equipment damage. www.fanox.com SIAC116B1011AB_Rev. 05 6 / 32... -
Page 7: Relay Rear Part
Auxiliary Voltage - RS485 gnd (N/A) RS485 – (N/A) Auxiliary Voltage + D3-D4 External trip RS485 + (N/A) D5-D6- Inputs (N/A) Earthing screw ╧ 1.6. Connection diagrams 1.6.1. Connection diagram. Three phase CTs and solid neutral. www.fanox.com SIAC116B1011AB_Rev. 05 7 / 32... -
Page 8: User Interface
LEDs can also be adapted. 2.4. How to install SICOM Software To install the SICom it is necessary the following link: http://fanox.blob.core.windows.net/sicom/publish.htm The link will open the next screen, where key “install” must be pressed: The necessary drivers depending on operative system downloaded from this page. -
Page 9: Setting-Up The Session: Password And Access Levels
Four passwords and their associated levels of access are set up when the equipment is configured using the SIcom program. By default, the equipment is programmed with the following passwords and their associated levels: PASSWORD ACCESS LEVEL 2222 3333 4444 5555 FUNCTIONAL DIAGRAM www.fanox.com SIAC116B1011AB_Rev. 05 9 / 32... -
Page 10: Technical Specifications
Instantaneous deactivation Timing accuracy: ± 5% or ±30 ms (whichever is greater) when the protection works with inverse time and ± 20 ms or ± 0.5% (whichever is greater) when it works with definite time www.fanox.com SIAC116B1011AB_Rev. 05 10 / 32... - Page 11 Self-power from current Three phase self-power level: I > 0,1 x In Operating temperature: -40 to 70ºC Environment Storage temperature: -40 to 80 ºC Humidity: 95% Transformers Power supply and measurement CT/1 Mechanical features Metallic box www.fanox.com SIAC116B1011AB_Rev. 05 11 / 32...
-
Page 12: Iec60255-151 Curves
Very Inverse 13,5 Inverse 0,14 0,02 The curve can mode from its axis using the D time selection device, which the user can adjust. I is the initial operating current, set by the user. adjusted www.fanox.com SIAC116B1011AB_Rev. 05 12 / 32... -
Page 13: Ieee Curves
19,61 0,491 Inverse 0,0515 0,02 0,114 The curve can move from its axis using the TD time selection device, which the user can adjust. is the initial operating current, set by the user. adjusted www.fanox.com SIAC116B1011AB_Rev. 05 13 / 32... -
Page 14: Opening Mechanism
On the other hand, if a higher level that the required by the striker is selected, the activation of the striker is guaranteed, however, the fault trip time during start-up may be increased. Fanox encourages selecting the correct value of this critical setting and offers its expertise at any doubt. -
Page 15: Programmable Logic Control
General trip • Neutral Trip Output 3 AND4 • General Trip Outputs and LEDs require, to be activated, the following mínimum current: Single phase→0.35xIn, this is 0.35 amperes. Three phase→0.17xIn, this is 0.17 amperes. www.fanox.com SIAC116B1011AB_Rev. 05 15 / 32... -
Page 16: Flowchart
Once “Led 1” appears, pressing “OK” the led is activated and pressing “OK” again, it is deactivated. To go through all options, press “▼”. To activate and deactivate the options follow the same steps as in case of Led 1. www.fanox.com SIAC116B1011AB_Rev. 05 16 / 32... -
Page 17: Direct Access
Press the “C” key to return to the standby mode screen. Communication parameters Hold “▼” key from standby menu to access to communication parameters menu. Press the “C” key to return to the standby mode screen. www.fanox.com SIAC116B1011AB_Rev. 05 17 / 32... -
Page 18: Menus
“MEASUREMENTS” screen and press “OK”. Use the “▲” and “▼” keys to position the cursor over the measurement and to see its value. Press the “C” key to return to the standby mode screen. www.fanox.com SIAC116B1011AB_Rev. 05 18 / 32... -
Page 19: States Menu
“OK” key to access the settings that belong to this group. Use the “▲” and “▼” keys to move through the different settings. The information that appears underneath the setting name is its value. www.fanox.com SIAC116B1011AB_Rev. 05 19 / 32... - Page 20 Use “▼” key to choose the wanted option (permission, curve type, time dial, tap or time delay) and press “OK” to access to its settings parameters. After inserting the password 5555 it will be possible to adjust the wanted value. www.fanox.com SIAC116B1011AB_Rev. 05 20 / 32...
- Page 21 GENERAL settings. Use “▼” key to overview the options and press “OK” when “CT phase ratio” option appears. After inserting the password 5555 it will be possible to adjust the wanted value. www.fanox.com SIAC116B1011AB_Rev. 05 21 / 32...
-
Page 22: Events Menu
1 event corresponding to “Events erased” NOTE: When the events are deleted, the faul reports persist in the relay to analyze the fault situation until these faults reports are deleted consciously by the user. www.fanox.com SIAC116B1011AB_Rev. 05 22 / 32... -
Page 23: Demand Menu
To visualize the rest events, use “▼” key. How to delete the fault reports To delete the fault reports from the relay it is necessary to insert the password 5555 from the fault report menu. www.fanox.com SIAC116B1011AB_Rev. 05 23 / 32... -
Page 24: Commisioning
INJECTION RELAY REAR RELAY WITHSTAND GENERATION MODE SYSTEM CONNECTION ENERGY WAVEFORM Single phase Phase-Neutral NOT APPLY P-N: Phase-Phase P-P: = 2x Three phase Phase-Neutral Balanced (120°) P-N Balanced: balanced (0°) P-N Unbalanced: = 3x www.fanox.com SIAC116B1011AB_Rev. 05 24 / 32... - Page 25 By following these recommendations, relay should pass commissioning test successfully. If commissioning test is performed not following these recommendations, manufacturer won’t be responsible for relay failure. www.fanox.com SIAC116B1011AB_Rev. 05 25 / 32...
-
Page 26: Self Powering
Once the relay is switched up, increase current injection until 0.35xIn isreached. At this value, the Leds and LCD should be switched on: www.fanox.com SIAC116B1011AB_Rev. 05 26 / 32... -
Page 27: Measurements
• 50N instantaneous neutral overcurrent protection: Settings: Permission: YES. TAP: 1xIn. Time: 2 (sec) The following information will be checked: Pick-up at 100% of the tap Trip output is activated Output 3 is activated Trip flag is activated www.fanox.com SIAC116B1011AB_Rev. 05 27 / 32... - Page 28 Curve: IEC Inverse. Dial: 1 TAP: 0.5xIn. Theoretical tripping time = 2.97seconds (Fault current 5xIn) The following information will be checked: Trip output is activated Output 2 is activated O/C Trip flag is activated www.fanox.com SIAC116B1011AB_Rev. 05 28 / 32...
- Page 29 Take into account this time is calculated through an equation and this time depends on the injected current, so doing a ramp is possible but the theoretical tripping time will not be checked. www.fanox.com SIAC116B1011AB_Rev. 05 29 / 32...
-
Page 30: Siac116B1011Ab Registry
50 phase A: 50 phase B: 50 Phase C: OK OK OK OK 51 phase A: 51 phase B: 51 phase C: OK OK OK OK OK www.fanox.com SIAC116B1011AB_Rev. 05 30 / 32... - Page 31 …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………. …………………………………………………………………………………………. …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………. …………………………………………………………………………………………. …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………. …………………………………………………………………………………………. …………………………………………………………………………………………………… …………………………………………………………………………………………………… www.fanox.com SIAC116B1011AB_Rev. 05 31 / 32...
- Page 32 ISO 9001:2008 www.fanox.com SIAC116B1011AB_Rev. 05 32 / 32...
