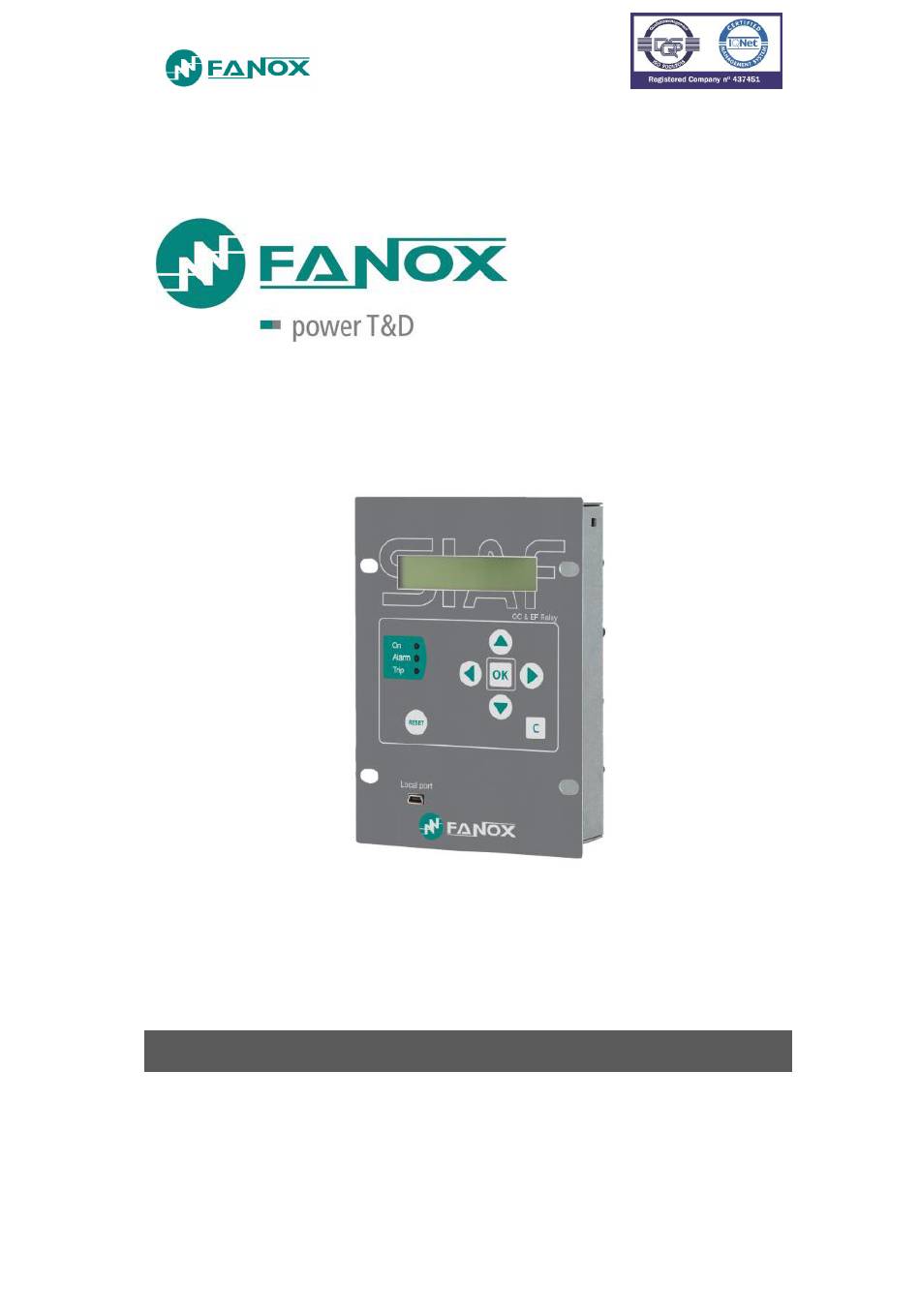

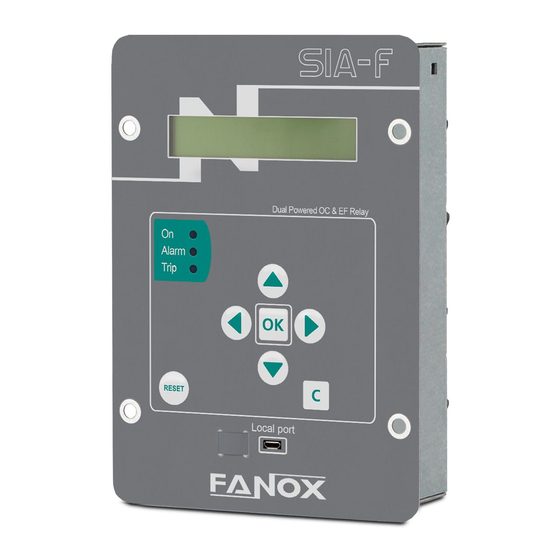

- Page 1 SIA-F O/C & E/F Protection Relay INSTALLATION & COMMISSIONING GENERIC GUIDE www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 1/32...
-
Page 2: Table Of Contents
States menu ........................22 7.3.3 Settings menu ........................ 23 7.3.4 Events menu........................25 7.3.5 Counters menu ....................... 26 7.3.6 Commands menu ......................26 7.3.7 Fault reports menu ......................27 ..COMMISSIONING ......................28 Thermal resistance ....................... 28 www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 2/32... -
Page 3: Reception & Installation
Testing protocol. Testing protocol is a certificate that relay has passed all factory testing process with correct results. In case some fault is detected, consider putting into quarantine period the relay and contact Fanox for further instructions. 1.2 Relay verification... -
Page 4: Powering The Relay Up With Kitcom
(instead the complete model) is displayed on the top of LCD Standby screen. • Serial Number → In “General Settings” menu serial number of 8 digits can be checked (OK - ▼ - ▼ - ◄ - ▼ - ▼) • version →HOLD ▲ Firmware www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 4/32... -
Page 5: Keypad & Lcd
ON-Led activated ▼ ALARM-Led ALARM-Led activated ▼ TRIP-Led TRIP-Led activated ▼ TripOutput Trip output activated ▼ Output 2 Output 2 activated (*) ▼ Output 3 Output 3 activated (*) Skip from test menu (*) Depending on model www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 5/32... -
Page 6: Relay Installation
P2: Phase N current output for Measurement Output 2 NC (*) RS485 + (*) Output 2 NO (*) RS485 - (*) V. Aux + (*) Input 1 (*) V. Aux - (*) (*) Optional depending on model. www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 6/32... -
Page 7: Connection Diagrams
1.6 Connection diagrams 3 Phase CT and neutral CT connection 3 Phase CT and residual neutral connection. www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 7/32... -
Page 8: User Interface
2.3 How to install SICOM Software To install the SICom it is necessary the following link: http://fanox.blob.core.windows.net/sicom/publish.htm The link will open the next screen, where key “install” must be pressed: The necessary drivers depending on the operative system can be downloaded from this page. The update of the software does not require any user´s action, this is, if the computer is connected to... -
Page 9: Setting-Up The Session: Password And Access Levels
Users must identify themselves with a password to start communications and to change the equipment settings or configuration using the HMI. By default, the password is 5555 and it can be changed from general settings menu. 3. FUNCTIONAL DIAGRAM www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 9/32... -
Page 10: Selection & Ordering Codes
USB (Modbus RTU) + RS485 (DNP3.0 Serial) Inputs and Outputs Trip Trip + 2 Inputs + 2 Outputs Mechanics Vertical Assembly Languages English, Spanish and German English, Spanish and Turkish English, Spanish and French English, Spanish and Russian Adaptation www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 10/32... -
Page 11: Technical Specification
Defined time, deactivation level 95% Instantaneous deactivation Timing accuracy: ± 30 ms or ± 0.5% (whichever is greater) Permission: yes/no 50/51N/G Function Operating range: 0.10 to 7 x In (step 0.01 x In) Curves: IEC 60255-151 and -IEEE www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 11/32... - Page 12 Tap: 0.10 to 2.40 In (step 0.01) ζ heating: 3 to 600 minutes (step 1 min) ζ cooling: 1 to 6 x ζ heating (step 1) Alarm level: 20 to 99% (step 1 %) Trip level: 100% www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 12/32...
- Page 13 Auxiliary power supply (*) 24-220 Vdc / 48-220 Vac ±20% Battery supply With KITCOM adapter to USB (connector USB type B) or directly though the front USB pot with a USB cable connected to the PC. www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 13/32...
- Page 14 Humidity: 95% 3 or 4 CT /5, /1 or /0.2 Transformers Mechanical features Metallic box Panel Mounting Height x Width: 167.8 x 120.65 (mm) Depth: 74.6 mm Weight: 1.05 kg. IP-54 (*) Optional depending on model www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 14/32...
-
Page 15: Iec60255-151 Curves
Ext. Inverse Very Inverse 13,5 Inverse 0,14 0,02 The curve can mode from its axis using the D time selection device, which the user can adjust. is the initial operating current, set by the user. adjusted www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 15/32... -
Page 16: Ieee Curves
Very Inverse 19,61 0,491 Inverse 0,0515 0,02 0,114 The curve can move from its axis using the TD time selection device, which the user can adjust. is the initial operating current, set by the user. adjusted www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 16/32... -
Page 17: Programmable Logic Control (*)
Fault start logical signal LOGICAL NAND_TIMER_UP SIGNALS (*) OR_PULSE 50 block logical signal NOR_PULSE 50N/G block logical signal AND_PULSE NAND_PULSE Reset logical signal NOR_PULSES Active group 1 logical signal Active group 2 logical signal (*) Optional depending on model www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 17/32... - Page 18 Not configured 50 block logical signal 50N/G block logical signa Not configured Reset logical signal Not configured Active group 1 logical signal Not configured Active group 2 logical signal Not configured (*) Optional depending on model www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 18/32...
-
Page 19: Flowchart (Example)
Once “ON-Led” appears, pressing “OK” the led is activated and pressing “OK” again, it is deactivated. To go through all options, press “▼”. To activate and deactivate the options follow the same steps as in case of ON-Led. www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 19/32... -
Page 20: Direct Access
Press the “C” key to return to the standby mode screen. Communication parameters Hold “▼” key from standby menu to access to communication parameters menu. Press the “C” key to return to the standby mode screen. www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 20/32... -
Page 21: Menus
Press the “C” key to return to the standby mode screen. If “OK” key is pressed in any of the current measurements, the current is displayed in secondary instaed of in primary. www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 21/32... -
Page 22: States Menu
The information shows whether each status is active. The message “>Activated” appears under the name of the group in the status group menus if any of the statuses in that group are active. Press the “C” key to return to the standby mode screen. www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 22/32... -
Page 23: Settings Menu
Use “▼” key to choose the wanted option (Permission, Tap or Time delay) and press “OK” to access to its settings parameters. After inserting the password 5555 it will be possible to adjust the wanted value. www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 23/32... - Page 24 For example: With TI 500/5, the setting would be 100. The frequency is selected for each model. The value is read only. www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 24/32...
-
Page 25: Events Menu
1 event corresponding to “Events erased” NOTE: When the events are deleted, the faul reports persist in the relay to analyze the fault situation until these faults reports are deleted consciously by the user. www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 25/32... -
Page 26: Counters Menu
“▼” keys to position the cursor over the “COMMANDS” screen. Press "OK" and use the “▲” and “▼” keys to position the cursor over the counters. The SIA-F has the following counters: Open Breaker Close Breaker Reset TI www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 26/32... -
Page 27: Fault Reports Menu
To visualize the rest events, use “▼” key. How to delete the fault reports To delete the fault reports from the relay it is necessary to insert the password 5555 from the fault report menu. www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 27/32... -
Page 28: Commissioning
INJECTION MODE INJECTION RELAY REAR RELAY WITHSTAND ENERGY GENERATION SYSTEM CONNECTION WAVEFORM Single phase Phase-Neutral NOT APPLY P-N: Phase-Phase P-P: = 2x Three phase Phase-Neutral Balanced (120°) P-N Balanced: Un balanced (0°) P-N Unbalanced: = 4x www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 28/32... - Page 29 By following these recommendations, relay should pass commissioning test successfully. If commissioning test is performed not following these recommendations, manufacturer won’t be responsible for relay failure. www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 29/32...
- Page 30 …………………………………………………………………………………………. …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………. …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………. …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………. …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 30/32...
- Page 31 …………………………………………………………………………………………. …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………. …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………. …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………. …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… www.fanox.com SIAFxxxxxxxxxxx_Rev. 01 31/32...
- Page 32 SIAFxxxxxxxxxxx_Rev. 01 32/32...
