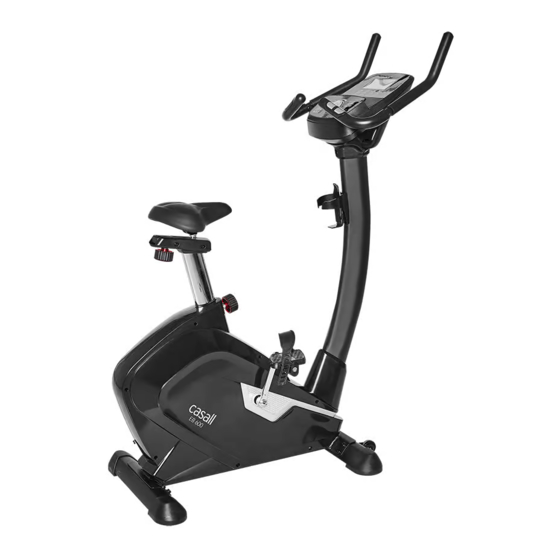

Casall EB600
Bike
91035

Advertisement

loading
Need help?

Need help?

Do you have a question about the EB600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Casall EB600

Summary of Contents for Casall EB600

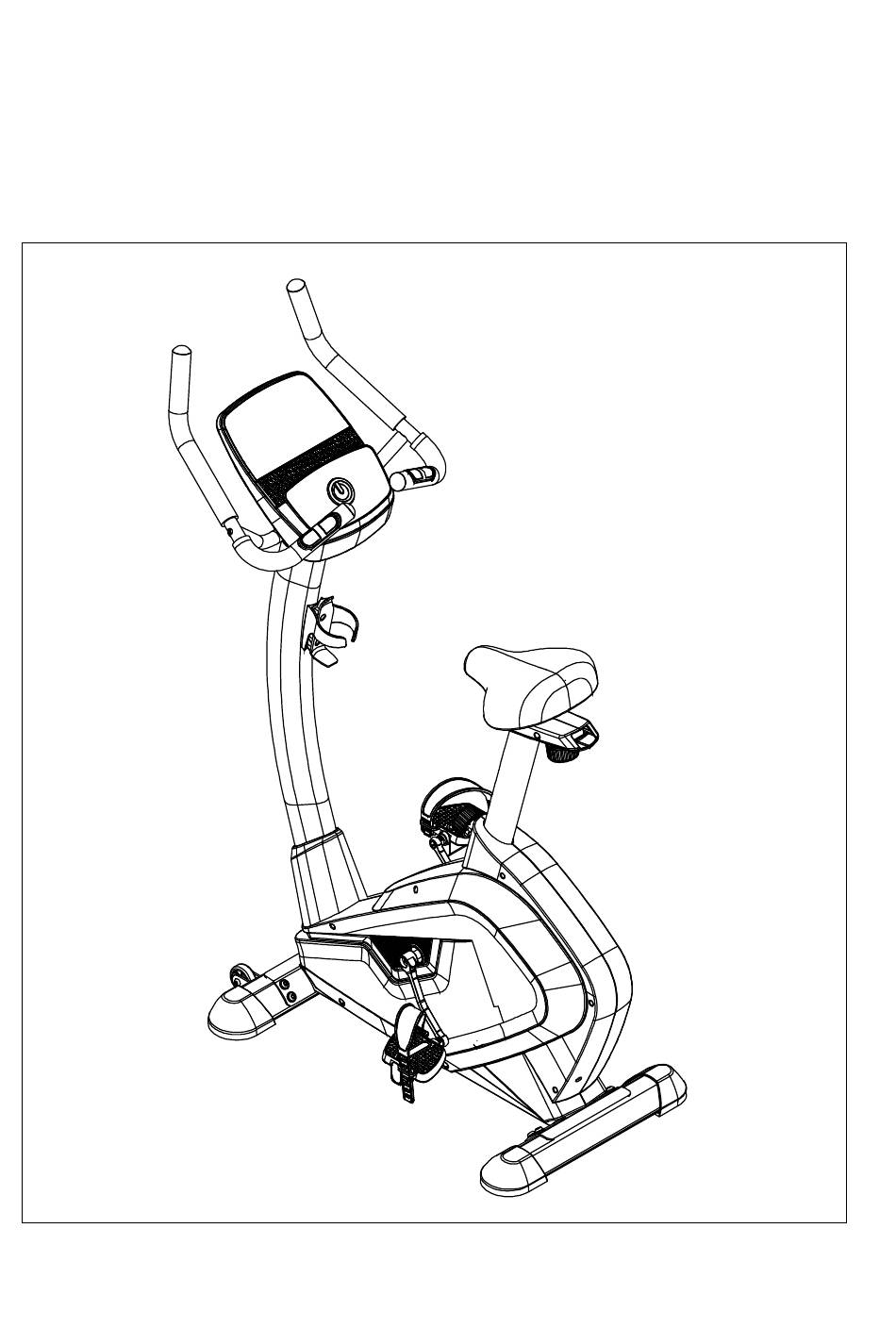

  • Page 1 Casall EB600 Bike 91035...
  • Page 2  Important: Please locate your serial number and record in the box below for service support purposes. Serial number  Serial number here:...

  • Page 4: Exploded Diagram

    EXPLODED DIAGRAM...

  • Page 5: Parts List

    PARTS LIST Description Q'ty Console & screw Left handlebar Right handlebar Upper foam grip Lower foam grip Cap for handlebar Sensor wire Hand pulse andlebar post Upper console cable Screw M5x30L Allen bolt M8*P1.25*20L Bottle holder Front cover for console Rear cover for console Allen bolt M8xP1.25x20L Flat washer φ8xφ19x2t...
  • Page 6 Right cover for Right chain cover E-24 Screw M3x8 E-25 Shaft Belt pulley Hex. Screw M8xP1.25x12Lx5t Bushing Flywheel set G-1~G-13 Gear box w/cable G, E-22 Magnetic set Hex. Screw M6xP1.0x16L Spring washer φ6 Flat washer φ6xφ13x1t Idler lever Idler wheel Nylon nut M8 Flat washer φ8.5xφ25x1t Hex.
  • Page 7 Screw M5x8L Seat Adaptor Hardware pack N-1~N-6...

  • Page 8: Step 2 Pedal Assembly

    Step 1 Foot Tube Assembly 1). Attach the front stabilizer (J) to the main frame (E) using two M8x20L Allen bolts (N-1) and flat washers (N-2). 2). Attach the rear stabilizer (K-1) to the main frame (E) using two M8x20L Allen bolts (N-1) and flat washers (N-2).
  • Page 9 Step 3 --Seat Tube Assembly 1. Assemble the seat (L-9) to the slider. The slider can be adjusted in different angles. Tighten the two nuts under the seat using a screwdriver. In addition, the slider can be adjusted at a horizontal level by loosening the knob.
  • Page 10 Step 4-Handlebar post assembly 1. Please r emove the M8X20L Allen bolt D -1 f lat w ashers ( D -2 ) and semicircle washer (D-3) 1 5 T 1 5 T 1 5 T 1 5 T 1 5 T 1 5 T 1 5 T 1 5 T 1 5 T 1 5 T 1 5 T 1 5 T...
  • Page 11 Step 5- Handlebar and bottle holder Assembly 1. Pass the hand-pulse wire (B-6) through the handlebar post hole in side. 2. Attach the left handlebar (B-1) to the left side of the handlebar post (C) using the Allen bolt (C- 3).

  • Page 12: Step 6- Console Assembly

    Step 6- Console Assembly 1. Please r emove the screw ) from t he console (A). 1 5 T 1 5 T 1 5 T 1 5 T 1 5 T 1 5 T 1 5 T 1 5 T 1 5 T 1 5 T 1 5 T 1 5 T 1 5 T 1 5 T...
  • Page 13 Step 7- Connect Adaptor 1 5 T 1 5 T C onnect the adaptor (G-10) to the DC hole (located on the back of the chain cover). 1 5 T 1 5 T I nstruction manual for the transmitter belt usage 1.
  • Page 14 iCONSOLE+ TRAINING APP INSTRUCTION MANUAL For a simple exercise it is not always necessary to select a training program or manually set the TIME, DISTANCE or other values. You can simply start pedaling. D ISPLAY FUNCTIONS ITEM DESCRIPTION TIME Count up - No preset target, Time will count up from 00:00 to maximum 99:59 with each increment being 1 minute.

  • Page 15: Watt Program

    WATT WATT constant training mode. PROGRAM K EY FUNCTION ITEM DESCRIPTION Increase resistance level Up (Encoder) Setting selection. Decrease resistance level Down (Encoder) Setting selection. Confirm setting or selection. Mode / Enter Press and hold for 2 seconds, the computer will reboot and start from user setting.

  • Page 16: Workout Selection

    -Training with set output value (WATT) OPERATION: POWER ON Plug in the power supply, the computer will power on and display all segments on LCD for 2 seconds (Drawing 1). Drawing 1 WORKOUT SELECTION Use UP or DOWN (Encoder) to select workout Manual (Drawing 2) Beginner(Drawing 3)  Advance (Drawing 4) ...
  • Page 17 Drawing 8 Drawing 9 Drawing 10 Drawing 11 Drawing 12 B eginner Mode 1. Use UP or DOWN (Encoder) to select the workout program, choose Beginner mode and press MODE / ENTER to get into. 2. Use UP or DOWN (Encoder) to select Beginner program 1~4 (Drawing 13) and press MODE / ENTER...
  • Page 18 Drawing 14 S porty Mode 1. Use UP or DOWN (Encoder) to select the workout program, choose Sporty mode and press MODE / ENTER to get 2. Use UP or DOWN (Encoder) to select Sporty program 1~4 (Drawing 15) and press MODE / ENTER to get 3.
  • Page 19 Drawing 18 Measuring your pulse with the hand sensors The hand sensor are not medical products but rather exercising tools designed for the approximate measurement and displaying of the pulse rate when exercising with the exercise bike. You can measure your pulse with the two-hand sensor on the handle.
  • Page 20 Training (Please note this APP is not a Casall developed product but it is integrated as an extra feature to use for you as user of this Casall Cardio product) Consumers can download the iConsole + APP by scanning the QR code, as shown below.
  • Page 21 • Login Accounts: Click the three lines icon in the upper left side of iConsole app homepage, then click the profile photo to login, you can choose Facebook, Gmail, Wechat accounts or registered the new accounts to log in this app.
  • Page 22 • User interface functions: HOME: Enter in training page. TRAINING HISTORY: Check your training history. REST HR TEST: Please connect wearable heart rate device to monitor HRrest. (need to connect Strava app) KINOMAP: Use KINOMAP to proceed with exercise of virtual reality. SUPPORT: Please feel free to contact us if you have any further question.
  • Page 23 • MY TRAINING homepage information: Including total distance, time, calories expenditure, and the data average for distance and calories of your last time training information on homepage.
  • Page 24 • GET STARTED: Key simple functions: Quick Start, Interval, Map, Constant power, Preset Programs. Circuit Training: Select a lesson and choose one of our cardio coaches to work out in group sequence. AI Training: Use wearable device, you can work out with systematic and personalize training.
  • Page 25 • PAIR DEVICE: Choosing the correct machine model on the list, then connecting your training machine with your Bluetooth before training. Choosing machine heart rate monitor device, Apple watch or BLE HRM device for your HR monitor source. Finishing above action please click the start icon in the upper right side.
  • Page 26 • Training function 1- QUICK START Enter quick start, you will see the index of lap, distance, resistance level, duration, speed, calories, HR zone, Heart Rate, Cadence, training power, BAI *1 etc. Click the pin icon in the bottom right side then you can lock this page. Touch any place on the page you can easily adjust the resistance level up and down, pause and stop your workout.
  • Page 27 • Training function 2 – INTERVAL Enter interval, the page will reveal lap, distance, resistance level, duration, speed, calories, HR zone, Heart Rate, Cadence, training power, BAI etc. Click the pin icon in the bottom right side then you can lock this page. Touch any place on the page you can easily adjust the resistance level up and down, pause and stop your workout.
  • Page 28 • Training function 3 – Map Route Enter map mode, you can search the route by yourself, or click in the upper right side for preset route. Make sure your route then slide to the left GO icon to start the workout. Click the icon in the upper right side you can easily switch the 2D,3D or street view.
  • Page 30 • Training Function 4 – Constant power Click Constant Power mode, User can set time(5-90mins), target power, and target cadence. When user finishes the setting, clicking START to exercise. When user starts workout, the page will reveal workout curve, cadence, power, heart rate, heart rate zone, time, calories, distance, resistance level, speed and BAI.
  • Page 31 • Training Function 5 – Programs Programs Mode, there are 12 preset programs in total. User can choose one of the preset programs and set workout time(20-60mins), then clicks START to workout. When user starts workout, the page will reveal workout curve, cadence, power, heart rate, heart rate zone, time, calories, distance, resistance level, speed and BAI.
  • Page 32 AI TRAINING What is AI TRAINING? “Due to different workout requirement, it will show different workout target.” With increasing the experience on sport activities through all those years, the supplier of this APP developed an impressive track workout record to user by our efficiency Algorithm. Thereby we produce one of the suitable schedules for our user, only take some simple settings, then AI will plan your current schedule to achieve the most effective training.
  • Page 33 Setting Add your date Choose Target...
  • Page 34 Exercise planning Equipment selection Start workout...
  • Page 35 What is BAI? Body activity intelligent is a kind of index that objectively and standardly evaluate your status. It may be adapted by every ages, gender, and regions. It will give you a reference score index to let you know every workout status. The more important thing is that BAI is based on many studies and has been approved by ACSM (the American College of Sports Medicine).
