Casall Mag Hybrid Assembly & Operating Instructions

Hide thumbs
Table of Contents

Advertisement

Quick Links

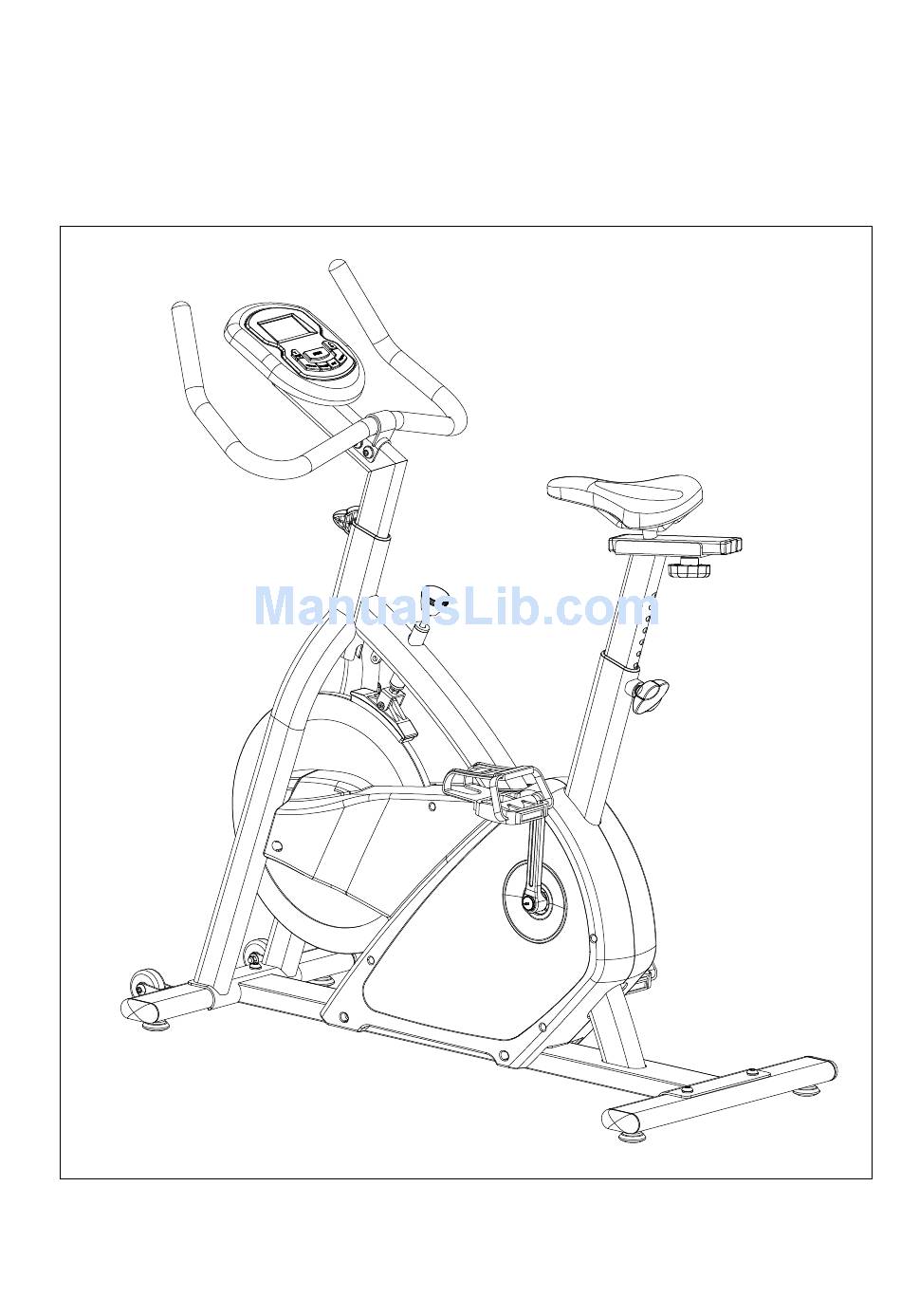

Assembly & Operating Instructions
For Mag Hybrid
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mag Hybrid and is the answer not in the manual?

Questions and answers

Related Manuals for Casall Mag Hybrid

Summary of Contents for Casall Mag Hybrid

  • Page 1 Assembly & Operating Instructions For Mag Hybrid...
  • Page 3 EXPLORATION DRAWING 大 爆 图...
  • Page 4 COMPLETE BIKE ASSEMBLY...

  • Page 5: Parts List

    PARTS LIST PART NO. DESCRIPTION A, A-1 Computer and Screw Handlebar Foam grip for handlebar 2PCS Cap for handlebar 2PCS Handlebar post End cap of handlebar post Screw M3*14 Stopper for handlebar Screw M3*14 Upper cap for handlebar post Upper cable for computer Rear stabilizer End cap for rear stabilizer 2PCS...
  • Page 6 E-11 Screw M5x14L 4PCS E-12 Bushing for chain cover E-13 Belts 1320m/m E-14 Belts 813m/m E-15 Bearing 6004RS 2PCS E-16 Nut M20*P1.0 Flat washerφ20.3xφ30x1t E-17 E-18 Sensor holder E-19 Sensor box E-20 Screw M4x10L for sensor holder E-21 DC cable E-22 Cap for hand post holder E-23,E-28...
  • Page 7 Pressing spring for Brake U holder for Brake Brake piece for Brake Bushing φ9x18L for Brake Flat washerφ10xφ14x1t for Brake 2PCS M-10 Screw M5x8 for Brake 2PCS N-1~N-3 Bolts & nuts pack 1SET Pedal 1SET Seat Adaptor...
  • Page 8 STEP 1 1. Attach the front stabilizer (D) to the main frame (E) using two flat washer (N-1) and allen bolt (N-3). 2. Attach the rear stabilizer (C) to the main frame (E) using two flat washer (N-1) and allen bolt (N-3) After assembly, the Trainer can be adjusted to slightly uneven ground by adjusting the height of the foot caps at the front and back.
  • Page 9 STEP 2 1. Assemble the left pedal (N-4L) to the left crank (E-29) and the right pedal (N-4R) to right crank (E-30). 2. Assemble the seat (N-5) to the seat post (L). 3. Then choose the desired position and tighten the knob (E-1). Be sure the knob is always tightened.
  • Page 10 STEP 3 3.1 : Please remove the adjusting knob (E-2) from the main frame (E). 3.2 : Release the screw from the lower sleeve and take of the sleeve from the handlebar post but do not take the sleeve off the lower cable. 3.3 : Insert the handlebar post (B-3) into the main frame (E), then choose the desired position and tighten the adjusting knob (E-2).
  • Page 11 STEP 4 1. Connect the upper cables (B-9)then attach the computer (A) to the computer bracket with the enclosed Screws (A-1) Screwdriver (N)
  • Page 12 SM3720 INSTRUCTION MANUAL...
  • Page 13 BUTTON FUNCTION: ITEM DESCRIPTION Increase resistance level Down Decrease resistance level Mode Confirm setting or selection. Hold on pressing for 2 seconds, computer will reboot and start from user Reset setting. Reverse to main menu during presetting workout value or stop mode. Start/ Stop Start or Stop workout.
  • Page 14 OPERATION: 1. POWER ON Plug in power supply, computer will power on and display all segments on LCD for 2 seconds. After 4 minutes without pedaling or pulse input, console will enter into power saving mode. Press any key may wake the console up. 2.
  • Page 15 4. User Program Mode : Preset your own workout profile. Press UP or DOWN to select workout program, choose User and press MODE to enter. Press UP or DOWN to set load level of each column, and press MODE to next one. (Total column = 20) Hold on pressing MODE to finish or quit setting.
  • Page 16 1. This computer require 9V 500ma adaptor. 2. When user stop pedaling for 4 minutes, computer will enter into power save mode, all setting and exercise data will stored until user start exercise again. 3. When computer act abnormal, please plug out the adaptor and plug in again.
