Casall EB600 91003 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Casall EB600
Bike
91003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EB600 91003 and is the answer not in the manual?

Questions and answers

Related Manuals for Casall EB600 91003

Summary of Contents for Casall EB600 91003

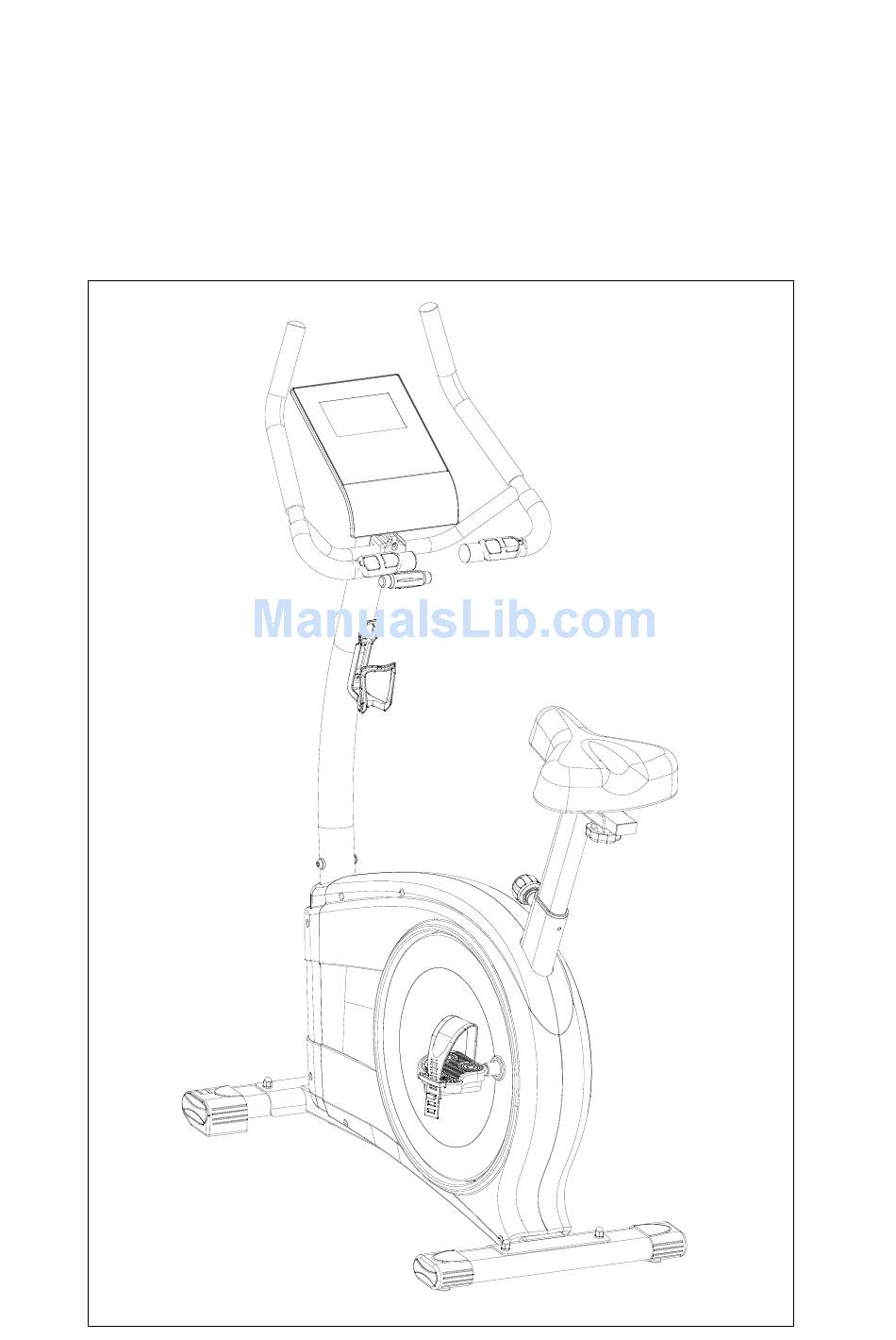

  • Page 1 Casall EB600 Bike 91003...
  • Page 2 Exploration drawing...
  • Page 3 Drawing for assemble...

  • Page 4: Parts List

    PARTS LIST Description Specifications Q'TY COMPUTER & SCREW A,A-1 1PCS HANDLEBAR 1PCS HAND PULSE SET 1SET FOAM GRIP 270Lxφ23x5mm 2PCS FOAM GRIP 360xφ23x5.0m 2PCS CAP FOR HANDBLEBAR 2PCS SCREWS FOR HANDLEBAR M3x20L 2PCS PULSE CABLE 700+700mm 1PCS HANDLEBAR POST 1PCS COMPUTER CABLE (UPPER) 1PCS BOTTLE CAGE...
  • Page 5 SPRING WASHER D-28 2PCS φ6 SCREW FOR MAGNET SYSTEM D-29 2PCS M6xP1.0*16L FLYWHEEL SET E~E-11 1SET FRONT STABILIZER 1PCS REAR STABILIZER 1PCS SEAT POST 1PCS SEAT SLIDER G-1~G-5 1SET SEAT 1PCS PEDAL 1SET IDLER WHEEL.SET I~I-8 1SET METAL COVER 1PCS 4PCS CARRIAGE BOLT M8xP1.25x55L...
  • Page 6 Step 1 Foot Tube Assembly Attach the Front Stabilizer (pt.F-F) to the Main Frame (pt.F-F) using two Domed Nuts (pt.J-1), two Flat Washers (pt.J-3) and two Carriage Bolts (pt.J-2) Attach the Rear Stabilizer (pt.M) to the Main Frame (pt.F-B) using two M8 Domed Nuts (pt.J-1), two Flat Washers (pt.J-3) And two Carriage Bolts (pt.J-2).
  • Page 7 Step 3 --Seat Tube Assembly 1. Assemble the seat (pt.G-6) to the selector rail, position the rail onto the seat post (pt.G) and tighten using the butterfly knob . 2. Insert the seat post (pt.G) in the main frame (pt.D), choose the desired position and tighten the knob.
  • Page 8 Step 4-Handlebar post Assembly 1 Take the Hand Post (pt.C) and connect the Lower Computer Cable (pt.D-1) and the Upper Computer Cable (pt. C-1) 2. Slide the Hand Post (pt.C) into the then fix with four sets of M8 Key Head Bolt (pt.D-2) and Curved Washers (pt.D-3...
  • Page 9 Step 5- Handlebar post Assembly 1. Mount the computer (pt .A) to the hold of the handlebar pole with the enclosed screws (pt .A-2) and connect the computer cables (pt .C-1). 2. Plug the delivered hand-pulse wire for measuring the pulse rate in the socket at the computer.
  • Page 10 Step 6- Handlebar post Assembly 1. Attach the Handlebar (pt.B) to the Front Post (pt.C) using the clamp (pt.J), fix with one Flat Washers (pt.J-6), one Spring Washers (pt.J-5), one Handlebar Fixing Bolt (pt.J-4) and then fix the Rear Cover (pt.J-10) . Screw the Handlebar T-Knob (pt.J-8) by one set of Flat Washer (pt.J-5), Spring Washer (pt.J-6) and one Metal Bush (pt.J-7), 2.

  • Page 11: Display Function

    Monitor manual instruction 【DISPLAY FUNCTION】 TIME : Count up - No preset target, TIME will count up from 00:00 to maximum 99:59 with each increment is 1 second. Count down - If training with preset Time, Time will count down from preset to 00:00.Each preset Increment or decrement is 1 minute between 1:00 to 99:00.

  • Page 12: Programming Mode

    【PROGRAMMING MODE】 USER personal data setting (U1 – U4): 1-1 U1 is blinking, user may turn UP and DOWN to select user 1, user 2 to user 4 1-2 Preset personal data (incl. AGE, WEIGHT, HEIGHT, SEX). And press the MODE for confirmation.

  • Page 13: User Mode

    USER MODE After enter USER mode, the first column of the profile is blinking, user may press UP, DOWN and then press MODE to create his own profile. (from column 1 to column 20) User may hold on pressing MODE button for 2 seconds to quit profile setting. (drawing 4). Each user may have his own user profile.
