USER MANUAL
INOOR BIKE – XTR200
91106

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XTR200 and is the answer not in the manual?

Questions and answers

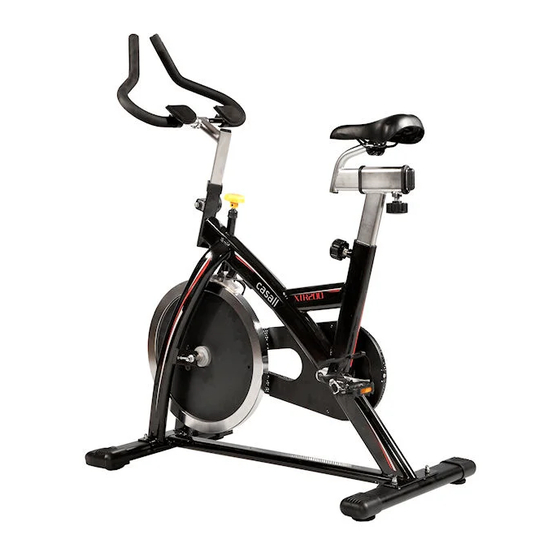

Summary of Contents for Casall XTR200

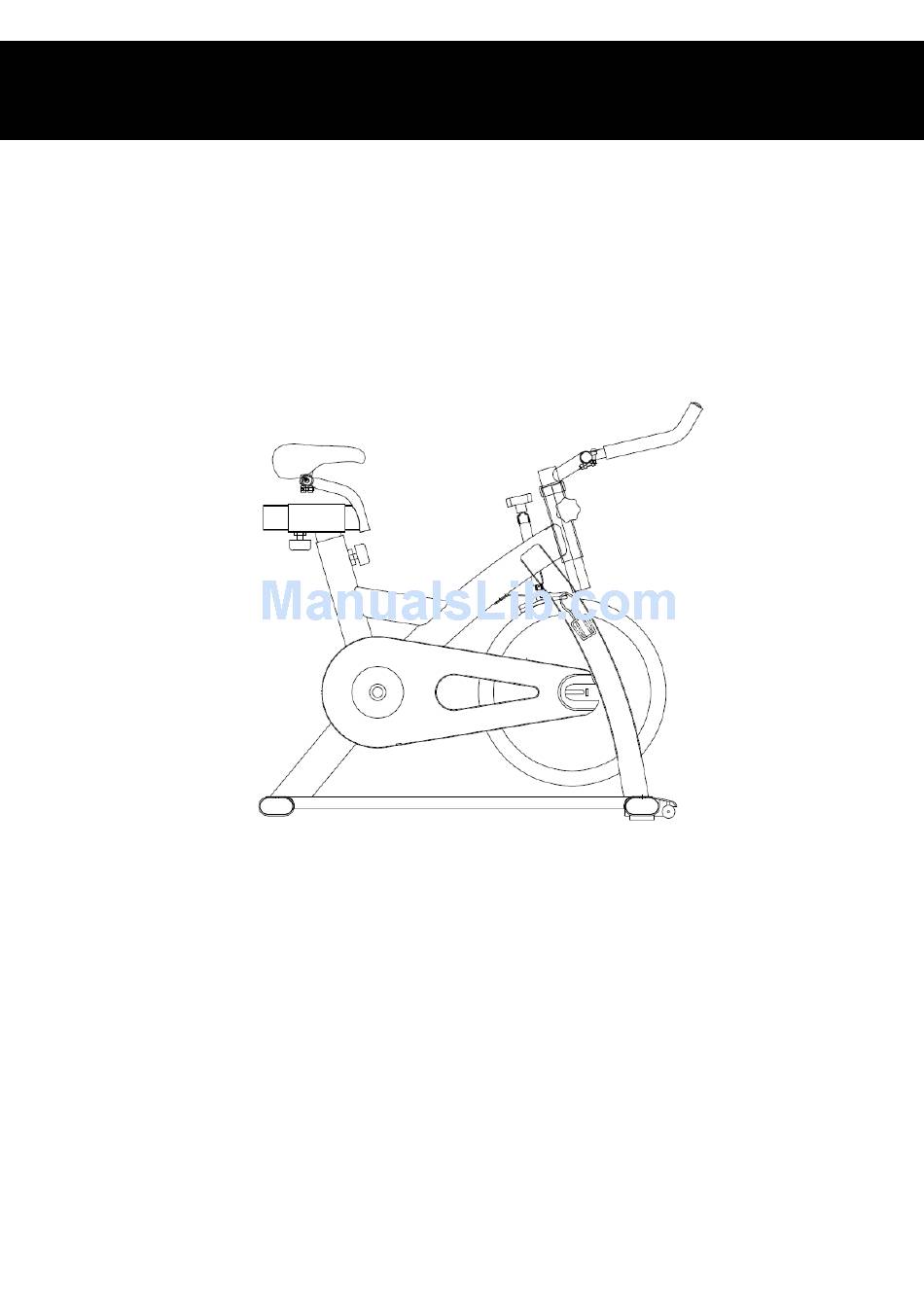

  • Page 1 USER MANUAL INOOR BIKE – XTR200 91106...
  • Page 2 Safety Instructions * Consult your physician before starting with any exercise program to receive advice on the optimal training. * Warning: incorrect/ excessive training can cause health injuries. Stop using the bike when feeling uncomfortable. * Please follow the advice for correct training as detailed in the training instructions. *...
  • Page 3: Assembly Drawing

    Assembly Drawing...
  • Page 4 Assembly Step one Attach the front (16) and rear feet (12) to the frame using the bolts (10), washer (9) and nuts (8). Step two The handlebar post already set up when you received. Attach the handlebar post inserting into the head tube of the frame. Adjust the height and then securely tighten the knob (44) in proper position.
  • Page 5: Exploded Drawing

    Exploded Drawing...
  • Page 6 Part list No. Name No. Name Unit Unit Saddle PC 31 Handlebar stem end cap Seat slider PC 32 Crank bolt Stem Cap PC 33 Flywheel security nut Seat tower rubber cap PC 34 Flywheel security washer Frame PC 35 Brake system Chain PC 36 Flywheel adjuster bolt Crank arm set...
  • Page 7: Instruction Use

    Instruction Use 1) The model bike has a fixed wheel driven flywheel and should only be used under professional supervision. 2) Installation – it is important that the bike is correctly assembled and we recommend that suitably qualified personnel carry out installation and assembly. 3) Handlebar and seat adjustment.
  • Page 8: Maintenance Chart

    Maintenance Chart DESCRIPTION Daily Weekly Monthly Quarterly Annually Wipe machine down Spray with WD40 or similar oil on frame Visual check Check security of handlebar post &seat clamp Check security of saddle Remove handlebar stem and clean tube Remove seat and clean tube Check brake pads for wear- align Check brake adjustment...
  • Page 9: Limited Warranty

    Limited Warranty This product carries the following guarantee against manufacturing defects: * Frame is warranted for 2 years from the date of purchase. * Components are warranted for 1 year. * Warranty is only valid for the original purchaser. * Labor and freight charges are not included. * Normal wear, neglect, abuse, accidents, improper assembly or maintenance, or the installation of parts or accessories not compatible with the original intended use of the bike, as sold, are...
