Casall BT10.5 91006 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

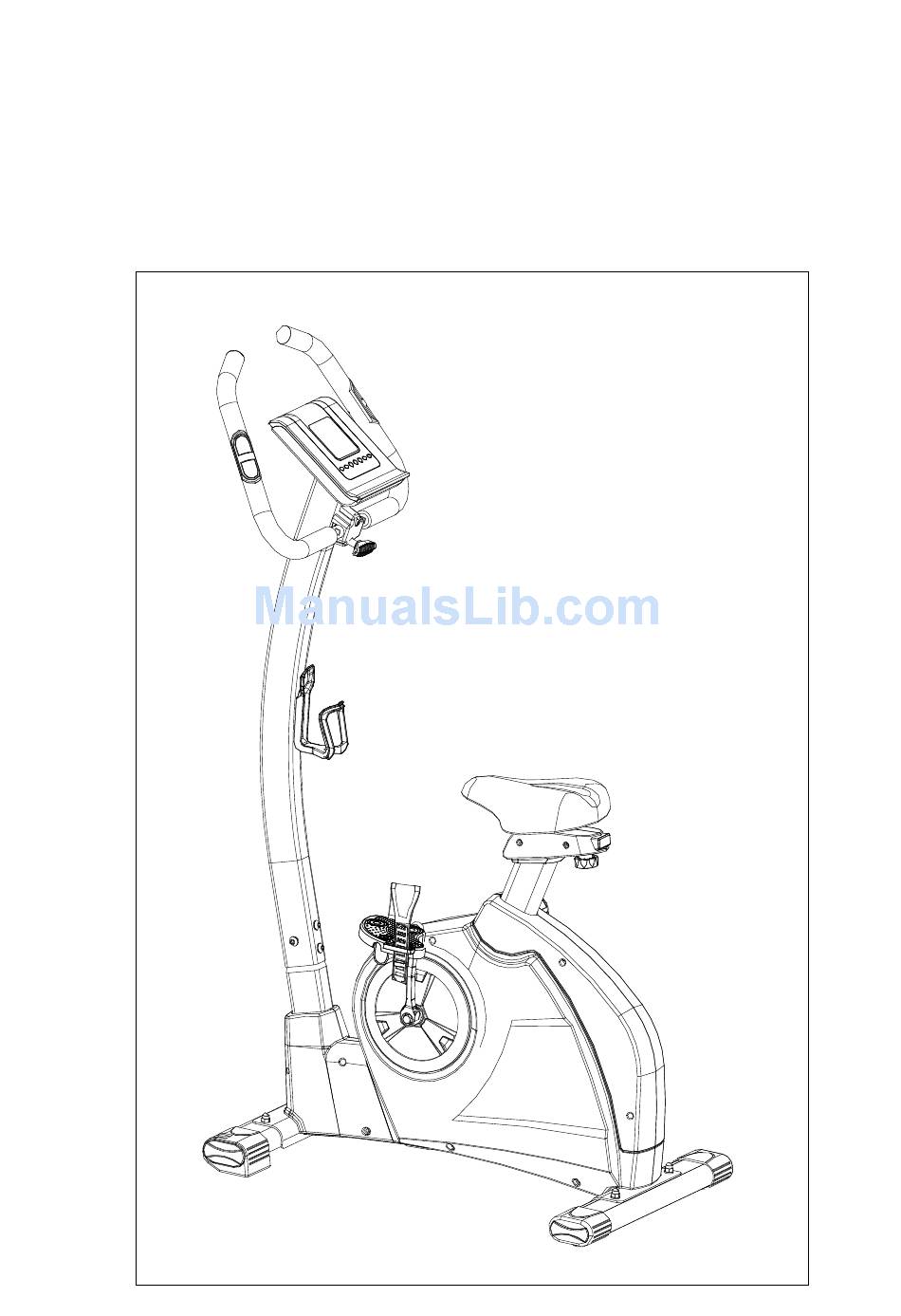

USER MANUAL BT10.5
91006
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the BT10.5 91006 and is the answer not in the manual?

Questions and answers

Related Manuals for Casall BT10.5 91006

Summary of Contents for Casall BT10.5 91006

  • Page 1 USER MANUAL BT10.5 91006...
  • Page 2 BT10.5 K-5 Allen Bolt M7*P1.0*30MM (1) NO.K-1 Metal cover (1) NO.K-7 T-shape knob K-10 Carriage Bolt M8*P1.25*55MM (4) M7*65L(1) NO.K-6 Bushing NO.K-9 Acorn Nut for M8 Bolt (4) Box Spanner(1) NO.K-4 Allen Key(1) Screwdriver (1) Spring Washer (MM)
  • Page 3 Exploded view...
  • Page 4 PARTS LIST AND TOOLS Description Q’ ty Computer 1PCS Screw M5X10L 4PCS Handlebar Set 1SET Cap for handlebar 2PCS Hand Pulse 1SET Screw M3.5x20L 2PCS Pulse Wire 1PCS Foam grip 1PCS Handlebar post set 1SET Upper cable wire 1PCS Screw M5xP0.8x20L 2PCS Main Frame 1SET...
  • Page 5 D-23 Wave washerφ 17.5xφ 25x0.3t 1PCS D-24 Flat washerφ 4*φ 10*1T 10PCS D-25 Adaptor 1PCS D-26 DC wire 1PCS D-27 Spring for idler 1PCS D-29 Bottle holder 1PCS E~E-11 Flywheel Set 1SET F~F-8 Idler set 1SET Bushingφ 22xφ 17x7.5mmL 1PCS Pulley 1PCS Shift...
  • Page 6 Flat washerφ 7xφ 12x1t 2PCS Spring washerφ 7x2t 2PCS Screw M7xP1.0x30L 1PCS Bushingφ 7xφ 12x40mmL 1PCS Screw M7xP1.0x65L 1PCS Flat washer φ 8*φ 19*2T 4PCS Nut M8 4PCS K-10 Screw M8xP1.25x55L 4PCS Gear box set 1SET Screw M8*22L 1PCS Flat washer φ 8*φ 19*2T 2PCS Screw M6xP1.0*16L 2PCS...
  • Page 7 ASSEMBLY INSTRUCTIONS Stage#1 1. Put on front stabilizer (H) and rear stabilizer (I) to the mainframe assembly. Be noted: the front stabilizer has transportation wheel. Use carriage bolts(K-10), curve washer (K-8) and crown nut (K-9) to fix the stabilizers tightly. 2.
  • Page 8 Stage#2 1. Connect the upper and lower table together. 2. Fix the handlebar post to the main frame with Screws (D-3) and washer (D-12).
  • Page 9 Stage#3 1. Assemble the handlebar (B) to the bracket on the handlebar post with handlebar clamp (K-1), spring washer (K-3), washer (K-4) and screw (K-5). 2. Fix the spring washer (K-3), washer (K-4) and metal bush (K-6) into the handlebar clamp. Insert the plastic cover to the handlebar clamp.
  • Page 10 Stage#4 Fasten the saddle (J-11) to the seat post (J). And fix the seat post to the main frame with seat knob (J-2).
  • Page 11 Stage#5 1. Connect the pulse cable coming out of the handlebar and the RPM sensor cable to the computer (A). Place the computer to the computer mast and fasten with Screws (A-1). Then the assembly is done. Fix the handlebar to the console mast with attached hardware. Have T knob (J) to go through bushing (J-4), handlebar cover (J-5), flat washer (J-6) and spring washer (J-7) to fix.

  • Page 12: Operation Procedure

    BUTTON FUNCTION: In stop mode, the mode is to confirm all exercise data setting, and enter into program. MODE/ENTER In stop mode, press the button back to main menu. RESET To start or stop exercise. START/STOP To test hear rate recovery status. RECOVERY To select training mode and adjust function value up.

  • Page 13: User Program

    4. Quick Start and Manual : Before exercise in Manual mode, user my set up TIME, DISTANCE, CALORIES and PULSE target. After power on, user may press START/STOP button to start exercise in MANUAL immediately without any setting. Level can be adjusted during exercise by press UP or DOWN. 5.
  • Page 14 10-4 LCD will display BODY FAT advice symbol, BODY FAT percentage, BMI for 30 seconds. NOTE: 1. This computer require 9V, 0.5mA adaptor. 2. When user stop pedaling for 4 minutes, computer will enter into power save mode, all setting and exercise data will stored until user start exercise again.
