7. Setting Up
Walk Test Procedure
• The adjustable LUX and TIME setting controls are factory set to 'Walk Test'
mode i.e. LUX set fully clockwise to full daylight (Sun symbol) and the TIME set
fully anti-clockwise to 'T' (Test mode)

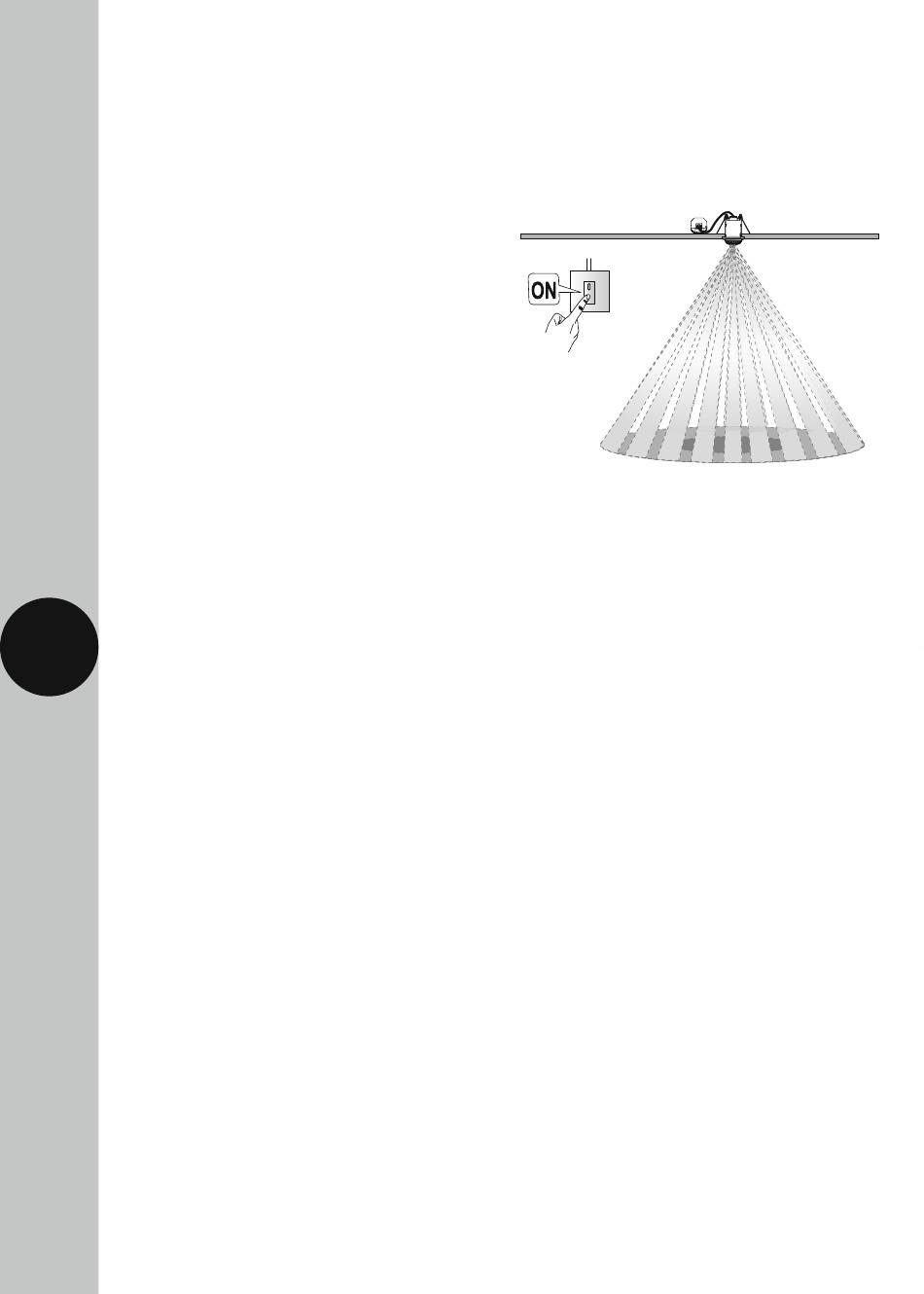

• Turn the power to the unit ON.
The lamp will immediately illuminate
as the unit goes through its 'warm-up'
period. After approximately 30 seconds
to 1 minute the lamp will extinguish.
This indicates the unit is wired
correctly and the unit is in Test Mode.
• Try to remain outside the detection 'zone' during the warm-up period.
• The unit will now operate during daytime as well as at night, illuminating
the lamp for approx. 2 seconds each time. This allows testing to be carried
out to establish whether the sensor is covering the required 'zone'.
7
• Walk around the sensor to establish the detection 'zone'.
• The sensor will detect within an approximately 8 metre diameter circle
from the centre of the sensor location with a 2.5m ceiling.
• As you cross a detection 'zone' the lamp will illuminate. Now stand still
until the lamp extinguishes (this should take approx. 2 seconds).
• Start moving again after 5 seconds. As you continue to cross the detection
'zone' the lamp will illuminate.
• Repeat the above, walking at various distances and angles to the unit.
This will help you to confirm the detection pattern.
Setting Up for Automatic Operation
• When walk tests are complete, the unit can be adjusted for
automatic operation (Auto Mode).
Note: there is a flat headed screwdriver included in the accessory pack
which you can use to make the adjustments.
