Timeguard PDFMMINIL Installation & Operating Instructions Manual page 5

5.2 An isolating switch should be
installed to enable the power
to be switched ON and OFF for
maintenance purposes and to
activate the manual override function.

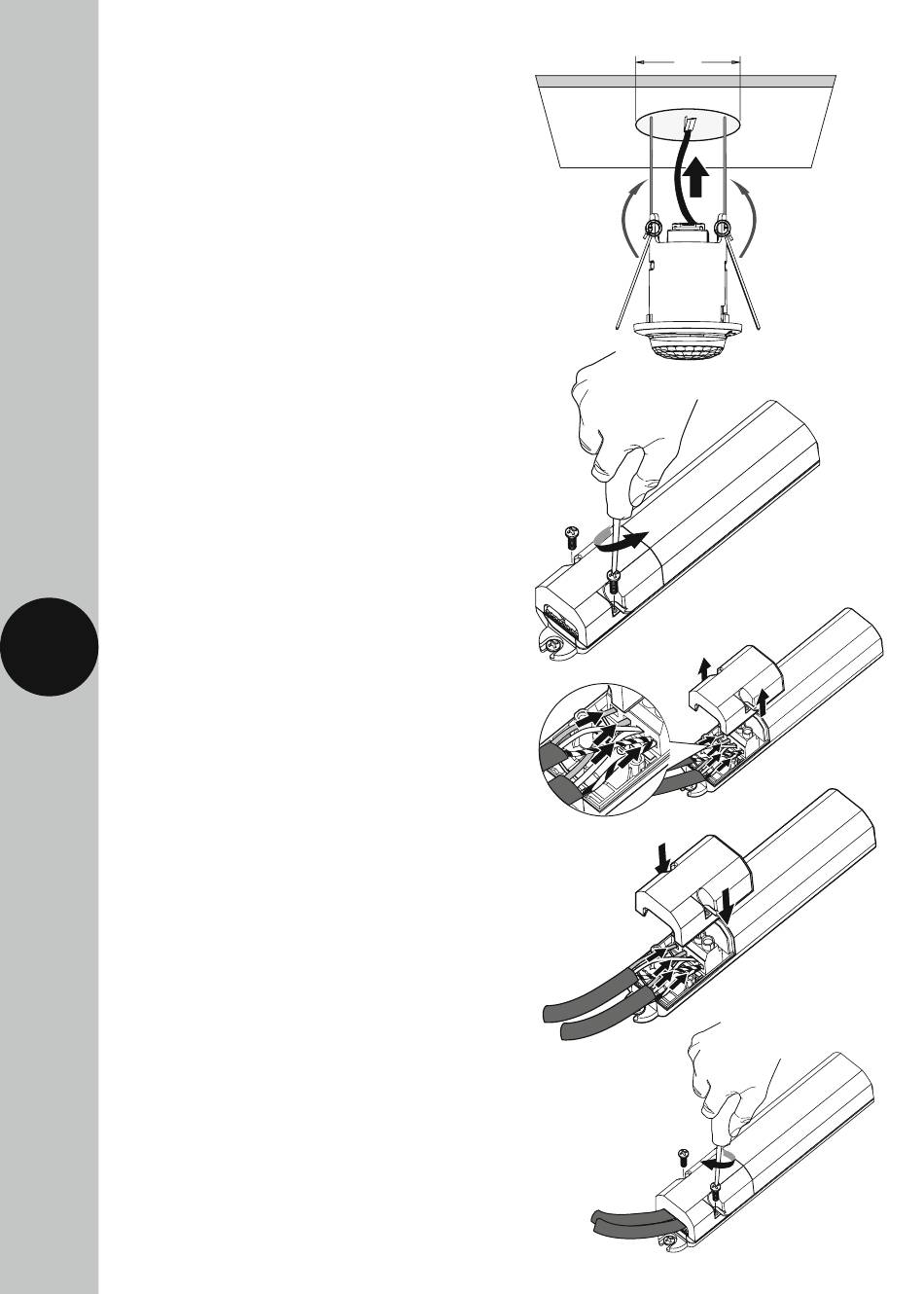

5.3 Mark the position of the 40mm
diameter locating hole centre,
taking care to avoid ceiling joists
and other obstructions within
the 40mm diameter.
5.4 Use a pad saw or suitable hole cutter
to cut out a 40mm diameter hole.
5.5 Pass the 230V 50Hz mains supply
and load cables through the hole
and prepare for termination.
5.6 Undo the 2 fixing screw located
on the far end of the power box
4
and remove the terminal block
cover (opposite side to the RJ11
connection socket).
5.7 Terminate the cables into the
terminal block ensuring correct
polarity is observed and that
all bare conductors are sleeved
(See section 6. Connection Diagram).
5.8 Re-attach the terminal block cover.
5.9 Use the 2 fixing screw to secure
into place.
Ø = 40mm
