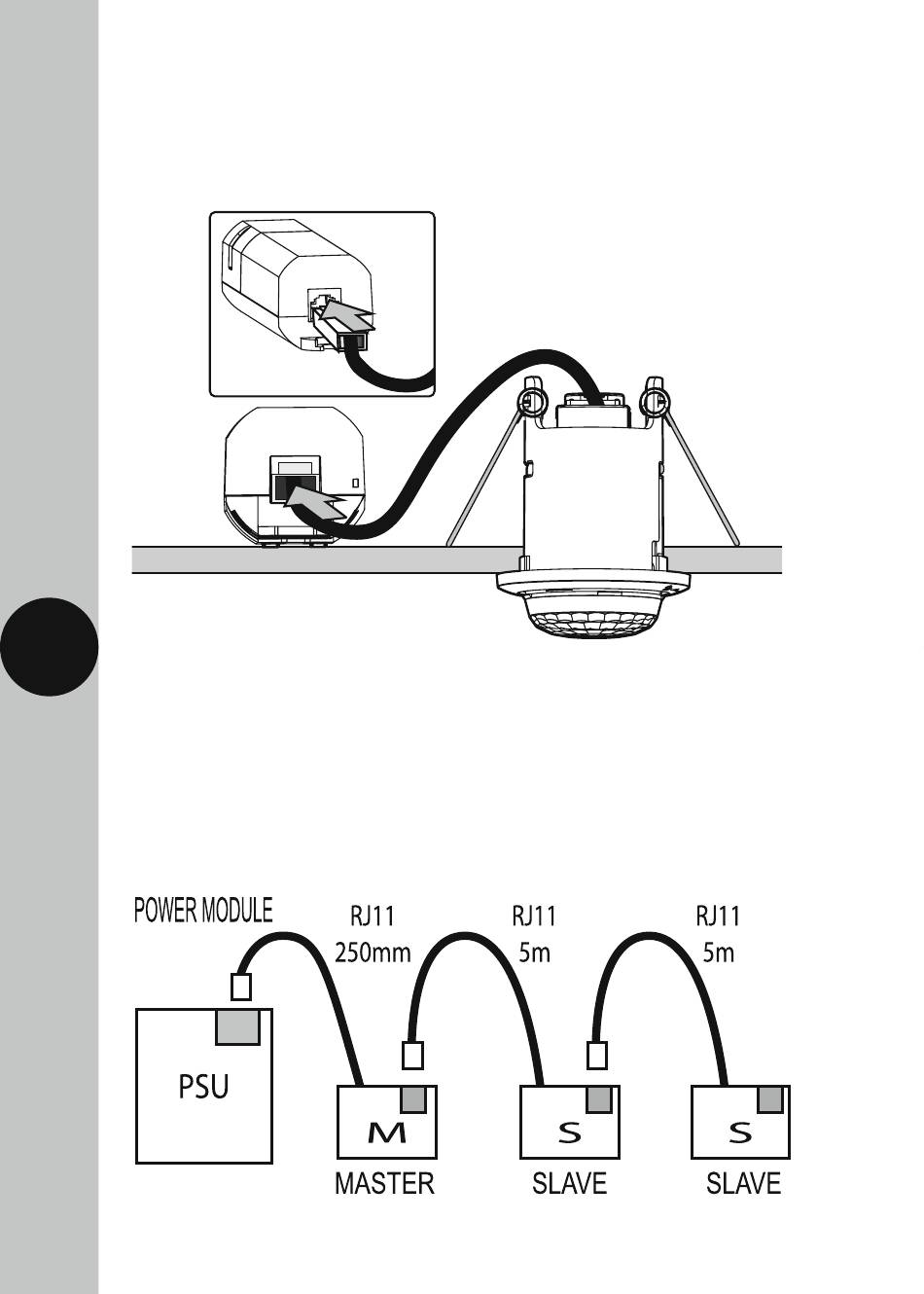

5.10 Insert the power box through the 40mm hole into the ceiling first, followed
by the RJ11 cable from the master PIR sensor. Connect the RJ11 cable into
the socket on the power box. Fix the master PIR sensor into position using
the metal springs.
5
Note: A maximum of 5 PDFMMINILS Slave PIR sensors can be linked to the
PDFMMINIL Master PIR sensor, to enable any detector to turn ON all the lights
connected (The total load must not exceed the lamp rating of a single
PDFMMINIL unit).
Example:
