Dynacord PROMATRIX System Reference Manual page 74

DEVICE DESCRIPTIONS
RS
485
CN4
CN12 CN7
24V-
DCS 412
DCS 412
Maximally 5 DCS 412 modules can be cascaded.
Using the insertion bridge CN9, select the connection
of the supply voltage (CN8/CN10).
CN6
+24V -24V
OUT OUT
5-62
DCS 401
CN8 CN9
24V-
CN10
CN9
24V-
CN10
CN9
OUTPUT
CN7
5
Dimensions of the DCS 412 module
Size in mm
Module height 17 mm
The distance between the soldered
surface and an electrical conductive
mounting base has to be at least 5 mm
∅ 4,2

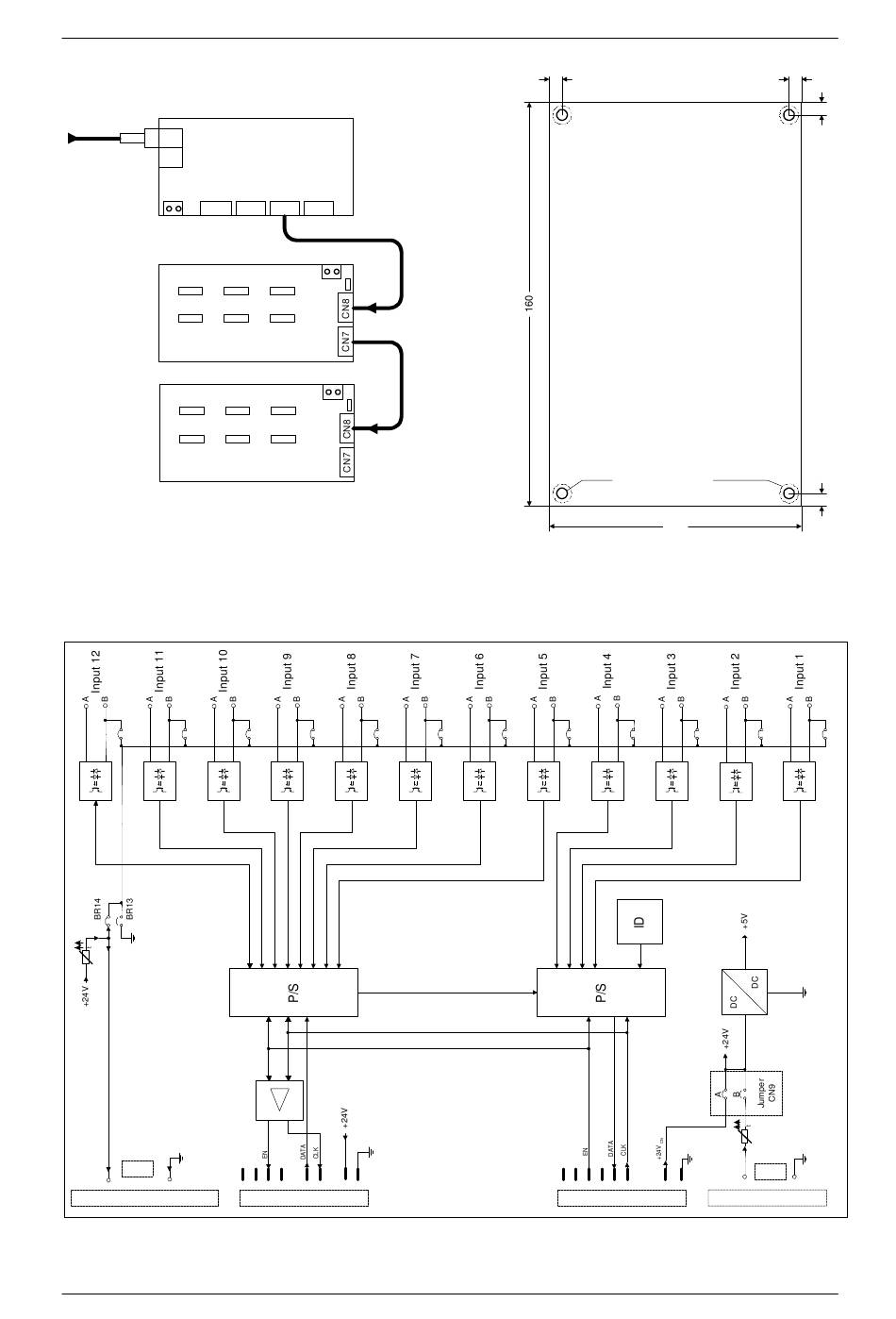

BLOCK DIAGRAM
DCS 412
PROMATRIX System User Handbook 1.1
Mounting insulators
max ∅ 7,5
100
INPUT +24V
CN8
KL
5
5
5
CN10
-24V
KL
