5.1.2 Front View

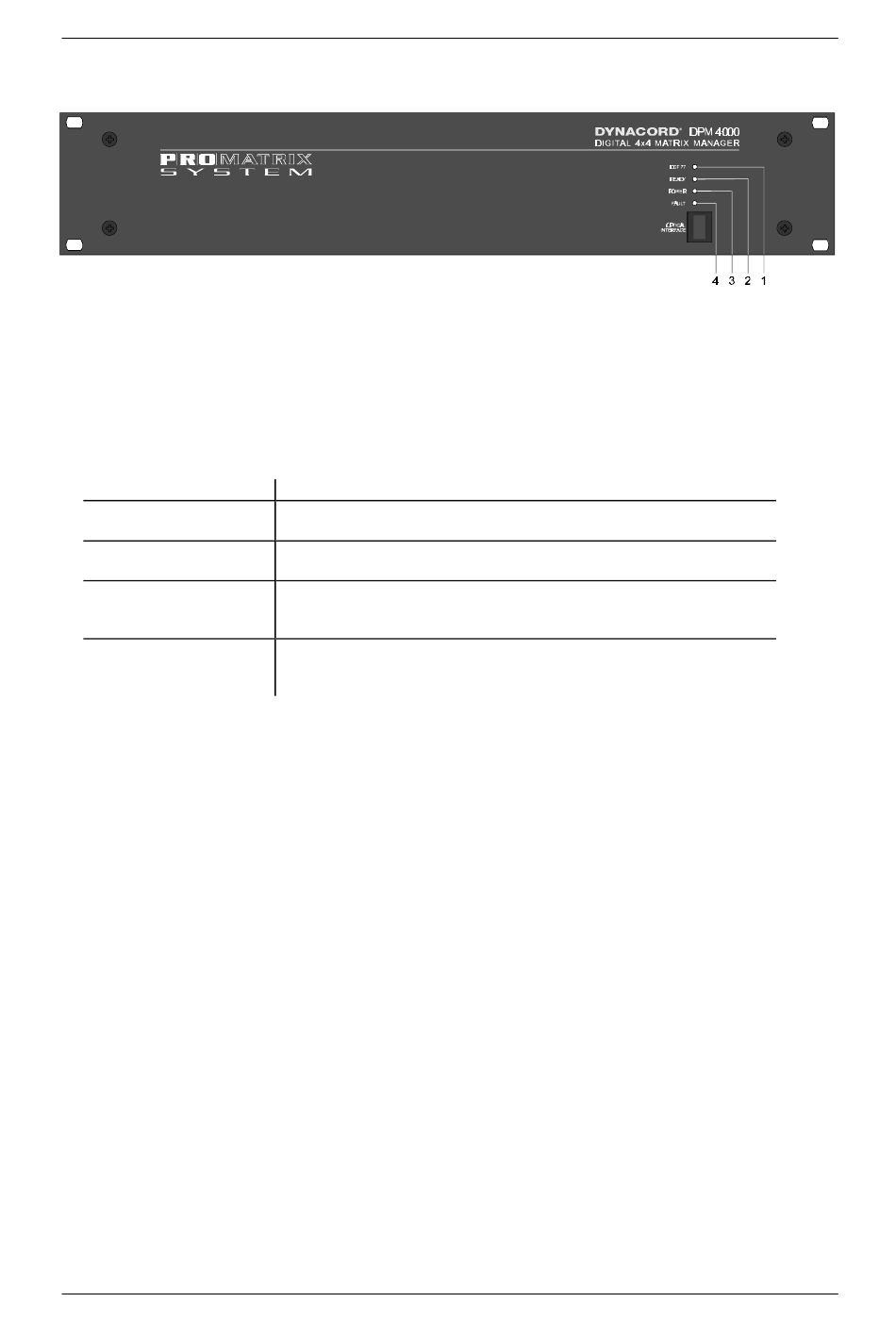

figure 5.2 DPM 4000 front view
The following controls and indicators are located on the DPM 4000's front panel:
1. LED DCF 77
This LED indicates the operation mode of the DCF 77 radio-controlled-signal receiver. The following table
shows the different indications and explains their corresponding status:
LED indication
OFF
ON
Blinking, one cycle per
second
Blinking, fast
2. LED READY
This LED indicates the operation mode of the PROMATRIX System. After switching the power on, the READY
LED blinks while the system boots. Depending on the complexity of the installation blinking can take several
seconds. After successful initialization, the LED lights, signaling that the system is ready for operation.
Whenever erroneous operation – either in the DPM 4000 or in one of the connected components – is
detected, the LED goes out indicating that a system error occurred. When the system power is OFF, the
READY LED is OFF as well.

3. LED POWER

This LED lights as soon as a power source (24 V =, power supply or battery) is connected to the DPM 4000.
The LED does not light when the DPM 4000's power supply is disconnected, switched off or fails.
4. LED FAULT
This LED lights during a reset or when an internal watchdog error is being detected within the DPM 4000. It
also indicates erroneous operation of external system components (power amplifiers, paging stations, relay
boards, ...). The LED is connected to the READY relay on the rear of the appliance, which allows remote
indication of system errors.
PROMATRIX System User Handbook 1.1
status
No radio control signal detected or no DCF 77 antenna connected. The
system clock is quartz-synchronized.
The radio control signal is received. The system clock is synchronized
to the DCF 77 signal.
The radio control signal is present and the system clock is being
synchronized. This procedure can take up to 2 minutes. After
synchronization is complete, the DCF 77 LED light continuously.
The radio control signal is detected but its reception is jammed. Re-
adjusting the DCF 77 antenna or choosing a location with improved
reception is recommended.
