DEVICE DESCRIPTIONS
5. MONITOR OUTPUT socket
The audio signal of the integrated monitor amplifier is outputted via this connector. In standard configuration,
this output is set for the connection of headphones. It is also possible to directly connect a loudspeaker with
minimum load impedance of 8 Ohms. To achieve higher output capacity it is possible to set the internal
monitor amplifier to bridged operation. Thus some internal jumpers have to be re-set as shown in the figure
below.
jumper-setting for headphones operation
Jumper-Einstellung für Kopfhörerbetrieb
C142
JS101
JP101
3 2 1
JP103
C141
3 2 1
R122
R121
C115
R120
JP102
C113
3 2 1
R118
R117
C110
R110
R114

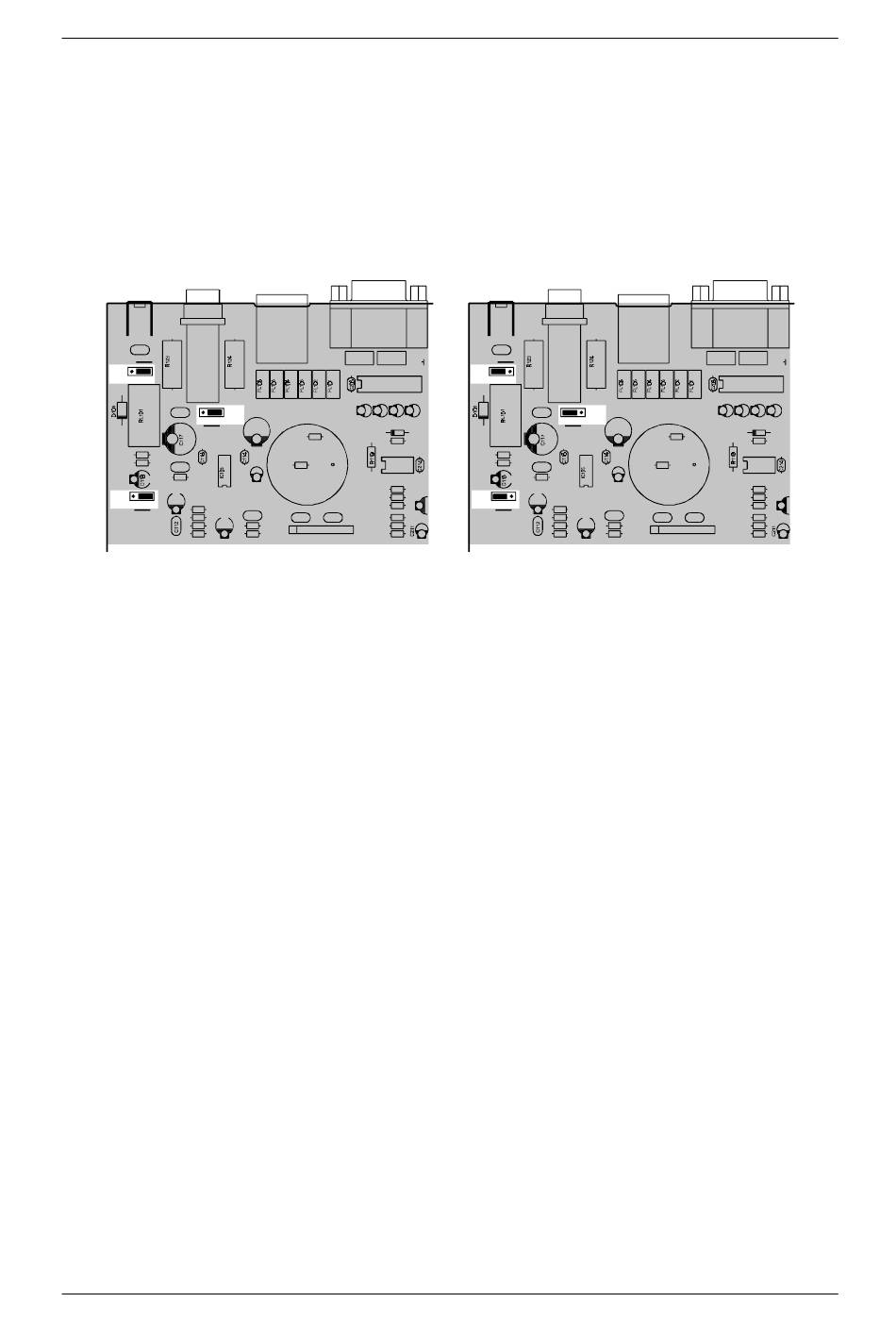

figure 5.6 adjusting the monitor amplifier's output power via jumpers on the printed board assembly 80430
6. Extension slot
The DPM 4000 extension slot allows retrofitting additional serial ports, which can be used for the inter-
communication amongst DPM 4000 managers or to connect additional external devices. For detailed
information, please refer to the owner's manuals of the individual extensions or modules.
7. Control Module Slot
Slot 5 is a control slot, which can be equipped with control modules for general control and query purposes.
Control modules provide different kinds of control inputs and outputs. For detailed description, please refer to
the following chapters. The DPM 4000 is shipped with one 8 I/O control module installed.
8. Slots for Audio Output Modules
The slots 3 and 4 are the DPM 4000's audio output slots providing two audio outputs per slot. Each slot can
be equipped with a 2-channel audio output module. The DPM 4000 is shipped with a 2-channel audio output
module installed in slot 3; described in detail at a later stage. Slot 4 is empty.
