Pin-Assignment Of RJ-45 Connectors:
The floating control inputs and outputs provide 2 adjacent contacts, each. The following diagram shows the
assignment of RJ-45 contacts to inputs / outputs.
figure 5.32
Block diagram:
IN1
IN2
IN3
IN4
IN5
IN6
IN7
IN8
SLAVE
CLOCK
OUT2
OUT3
OUT4
OUT5
OUT6
OUT7
OUT8
figure 5.33
PROMATRIX System User Handbook 1.1
slave clocks
pin-assignment of the IN / OUT connectors
INPUT
REGISTER
OUTPUT
REGISTER

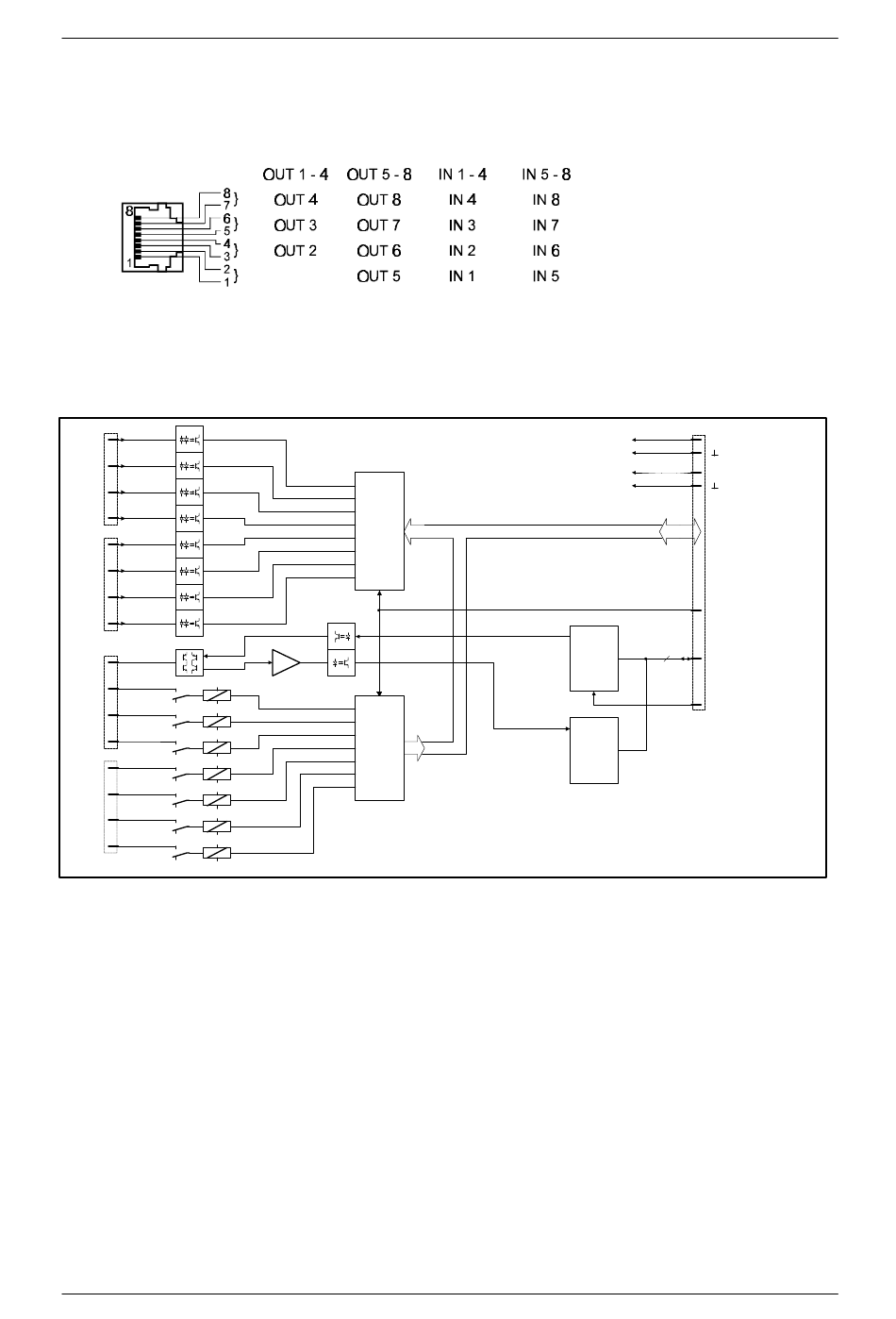

block diagram of the 8 I/O control module
DEVICE DESCRIPTIONS
+U24
+5V
DATA BUS
D8 - D15
CONTROL
BOARD
4
SPI
CONTROL
RES
BOARD
STATUS
& ID
DIGITAL
SUPPLY
5-27
