I N S T A L L A T I O N M A N U A L
STEP EIGHT: Attach the Entry Section & Ladder to the Flume
Utilizing hardware kit XS-102-SS, thread the (4) 3/8" x 2.5" all-threads into the embedded
nuts in the entry section flange. The all-treads will thread in about 3/4" with approximately
1-3/4" protruding. (See Fig. 17)

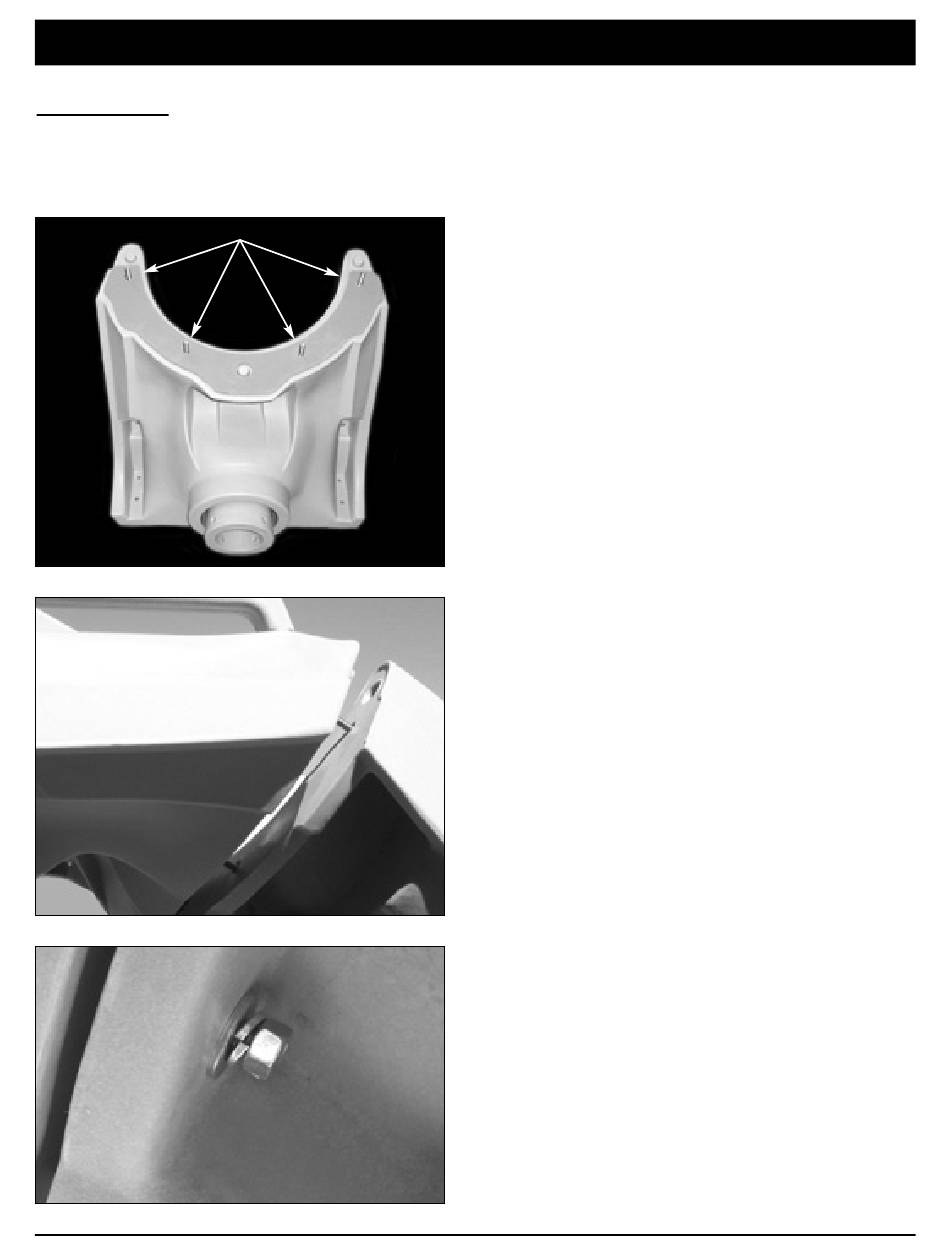

Fig. 17
Fig. 18
Fig. 19
XS-IM Rev. 7/08 (SBK-XS INSTALL)
X - S T R E A M ™ S L I D E
TIP: Hand tighten the all-threads into the
entry section flange only. Do not use any
mechanical means such as a wrench or
pliers to tighten the all-threads.
With two people, stand the assembled Flume
upright and balance on the two legs. Lean
the Ladder & Entry Section against the Upper
Flume Section. Align the 4 all-threads in the
entry section with the 4 holes in the Upper
Flume Section and gently push them through.
Place a 3/8" flat washer, then lock washer
and then a 3/8" nut on each all-thread.
Ensure a smooth even alignment of the sliding
surface and tighten the nuts in an alternating
pattern until all the nuts are uniformly tight.
Do not over tighten.
14
