STEP THREE: Attach the Handrails to the Ladder and Entry Section - CONT.

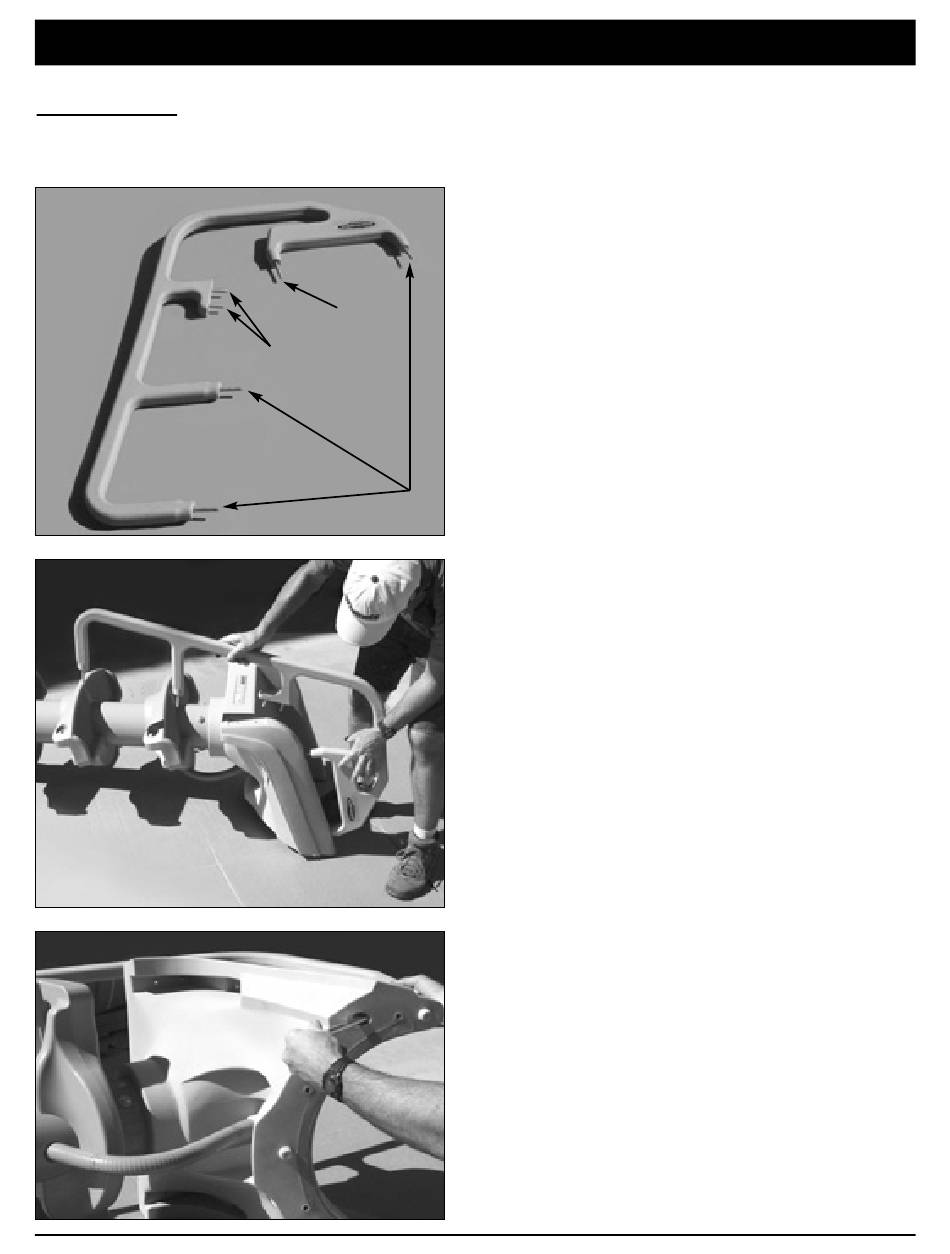

Insert the correct length of all-thread into the nuts embedded in the handrails then attach
the handrails as illustrated. (See Fig. 4, 5, 6)
Fig. 4
Fig. 5
Fig. 6
XS-IM Rev. 7/08 (SBK-XS INSTALL)
3"x5/16"
2"x5/16"
2-1/2"x5/16"
X - S T R E A M ™ S L I D E
Hand tighten all-thread into each of the 6
locations on the handrails. Ensure correct
length of all thread is used at each location.
1 - 3"x5/16" all-thread
2 - 2"x5/16" all-thread
3 - 2-1/2"x5/16" all-thread
Make sure to use provided anti-seize on the
all-thread before inserting into the embedded
nuts.
Insert handrail into the top section first as
illustrated. Push or pull the handrail apart
until the all-threads pass through the 6
holes.
Place a flange nut into a socket with an
extension and slip it into this hole.
tighten flange nut onto the all-thread.
At this location only a flange nut is required.
No flat washer or rubber cap is needed.
Make sure to use the provided anti-seize
on the flange nut threads before attaching
to the all-thread.
