RECOMMENDATIONS FOR ADJUSTMENTS
Important
Before making any type of adjustment, acti-
vate all the safety devices provided and de-
cide whether staff at work and those in the
vicinity should be informed.

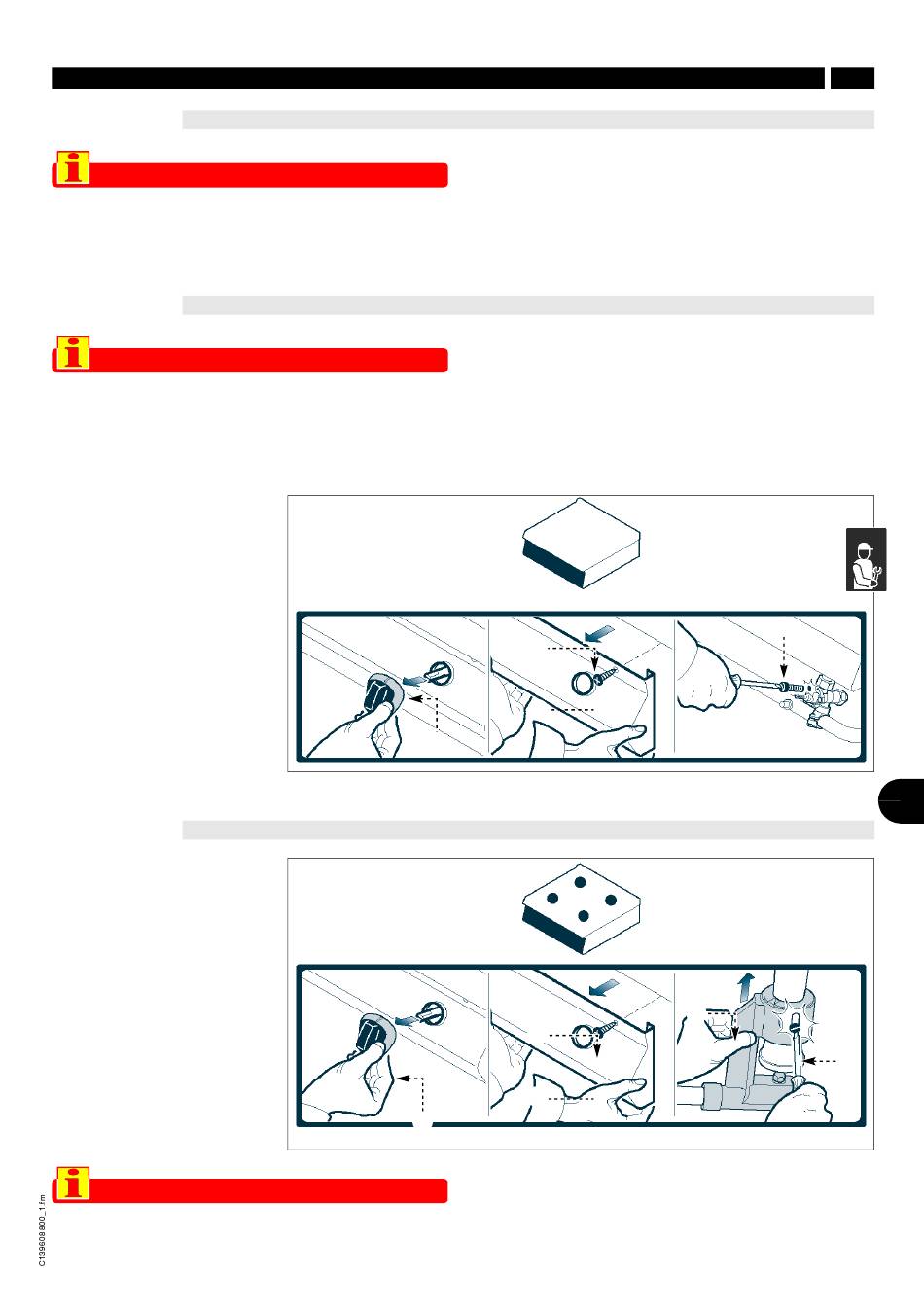

ADJUSTING GAS CONTROL VALVE MINIMUM SETTING
Important
This adjustment is only required if the type of
gas to be connected is different from that
used for testing after the conversion proce-
dure has been carried out (see page 11).
To carry out this operation, pro-
ceed as follows.
1 - Turn off the gas supply
tap.
2 - Pull off the knobs (A).
3 - Undo the screws (B) and re-
move the control panel (C).
4 - Remove the injector (D)
and replace it with the one
suitable for the type of gas
in use (see table at back of
manual).
N.B.: after making the setting,
seal the screw with paint.
5 - Replace the control panel
(C) and the knobs (A) on completion of the operation.
ADJUSTING TOP BURNER PRIMARY AIR
To carry out this operation,
proceed as follows.
1 - Turn off the gas supply
tap.
2 - Pull off the knob (A).
3 - Undo the screws (B) and re-
move the control panel (C).
4 - Undo the screw (D) and
lift the burner support (E)
as far as it will go.
5 - Tighten the screw (D)
and restore the initial
conditions when the op-
eration is complete
Important
Do not adjust primary air settings on U-LPG
appliances.

ADJUSTMENTS

In particular, turn off the gas supply tap and
prevent access to all devices which might
cause unexpected health and safety hazards
if turned on.
Before making this adjustment, check that
the gas supply pressure is the same as the
rated pressure for the type of gas in use (see
table at back of manual).
A
A
- 13 -
B
C
E
B
C
8
D
IT
IT
