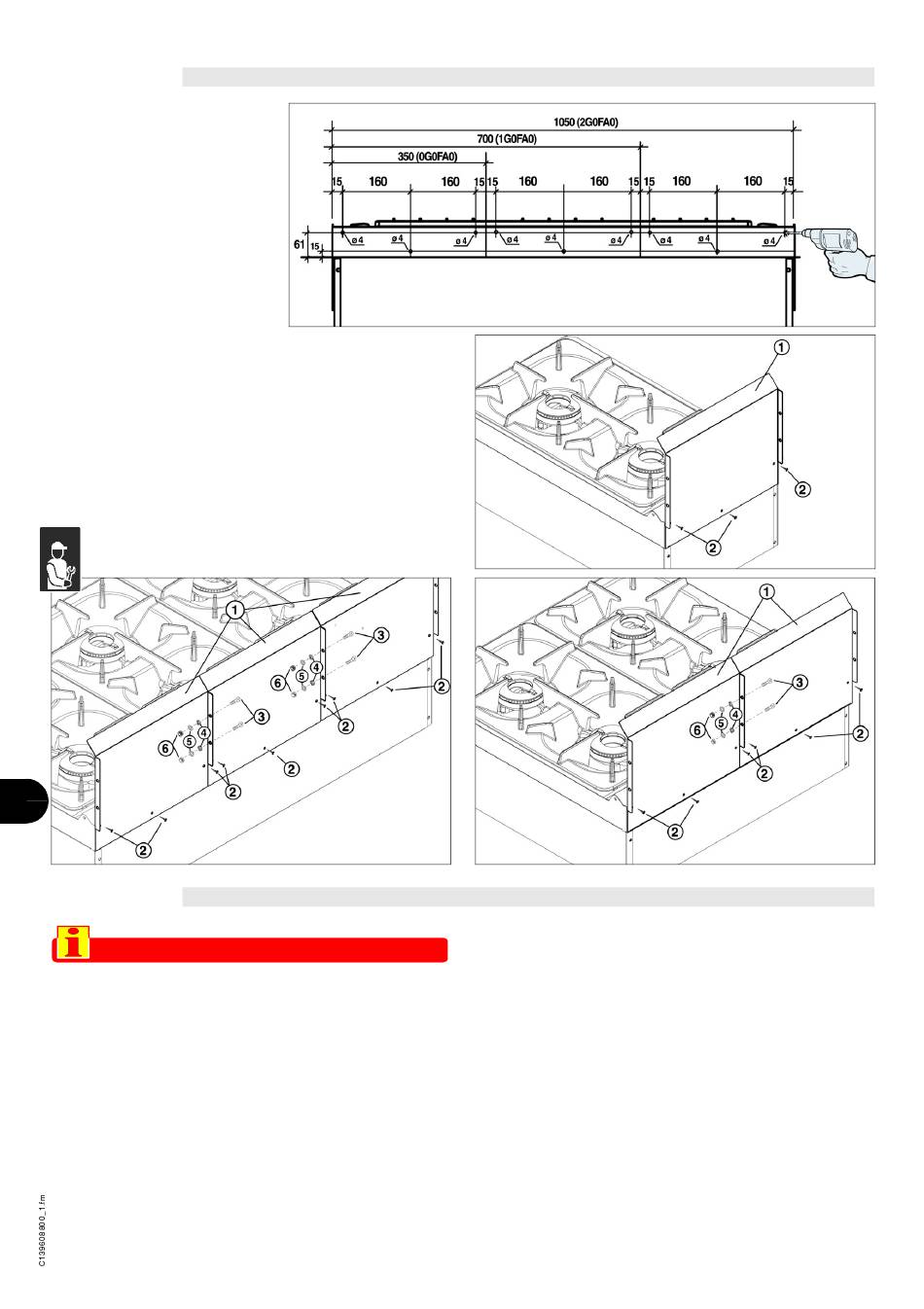

In order to fix the heat shields 1
( see fig.2) see the following in-
structions:
1 - Drill holes as shown in
Fig.1
2a - Screw down the tree screws 2 (see Fig. 2).
2b - Screw down the six screws 2
2c - Screw down the nine screws 2 (see Fig. 4).
3b - Screw down the two screws 3 using the
washer 4 , washer 5 and nuts 6 (see Fig. 3).
3c - Screw down the four screws 3 using the
washer 4, washer 5 and nuts 6 (see Fig. 4).
IT
AUS
DE
FR
Important
ES
Before it is put into service, the system must
be tested to check the operating conditions of
every single
malfunctions. in this stage, it is important to
check that all healt and safety requiremants
have beeen complied with in full.
To test the system, make the following checks:
1 - turn on the gas supply tap and check that the con-
nections are right;
2 - check that the mains gas is the same as that used
for commissioning of the appliance, and carry out
HEAT SHIELD INSTALLATION
(see Fig. 3).
TESTING OF THE APPLIANCE
component and identify any
FIG. 1
2G0FA0
FIG. 4
the conversion procedure if necessary (see
pag.11);
3 - check that the burner is switching on correctly and
its combustion;
4 - check that the safety thermocouple is working
correctly;
5 - check that there are no gas leaks;
6 - check that the nameplates specify the correct gas
for the country of use.
After testing, if necessary instruct the user in all the
skills necessary for putting the appliance into opera-
tion in conditions of safety, in accordance with legal
requirements.
- 12 -
0G0FA0
FIG. 2
1G0FA0
FIG. 3
