b. Click "Start" button and monitor CDR lock status, number of bits tested and Bit Error Rate (BER)
c. Test is considered pass when CDR is locked and BER result is zero
d. Test run is continuous. Click "Stop" and then click "Reset" to stop test.
7. Procedure to test External On Board Loopback with (FMC Loopback Card plugged on board)
a. Set Loopback Mode to "Off" as shown in Figure 8

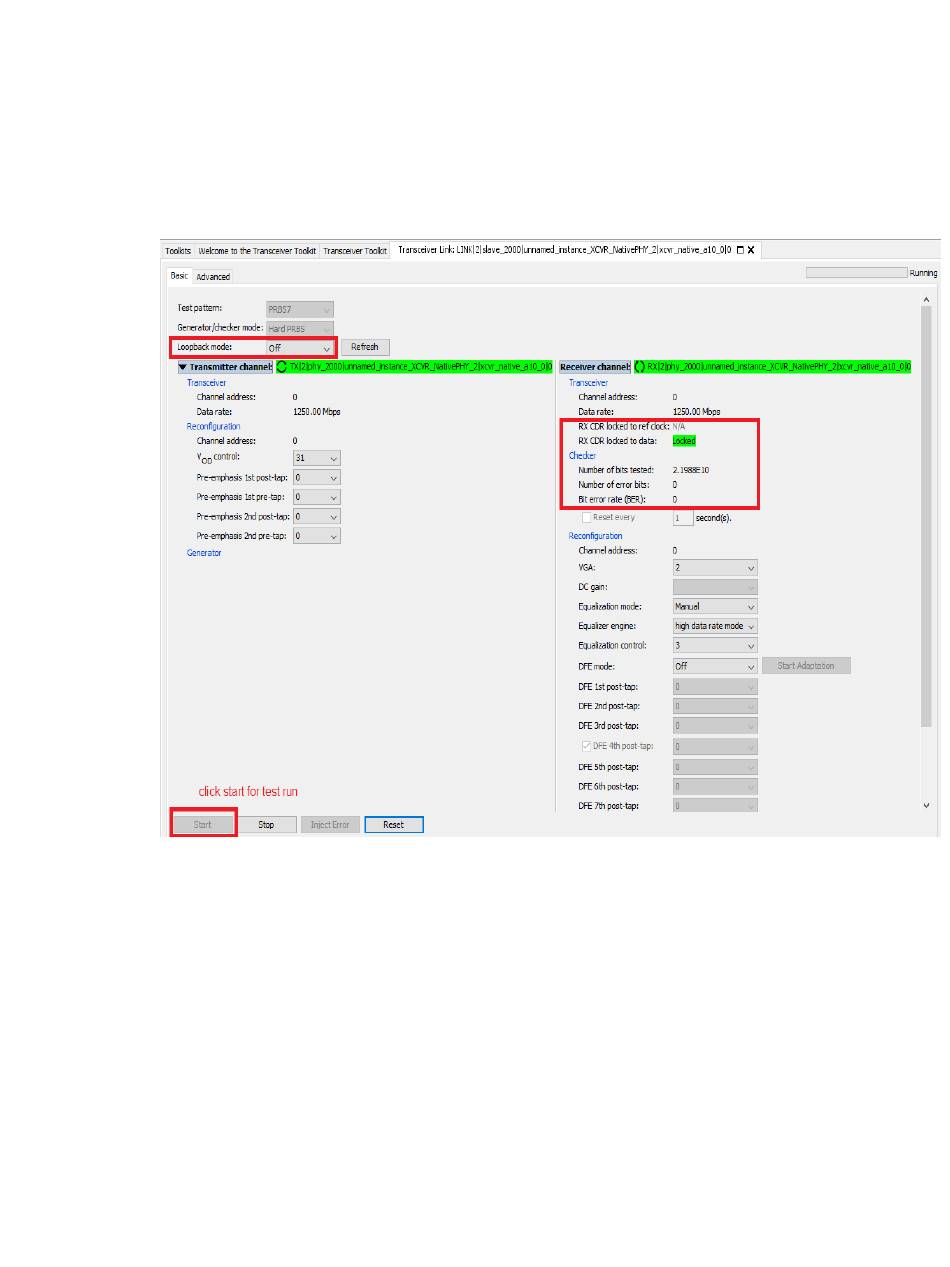

Figure 8. Passing test run with External On Board Loopback Mode
b. Click "Start" button and monitor CDR lock status, number of bits tested and Bit Error Rate (BER)
c. Test is considered pass when CDR is locked and BER result is zero
d. Test run is continuous. Click "Stop" and then click "Reset" to stop test.
