4. Only execute step 4 if your C10 GX Development Kit Board belongs to 1 prototype build with board serial
st
number within 0000001-0000030 else skip to step 5. For 1 prototype board, by default after power up
the development kit board, the programmable clock generator (Si5332) used for the transceiver channel
in this design is disabled. Do the following to enable and configure the output clock frequencies correctly
a. Download and unzip "Kit Collateral.zip" design package from below link
https://www.altera.com/products/boards_and_kits/dev-kits/altera/cyclone-10-gx-development-kit.html
b. Launch Quartus software first then run the ClockController.exe from
cyclone-10-gx-kit-collateral\examples\board_test_system
c. By default, the Clock Controller GUI should look like Figure 4

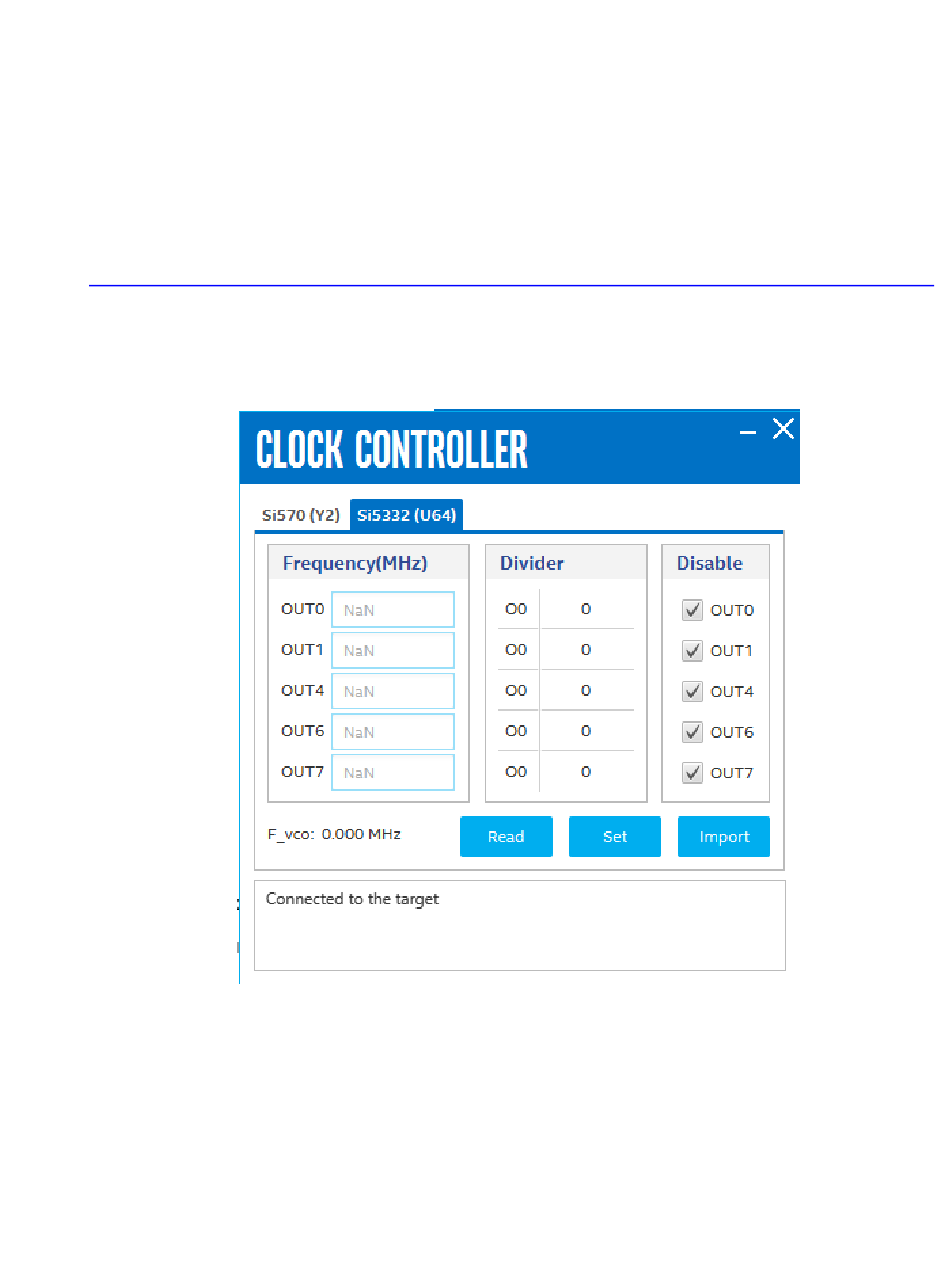

Figure 4. Default Clock Controller GUI for Si5332
d. Click the "Import" button in Clock Controller GUI and select the "U64-Registers.txt" in cyclone-10-gx-kit-
collateral\examples\board_test_system folder to configure the output clock frequencies
