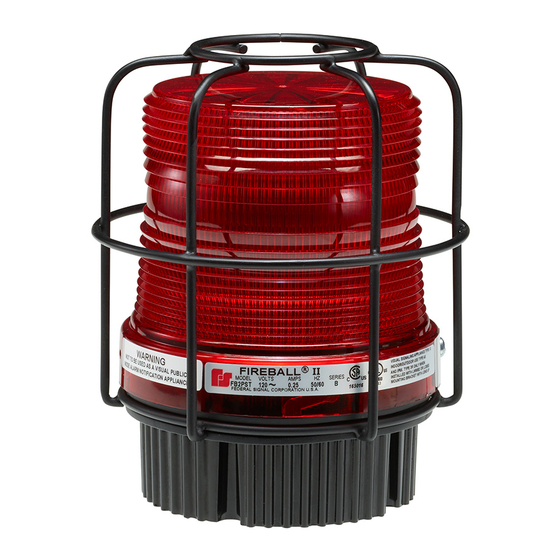

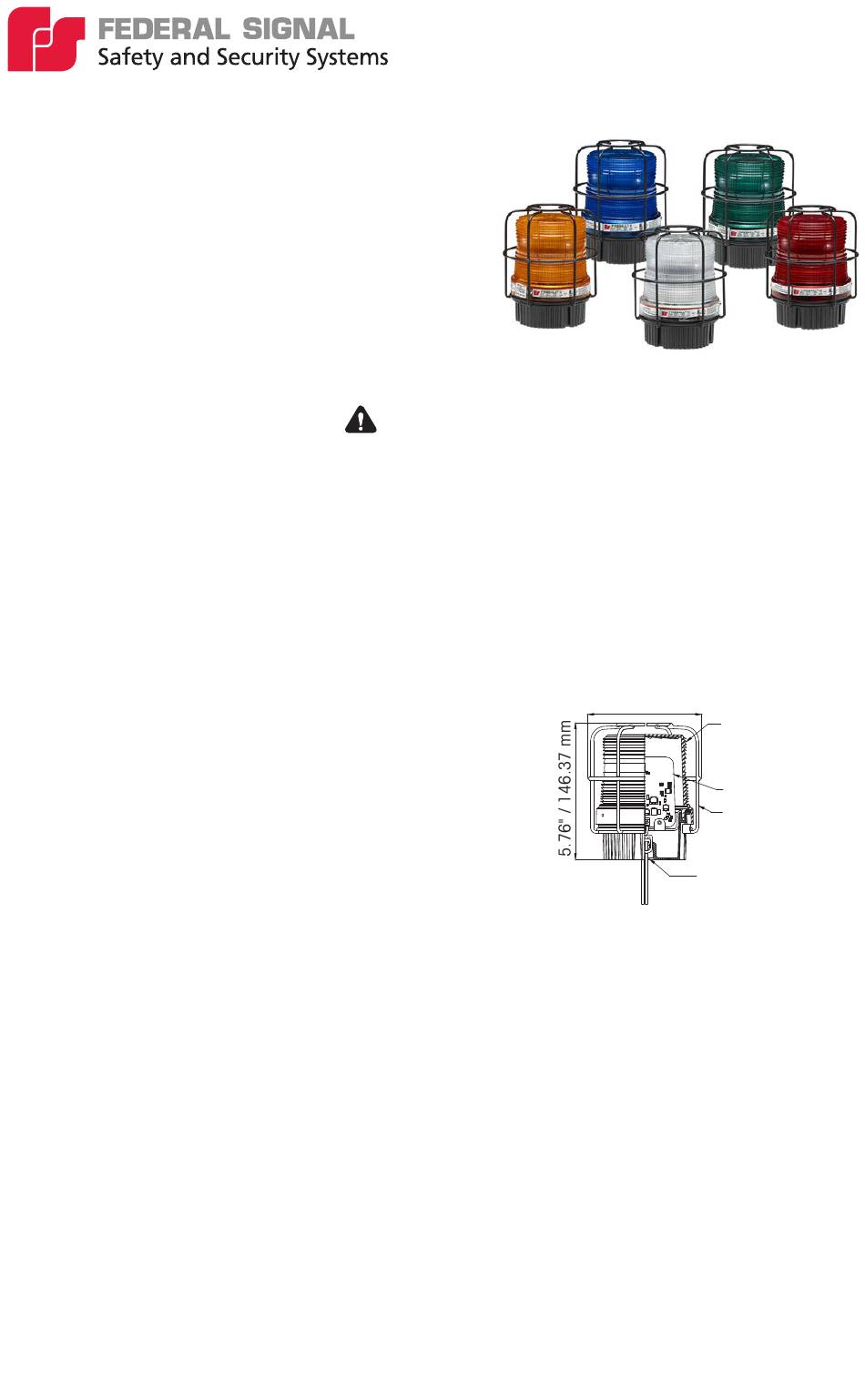

Model FB2LEDX Series
Fireball
Hazardous Location
®
LED Warning Lights
Installation and Maintenance Instructions
Warranty: This product's limited warranty can be found at www.fedsig.com/SSG-Warranty.
Limited
Safety Messages to Installers and Users
follow all safety instructions. Failure to do so may result in property damage, serious injury, or death.
To avoid electrical shock hazards, do not connect wires when power is applied.
To be an effective warning device, this product produces bright light that could be hazardous to eyesight.
Do not stare directly at the light. Rapid flashing could induce photosensitive epilepsy.
Never alter the unit in any manner. Safety in hazardous locations may be endangered if additional
openings or alternations are made.
WARNING - EXPLOSION HAZARD: Do not disconnect the equipment unless power has been switched
off or the area is known to be non-hazardous. To reduce the risk of ignition due to electrostatic discharge,
avoid contact with the unit while an explosive atmosphere is present. Clean only with a damp cloth. Do
not use chemical cleaners.
FB2LEDX Series can be programmed to produce one

Overview:

of three light patterns: steady, 60 FPM, and 120 FPM (preset to
60 FPM). Units are available in 12-24VDC or 120-240VAC.

Certifications and Ratings:

Model FB2LEDX is UL and cUL Listed for Class I,
Division 2, Groups A, B, C and D (T5); Class II, Division
2, Groups F and G (T6); Class III (T6); or non-hazardous
locations only
Model FB2LEDX-CN is UL and cUL Listed for Class I, Zone 2
(T5); Class II, Zone 22 (T85); or non-hazardous locations only
Type 4X, IP66
IP69K Compliant
Electrical ratings: 0.48A - 0.24A (12-24VDC) or 0.03A (120-240VAC 50/60HZ)
Certified Operating Temperature: -40°F to 150°F (-40°C to 66°C)
Unpacking the Device: After unpacking the device, examine it for damage and verify parts. Unit comes
with: (1) FB2LEDX assembled unit with guard, flying leads and (1) panel mount gasket, (3) No. 8 x 1/2" panel
mounting tapping screws. If a part is missing or damaged do not attempt to install. Contact Federal Signal
Customer Support at +1 708-534-4756 or iordersup@fedsig.com
Mounting the Device: FB2LEDX units come standard to mount on a flat (horizontal or vertical) surface or on
a 1/2" NPT threaded pipe. Wall mounting bracket (LHWB) accessory is sold separately.
Warning - Explosion Hazard – To reduce the risk of fire or explosion, do not install the unit in a
hazardous location if the operating temperature exceeds the atmosphere's ignition temperature. Consult
product nameplate to determine the temperature code of the unit.
Pipe Mounting – FB2LEDX Series can be pipe mounted on a 1/2" NPT pipe. Feed wires through pipe and
turn clockwise to tighten. Recommended tightening torque is 5-ft-lbs (6.8 N-m).
Surface/Panel Mounting – Using provided gasket as a template, mark three mounting holes and center
hole for wiring. Drill or punch 0.188" (5.0mm) diameter holes for mounting and a .88" (22.0mm) for wiring.
Set base on gasket, feed wires through center hole, and attach to the mounting surface using provided
No. 8 tapping screws from the underside.
: Product should be installed by a licensed electrician and
4.80" / 121.79 mm
Impact-Resistant
Fresnel Dome
LED PCBA
Black Stainless
Steel Wire Guard
1/2" NPT Pipe Mount
and 3-hole Surface Mount
