Federal Signal Corporation SST3-MV Installation Instructions Manual
Selectable sirentone-multi volt
Hide thumbs
Also See for SST3-MV:
Related Manuals for Federal Signal Corporation SST3-MV
Summary of Contents for Federal Signal Corporation SST3-MV
- Page 1 MODEL SST3-MV INSTALLATION INSTRUCTIONS FOR FEDERAL MODEL SST3-MV SELECTABLE SIRENTONE-MULTI VOLT...

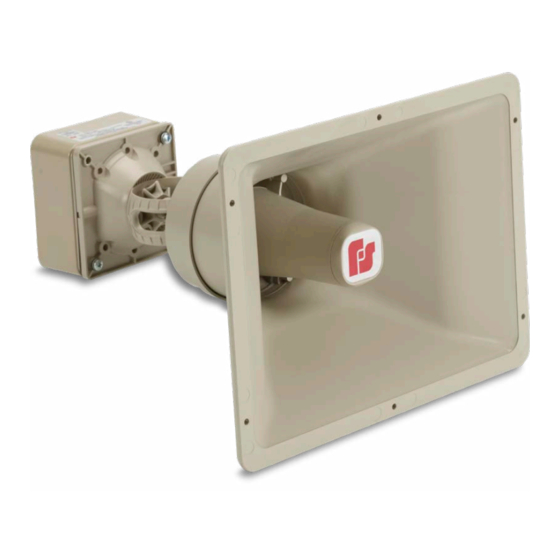

- Page 3 SELECTABLE SIRENTONE-MULTI VOLT A. GENERAL. The Federal Model SST3-MV is a solid-state signalling device that can be used for general purpose signalling. Any one of three distinctive signalling tones may be selected by dry contact closure at the appropriate connections of J4. The tone can easily be changed if the signalling requirements change.
- Page 4 Failure to do so may result in property damage, serious injury or death to you or others. 1. Weatherproof Mounting in WB Box. a. See figure 1. Insert the two #8-32 x 3-1/4" slotted pan head screws into the SST3-MV base at opposite corners.
- Page 5 Surface mounting the SST3-MV in an NB or NBL box is accomplished using the adapter, adapter gasket, and the #8-32 x 3-1/4" pan head screws. Use figure 2 as guide. a. See figure 2. Insert the two #8-32 x 3-1/4" slotted pan head screws into the SST3-MV base at opposite corners.
- Page 6 Manufacturer’s Representative. At that time a brief explanation of the service requested, or the nature of the malfunctions, should be provided. I. REPLACEMENT PARTS. Description Part Number Board Assy, SST3-MV K2001177 Connector Plug, 4-position K140340 Connector Plug, Tone Selector K140389A-04...
- Page 7 ASSEMBLED DETAIL SST3-MV ADAPTER WB GASKET 8-32 x 3-1/4" SCREWS(2) ADAPTER GASKET WB GASKET ADAPTER (REF.) (SECTIONAL VIEW) 290A4032-01 ADAPTER GASKET ASSEMBLED DETAIL SST3-MV ADAPTER NB, OR NBL BOX GASKET 8-32 x 3-1/4" SCREWS(2) ADAPTER (SECTIONAL VIEW) WALL ADAPTER GASKET...
- Page 8 ASSEMBLED DETAIL SST3-MV ADAPTER NB, OR NBL BOX GASKET 8-32 x 3-1/4" SCREWS(2) ADAPTER (SECTIONAL VIEW) 290A4032-03 TONE SELECTOR CONNECTOR, J4 FOR YELP TONE POWER CONNECTOR PLUG, J3 YELP FOR WAIL TONE 24VDC 120/240 JUMPER WAIL 120V FOR HORN TONE...
