VISION
WARNING SYSTEM
OPERATION AND CONFIGURATION INSTRUCTIONS
GENERAL SOFTWARE
Version 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VISION and is the answer not in the manual?

Questions and answers

Related Manuals for Federal Signal Corporation VISION

Summary of Contents for Federal Signal Corporation VISION

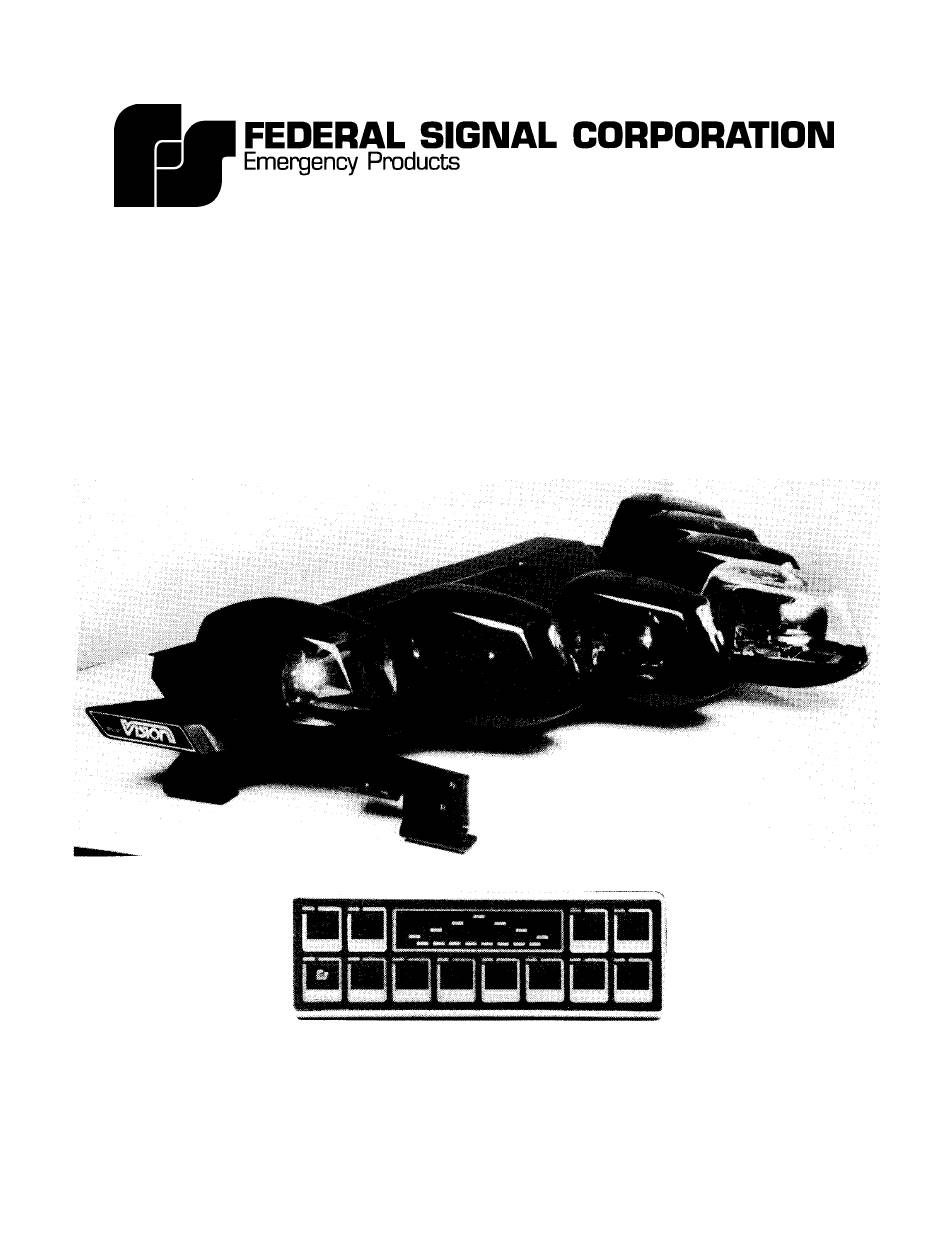

  • Page 1 Price $15.00 ® VISION WARNING SYSTEM OPERATION AND CONFIGURATION INSTRUCTIONS GENERAL SOFTWARE Version 2.0...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Paragraph Page SECTION I - OPERATION General ........................Power-up ........................Led Illumination Intensity Adjustment..............Foot Switch ........................SS2000 SmartSiren® Interface.................. Keyboard Configurations A. Keyboard Configuration 2 (POLICE A) ............B. Keyboard Configuration 3 (POLICE B) ............C.

  • Page 4: Section I - Operation

    SECTION I OPERATION SAFETY MESSAGE TO OPERATORS OF FEDERAL SIGNAL LIGHT SYSTEMS • The control head’s LED display simulates the WARNING light pattern(s) being executed by the warning The lives of people depend on your safe opera- system. The display is intended ONLY as a guide and tion of Federal products.

  • Page 5: General

    (programmed) to operate. vehicle’s ignition switch is “on”. The Vision control head is designed to assist the If a user-supplied switch is installed, enable the operator’s selection of functions. Each control head system by operating the switch to its “on”...

  • Page 6: Led Illumination Intensity Adjustment

    1-3. LED ILLUMINATION INTENSITY ADJUSTMENT. 1-5. SS2000 SMARTSIREN INTERFACE. The bright LED’s provide maximum visibility in If the SS2000 SmartSiren interface is installed, high ambient lighting conditions. The RESET LED operate switch 8 (usually Mode 3) or the foot switch illumination intensity can be adjusted from bright to activate the SS2000 pursuit function.

  • Page 7: Keyboard Configuration 2 (Police A)

    Keyboard Configuration 2 (POLICE A). Press switch 2 a fourth time to deactivate the SignalMaster directional signal and NOTE the switch 2 LED will extinguish. Refer to figure 1-1 while reading paragraph Switch 3 (TAKE-DOWN). 1-6.A. Press switch 3 to activate the take- Switch 1 (RESET).

  • Page 8: Keyboard Configuration 3 (Police B)

    what device (if any) is connected to the relay C light. Each time switch 12 is pressed with a take- output. The LED’s in the V-shaped display will flash down light activated, the light will move one step to indicating the lights are activated and the switch 7 the right and the switch 12 LED will illuminate LED will illuminate.
  • Page 9 Switch 6 (MODE 1). NOTE If switch 2 is pressed and held allowing the Press switch 6 to activate Mode 1. In activated take-down lights to rotate more this keyboard configuration; a four-light, alternating, than approximately 1-1/2 revolutions, an error oscillating pattern to the rear is activated.

  • Page 10: Keyboard Configuration 4 (Fire A)

    11. Switch 11 (SignalMaster Switch 3 (RELAY A). ALTERNATE). Press switch 3 to activate the auxiliary Press switch 11 to activate an alter- device, such as headlight flashers or grille lights, nating flash pattern(four lamps in the center, then connected to the relay A output. The installer should two outer lamps on both sides).

  • Page 11: Keyboard Configuration 5 (Fire B)

    vate Mode 3. The LED’s in the V-shaped display and position. All other LED’s will extinguish and acti- the switch 8 LED will extinguish. vated functions will deactivate. Switch 9 (V-BAR LEFT). NOTE The RESET switch may be pressed at any time Press switch 9 to activate a lightbar to deactivate any previously selected function(s).

  • Page 12: Keyboard Configuration 7 (Clearboard)

    Each time switch 4 is pressed, the activated light will Switch 9 (V-BAR LEFT). move one step to the right and the switch 12 LED will illuminate momentarily. Press and hold switch 4 Press switch 9 to activate a lightbar until the activated light rotates right to the desired generated, left arrow directional signal to the front of position.
  • Page 13 switch 12 LED will illuminate momentarily. Press and hold switch 4 until the activated light rotates to the desired position. NOTE RESET If switch 4 is pressed and held allowing the 1 - Reset 7 - Mode 2 (pattern #26) 2 - Jog Left (pattern #86) 8 - Mode 3 (pattern #27) activated work lights to rotate more than...

  • Page 14: Keyboard Configuration 8 (Demo)

    of the vehicle. The switch 9 LED illuminates and the row of LED’s under the V-shaped display simulates the light pattern being executed by the directional signal. Press switch 9 again to deactivate the left arrow directional signal and extinguish the switch 9 RESET LED.

  • Page 15: Section Ii - Configuration

    SignalMaster patterns executed by the Property damage, serious injury, or death to optional SignalMaster rear directional light. you or others may result if the Vision warning system is improperly configured. Configura- Three auxiliary relay outputs to control tion, if required, is to be performed at the time auxiliary lights and/or accessories.

  • Page 16: Level 1 Configuration

    Release the Reset/Save switch. A illuminate indicating Keyboard Configuration 3 is single beep should be heard, switch 9 and 10 LED’s selected. should be illuminated, and the Reset/Save LED Press the Reset/Save switch to should still be flashing, to indicate that the system is save the keyboard configuration selection and exit in the configuration mode.

  • Page 17: Level 2 Configuration

    NOTE NOTE If you get “lost” during the configuration ses- The Reset/Save LED will remain flashing sion, continue to press the Reset/Save switch while in the configuration mode. Also, a short until a longer beep sounds and the Reset/Save beep sounds when a switch is pressed and a LED changes from flashing to steady illumi- second short beep sounds when the switch is nation (indicates run mode).
  • Page 18 Press switch 12 (switch operation To exit Level 2 Configuration, select) to change switch operation. Continue to press press the Reset/Save switch a second time. switch 12 until the “M” LED in the V-shaped display is illuminated. The control head display now indi- Press the Reset/Save switch a cates that switch 4 is configured with no pattern, no third time to exit the configuration mode.
  • Page 19 with pattern #46, no SignalMaster pattern, auxiliary Driver Passenger relay C activation, and push-on/push-off operation. Side Side Press the Reset/Save switch to Left Arrow save this configuration. The control head display will indicate the last switch configured. Therefore, switch 6 LED is illuminated. Right Arrow To exit Level 2 Configuration, press the Reset/Save switch a second time.
  • Page 20 Before a pattern can be changed, Press switch 3. See figure 2-4. it is necessary to first clear (remove) the current The control head display will indicate that switch 3 is pattern. Press a switch (2 through 8) to clear (re- configured with pattern #83 (take down lights using move) the current pattern and extinguish LED’s 2 pods 3 &...
  • Page 21 PATTERN PATTERN NOTES SECONDARY PATTERNS PRIMARY PATTERNS JL JL JL JL JL AUXILIARY PATTERNS UTILITY PATTERNS LEGEND NOTES: ROTATE (nn = SPEED) RA RIGHT ALLEY A. SYNC CENTER OUT. B. SYNC SPECIAL. FLASH TO FRONT LA LEFT ALLEY C. SYNC RIGHT ARROW. D.

  • Page 22: Configuration Restrictions

    Switch 7 LED is illumi- nated. A switch assigned a Vision pattern will cancel any other switch that is also assigned a Vision Press switch 2 to select the pattern. If a switch is assigned only an auxiliary pattern number’s ones digit.

  • Page 23: Configuration Worksheet

    Since Level 2 Configuration can become some- Peoples’ lives depend on the safe use of the what complicated, it is important to determine the Vision warning system. After testing is com- desired changes before performing Level 2 Configura- plete, ensure that all operating personnel tion.
  • Page 24 Reset/ Save Switch # Pattern # SignalMaster Relays Operation 1 - Reset/Save Only A B C O M T A B C O M T A B C O M T A B C O M T A B C O M T A B C O M T...

  • Page 25: Level 2 Configuration

    switch. Replace the modular connector at the control head. The Reset/Save LED should be flashing. Release the Reset/Save switch. A single beep should be heard, switch 9 and 10 LED’s should be illuminated, and the Reset/Save LED should still be flashing, to indicate that the system is in the configuration mode.

  • Page 26: Section Iii - Microprocessor Installation

    Relay Unit as described in the Service and Mainte- warning system operation. They MUST be changed nance section of the Vision Installation and Mainte- as a set. Each microprocessor in a set has a specific nance Instructions (Part No. 255247).

  • Page 27: Software Revision Label Installation

    Figure 3-2. Interface/Relay Unit Microprocessor. See figure 3-3. Insert the new micro- included. The labels are to be installed on the control processor IC (“BC” in the part number) in the empty head, Interface/Relay Unit, and the lightbar. socket. Ensure that the notch on the new micropro- After the microprocessors are installed as cessor IC is facing the same direction as the old one described above, install the labels as follows:...
