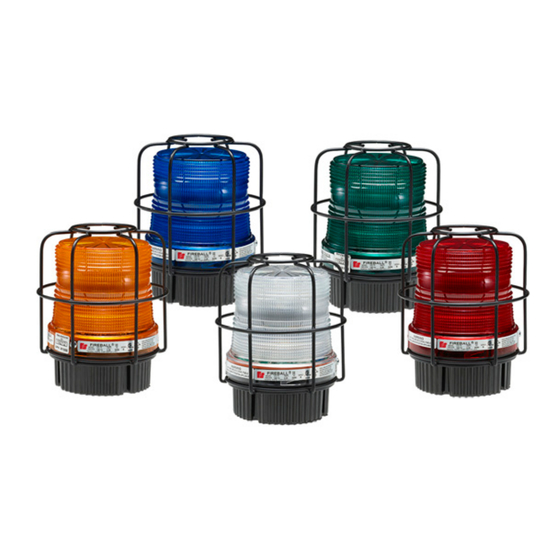

Model FB2LEDX
Fireball
Hazardous Location
®
LED Warning Lights
25500561 Rev A3 0124
Limited Warranty: This product's limited warranty can be
found at www.fedsig.com/SSG-Warranty.
SAFETY MESSAGES TO INSTALLERS AND USERS
It is important to follow all instructions shipped with
this product. This device is to be installed by a trained
electrician who is thoroughly familiar with the National
Electrical Code and/or Canadian Electrical Code and will
follow the NEC and/or CEC Guidelines as well as all local
codes. This device should be considered a part of the
warning system and not the entire warning system.
The selection of the mounting location for the device,
its controls, and the routing of the wiring are to be
accomplished under the direction of the facilities engineer
and the safety engineer. Listed below are some other
important safety instructions and precautions you should
follow:
Read and understand all instructions before
installing or operating the equipment.
To avoid electrical shock hazards, do not connect
wires when power is applied.
In order to be an effective warning device, this
product produces bright light that can be hazardous
to your eyesight. The possibility exists that rapid
flashing lights could induce photosensitive epilepsy.
Do not stare directly at the light.
Keep the unit tightly closed when in operation.
Never alter the unit in any manner. Safety in
hazardous locations may be endangered if additional
openings or alternations are made.
WARNING - EXPLOSION HAZARD: Do not
disconnect the equipment unless power has been
switched off or the area is known to be non-
hazardous. To reduce the risk of ignition due to
electrostatic discharge, avoid contact with the unit
while an explosive atmosphere is present. Clean only
with a damp cloth. Do not use chemical cleaners.
Establish a procedure to routinely check the light
installation for integrity and proper operation.
Failure to follow all safety precautions and instructions
may result in property damage, serious injury, or death to
you or others.
OVERVIEW — FB2LEDX Series can be programmed to
produce one of three light patterns: steady, 60 FPM, and
120 FPM (preset to 60 FPM). Units are available in 12-
24 Vdc or 120-240 Vac.
:
Certifications and ratings
Model FB2LEDX is UL and cUL Listed for Class I,
Division 2, Groups A, B, C and D (T5); Class II,
Division 2, Groups F and G (T6); Class III (T6); or non-
hazardous locations only
Model FB2LEDX-CN is UL and cUL Listed for Class
I, Zone 2 (T5); Class II, Zone 22 (T85); or non-
hazardous locations only
Type 4X, IP66
IP69K Compliant
Electrical ratings: 0.48A - 0.24A (12-24 Vdc) or
0.03 A (120-240 Vac 50/60 Hz)
Certified Operating Temperature: -40°F to 150°F
(-40°C to 66°C)
Unpacking the Device — After unpacking the device,
examine it for damage and verify parts. The unit comes
with (1) FB2LEDX assembled unit with guard, flying
leads and (1) panel mount gasket, (3) No. 8 x 1/2" panel
mounting tapping screws. If a part is missing or damaged,
do not attempt to install. Contact Federal Signal Customer
Support at +1 708-534-4756 or iordersup@fedsig.com
Mounting the device
EXPLOSION HAZARD — To reduce the risk of fire or
explosion, do not install the unit in a hazardous location
if the operating temperature exceeds the atmosphere's
ignition temperature. Consult product nameplate to
determine the temperature code of the unit.
Figure 1 Parts and measurements
4.80" / 121.79 mm
Impact-Resistant
Fresnel Dome
LED PCBA
Black Stainless
Steel Wire Guard
1/2" NPT Pipe Mount
and 3-hole Surface Mount
