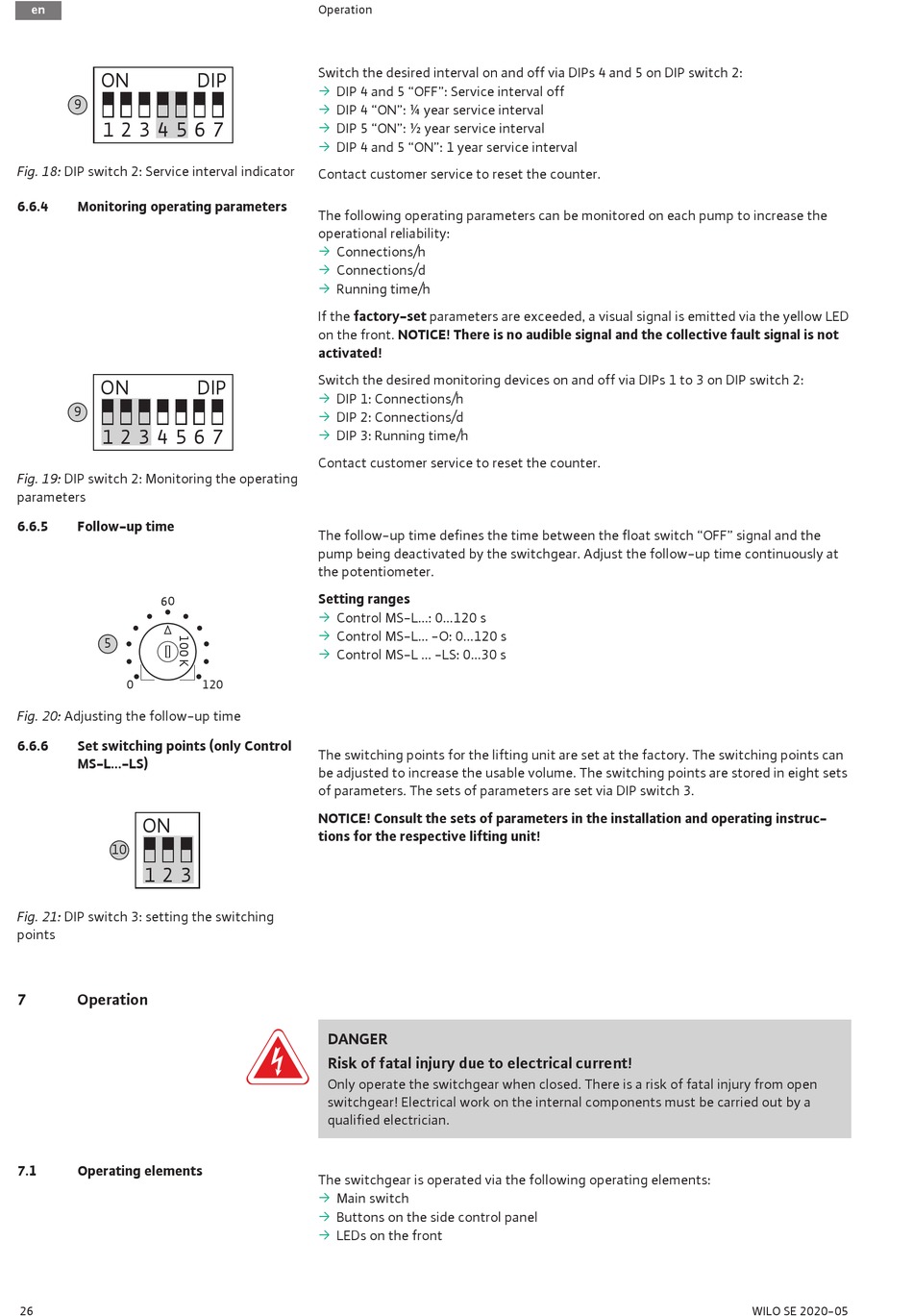

Operation; Operating Elements - Wilo Control MS-L Series Installation And Operating Instructions Manual

en
ON
9
1 2 3 4 5 6 7
Fig. 18: DIP switch 2: Service interval indicator
6.6.4 Monitoring operating parameters
ON
9
1 2 3 4 5 6 7
Fig. 19: DIP switch 2: Monitoring the operating
parameters
6.6.5 Follow-up time
5
Fig. 20: Adjusting the follow-up time
6.6.6 Set switching points (only Control
MS-L...-LS)
ON
10
1 2 3
Fig. 21: DIP switch 3: setting the switching
points
7

Operation

7.1

Operating elements

26
Operation
DIP
Switch the desired interval on and off via DIPs 4 and 5 on DIP switch 2:
ƒ
DIP 4 and 5 "OFF": Service interval off
ƒ
DIP 4 "ON": ¼ year service interval
ƒ
DIP 5 "ON": ½ year service interval
ƒ
DIP 4 and 5 "ON": 1 year service interval
Contact customer service to reset the counter.
The following operating parameters can be monitored on each pump to increase the
operational reliability:
ƒ
Connections/h
ƒ
Connections/d
ƒ
Running time/h
If the factory-set parameters are exceeded, a visual signal is emitted via the yellow LED
on the front. NOTICE! There is no audible signal and the collective fault signal is not
activated!
DIP
Switch the desired monitoring devices on and off via DIPs 1 to 3 on DIP switch 2:
ƒ
DIP 1: Connections/h
ƒ
DIP 2: Connections/d
ƒ
DIP 3: Running time/h
Contact customer service to reset the counter.
The follow-up time defines the time between the float switch "OFF" signal and the
pump being deactivated by the switchgear. Adjust the follow-up time continuously at
the potentiometer.
Setting ranges
ƒ
Control MS-L...: 0...120 s
ƒ
Control MS-L... -O: 0...120 s
ƒ
Control MS-L ... -LS: 0...30 s
The switching points for the lifting unit are set at the factory. The switching points can
be adjusted to increase the usable volume. The switching points are stored in eight sets
of parameters. The sets of parameters are set via DIP switch 3.
NOTICE! Consult the sets of parameters in the installation and operating instruc-
tions for the respective lifting unit!
DANGER
Risk of fatal injury due to electrical current!
Only operate the switchgear when closed. There is a risk of fatal injury from open
switchgear! Electrical work on the internal components must be carried out by a
qualified electrician.
The switchgear is operated via the following operating elements:
ƒ
Main switch
ƒ
Buttons on the side control panel
ƒ
LEDs on the front
WILO SE 2020-05
