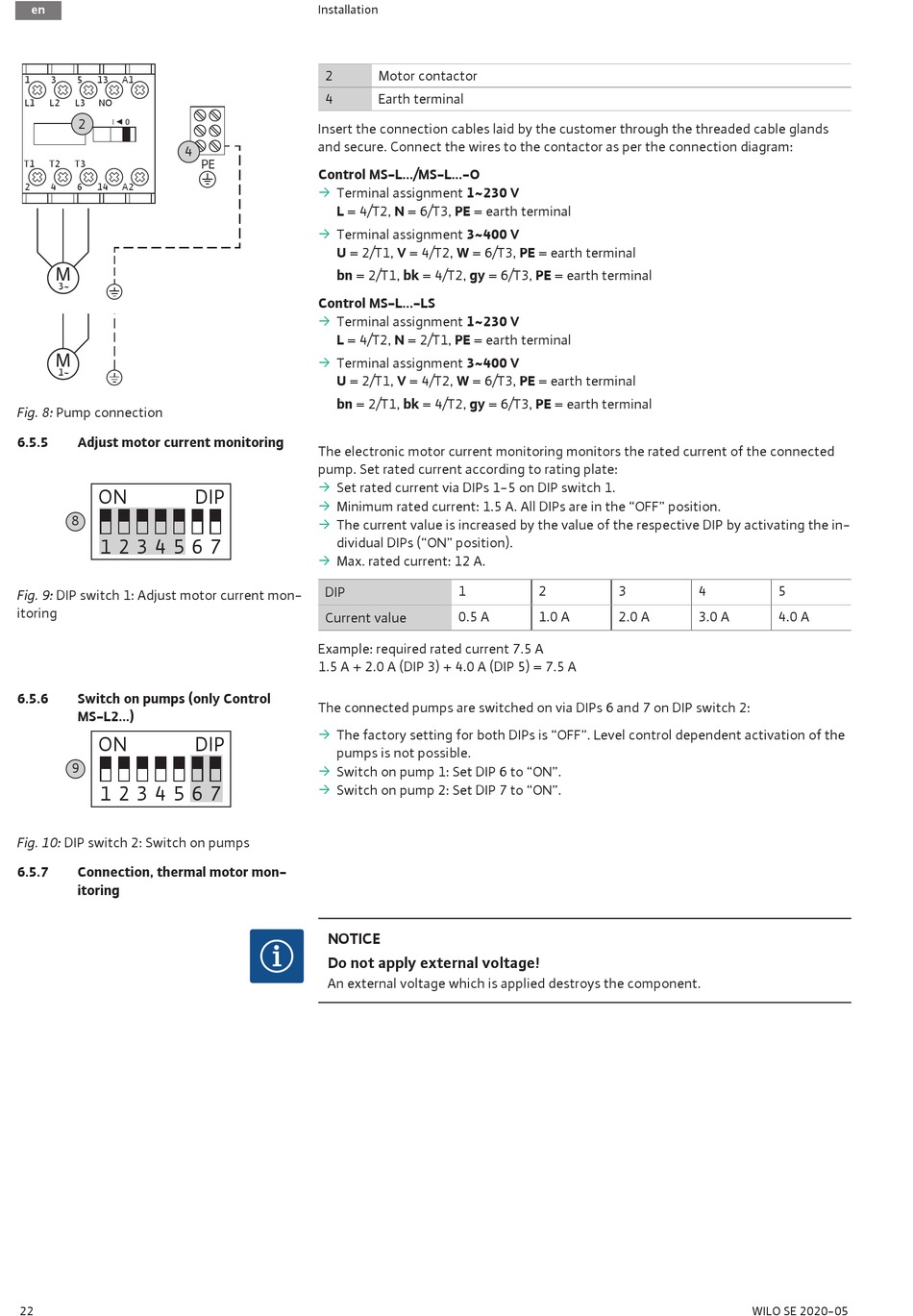

en
1 3 5 13 A1
L1 L2 L3 NO
2
4
T1 T2 T3
2 4 6 14 A2
M
3~
M
1~
Fig. 8: Pump connection
6.5.5 Adjust motor current monitoring
ON
8
1 2 3 4 5 6 7
Fig. 9: DIP switch 1: Adjust motor current mon-
itoring
6.5.6 Switch on pumps (only Control
MS-L2...)
ON
9
1 2 3 4 5 6 7
Fig. 10: DIP switch 2: Switch on pumps
6.5.7 Connection, thermal motor mon-
itoring
22
Installation
2
4
Insert the connection cables laid by the customer through the threaded cable glands
and secure. Connect the wires to the contactor as per the connection diagram:
PE
Control MS-L.../MS-L...-O
ƒ
Terminal assignment 1~230 V
L = 4/T2, N = 6/T3, PE = earth terminal
ƒ
Terminal assignment 3~400 V
U = 2/T1, V = 4/T2, W = 6/T3, PE = earth terminal
bn = 2/T1, bk = 4/T2, gy = 6/T3, PE = earth terminal
Control MS-L...-LS
ƒ
Terminal assignment 1~230 V
L = 4/T2, N = 2/T1, PE = earth terminal
ƒ
Terminal assignment 3~400 V
U = 2/T1, V = 4/T2, W = 6/T3, PE = earth terminal
bn = 2/T1, bk = 4/T2, gy = 6/T3, PE = earth terminal
The electronic motor current monitoring monitors the rated current of the connected
pump. Set rated current according to rating plate:
DIP ƒ
Set rated current via DIPs 1-5 on DIP switch 1.
ƒ
Minimum rated current: 1.5 A. All DIPs are in the "OFF" position.
ƒ
The current value is increased by the value of the respective DIP by activating the in-
dividual DIPs ("ON" position).
ƒ
Max. rated current: 12 A.
DIP
Current value
Example: required rated current 7.5 A
1.5 A + 2.0 A (DIP 3) + 4.0 A (DIP 5) = 7.5 A
The connected pumps are switched on via DIPs 6 and 7 on DIP switch 2:
DIP ƒ
The factory setting for both DIPs is "OFF". Level control dependent activation of the
pumps is not possible.
ƒ
Switch on pump 1: Set DIP 6 to "ON".
ƒ
Switch on pump 2: Set DIP 7 to "ON".
NOTICE
Do not apply external voltage!
An external voltage which is applied destroys the component.
Motor contactor
Earth terminal
1 2
0.5 A 1.0 A
3 4 5
2.0 A 3.0 A 4.0 A
WILO SE 2020-05
