Honeywell Vista 20 Panel Wiring
1.
Connect the communicator's Z1 (zone 1) terminal to output 17 on the control panel.
2.
Connect the communicator's O1 (output 1) terminal to the control panel's keyswitch or arming zone.
3.
Connect the T (tip) terminal on the communicator to terminal 23 on the control panel.
Connect the R (ring) terminal on the communicator to terminal 24 on the control panel.
4.
Power the communicator by connecting its terminal +12V to terminal 5 on the control panel.
5.
6.
Connect the communicator's GND (ground) terminal to terminal 4 on the control panel.
OUTPUT 17
1
2
3
4
5
6
7
8
9
10
CellCom‑LTE Programming and Installation Guide
Honeywell Vista 20 Series
11
12
13
14
15
16
17
18
19
21
20

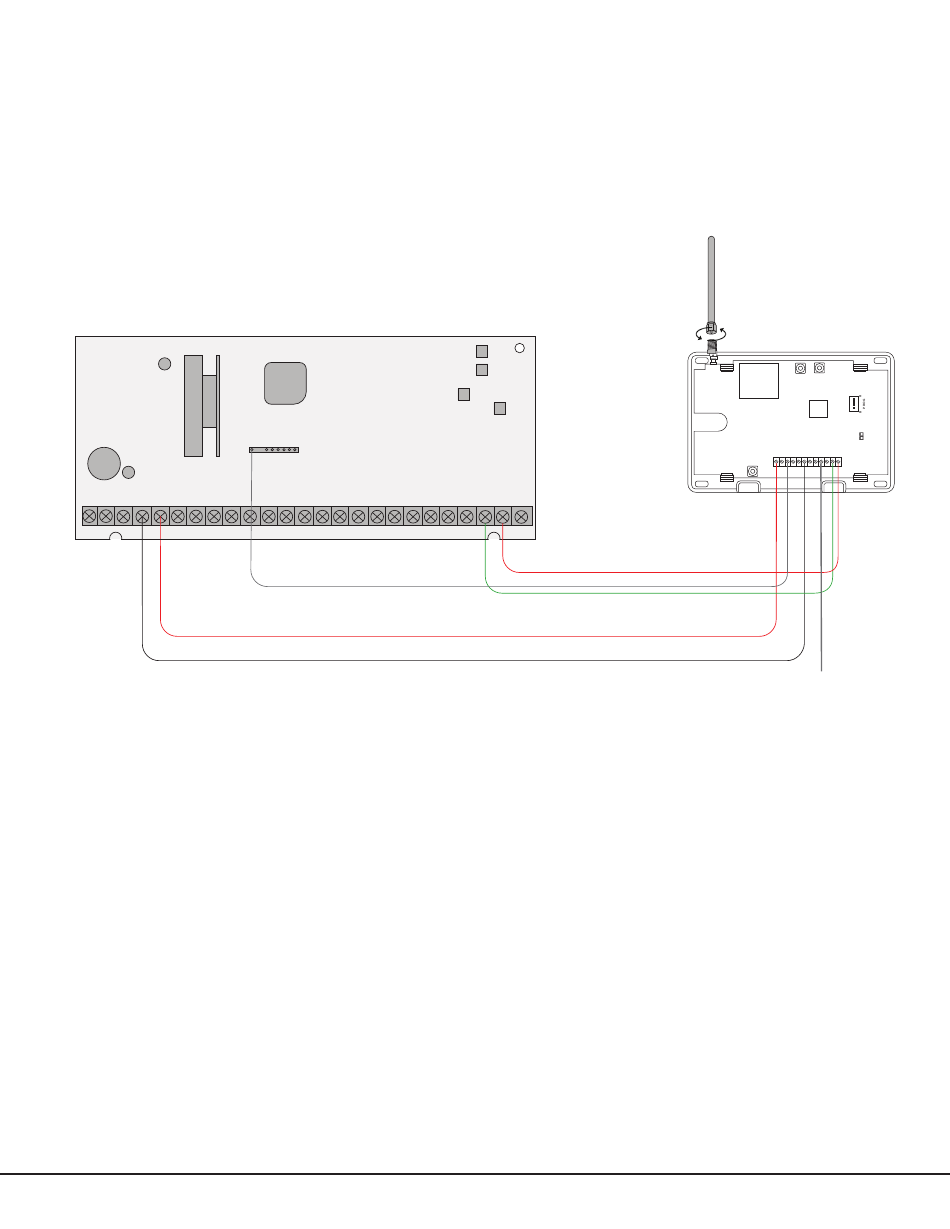

Figure 12: Vista 20 Series Control Panel to CellCom
22
23
24
25
LOAD
RESET
CellCom-LTE-V
+DC- Z1 Z2 Z3 G
+Z4- O1 O2
T R
Connect to any
keyswitch or arming
zone.
Digital Monitoring Products
13
