- Page 1 User Guide AH12TX16GA AH17TXHDGA AH22TX16GA Manually foldable professional monitors Technology Serving Desing Danish craftmanship Mediterranean soul...
-
Page 3: Table Of Contents
TABLE OF CONTENTS EC REGULATIONS & SECURITY SAFETY INSTRUCTIONS APPLICATIONS FEATURES BOX CONTENTS CONNECTIONS TROUBLE SHOOTING CONTROLS OSD MENU PRODUCT HANDLING INPUT CONNECTORS INPUT SIGNALS WARRANTY TERMS... - Page 5 WELCOME Thank you for purchasing an ARTHUR HOLM product. Our product range has been designed to create the perfect meeting room, where the screens are a part of the interior design as well as an essential communication tool. Please, read this installation and operating instructions carefully and keep them in a safe place for future reference.
-
Page 6: Ec Regulations & Security
EC REGULATIONS AND SECURITY ATTENTION: Do not disassemble or modify the device in any way. This symbol warns of the presence of dangerous un-insulated voltages inside some of the components, of sufficient magnitude to expose people to risk of electronic shock. This symbol draws attention to important use and maintenance instructions in the manual that accompanies the unit. - Page 7 SAFETY INSTRUCTIONS Wiring connected to hazardous voltage requires installation by qualified personnel or the use of ready-made flexible cables. For your security, your equipment must be connected to an electrical outlet with grounding connection protection. Since the plug is used to disconnect the device, the operating electrical outlet must be in an easily accessible place.
-
Page 8: Applications

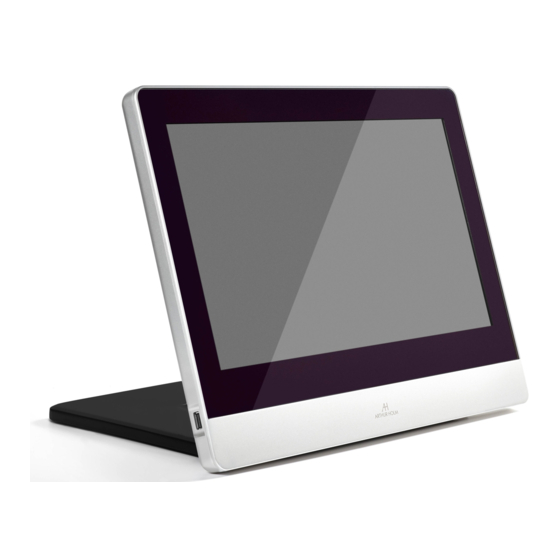

SYSTEM DESCRIPTION Applications The AH1 family consists of a manually foldable monitor in milled aluminium with anodised finish and dark cast iron base. Flush antiglare protection glass with elegant black marking. This TFT-LCD product range is specially designed for desk integration at: Conference rooms Meeting rooms Board rooms... -
Page 9: Connections
SYSTEM DESCRIPTION Box Contents Important Note: This device can only work with the power supply included in the shipping box. This power supply can not be replaced by any other rather than the original one Connections Power connection 1. Plug the power cable from the power supply into an AC socket of 100-240 Vac, 50-60Hz. -
Page 10: Controls
CONTROLS OSD monitor control The OSD buttons, to control or configure the monitor, are located on the lower body housing of the system MENU SELECT DOWN LEFT RIGHT SOURCE LED POWER MENU Activates the OSD menu on screen. Exits the OSD menu when is active SELECT Selects the OSD menu function... -
Page 11: Osd Menu
OSD MENU Accessing the menu system • With the OSD off, push the MENU button to activate the main OSD menu. • Press the UP and DOWN buttons to move from one function to another. Please refer to the following sections below to view a complete list of all the functions available for the monitor. - Page 12 OSD MENU Picture NOISE REDUCTION Adjusts the image noise filter Medium High Default SCREEN (Only for analogue signals) Auto Adjust Horizontal Position Vertical Position Size Phase BACKLIGHT Adjusts the backlight screen level COLOUR Adjusts the colour range RANGE 0 - 255 16 - 235...
- Page 13 OSD MENU Setup LANGUAGE OSD language selection RESTORE FACTORY DEFAULT Adjusts the parameters to the initial factory parameters BLENDING OSD window transparency Medium High OSD DURATION Adjusts the time that the OSD menu window remains on screen SOFTWARE UPDATE Used for firmware upgrade mirror MIRROR 0: Image with no flip 1: Vertical flip...
-
Page 14: Product Handling
MONITOR HANDLING To adjust the inclination of the monitor, hold it by it’s sides and move it. The monitor has rubber bumper feet fitted on the base to stop the monitor sliding on the table surface. The cables can be secured to the plate with two phillips screws to avoid them getting under the stand. -
Page 15: Input Connectors
INPUT CONNECTORS 12V D.C. Power supply input connector. XLR-4 connector DVI 2 DVI-D input signal. Connect a DVI (digital) input signal and select DVI 2 on the OSD monitor menu DVI 1/ DVI A DVI-I input signal. Connect a DVI (digital) input signal and select DVI 1 on the OSD monitor menu. -
Page 16: Input Signals
INPUT SIGNALS AH12TX16GA RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type 800x600@60Hz 37.879 60.317 Progressive 800x600@72Hz 48.077 72.188 Progressive 800x600@75Hz 46.875 75.000 Progressive 1024x768@60Hz 48.363 60.005 Progressive 1024x768@70Hz 56.476 70.070 Progressive 1024x768@75Hz 60.023 75.030 Progressive 1280x720@60Hz 44.697 59.915 Progressive 1280x768@60Hz 47.396 59.995... - Page 17 INFORMATION ON DISPOSAL FOR USERS OF WASTE ELECTRICAL & ELECTRONIC EQUIPMENT This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to the designated collection points, where they will be accepted on a free of charge basis.
-
Page 18: Warranty Terms
WARRANTY TERMS AND CONDITIONS Albiral Display Solutions warrants this product against manufacturing defects and workmanship for a period of two (2) years from the date of purchase, subject to the conditions below. 1. LCD panel, inverter, controller, electrical, electronic boards, accessories and power supply are warranted against manufacturing defects and workmanship for a period of two (2) years from the date of purchase. - Page 19 If you have any doubts concerning the terms of this warranty, please contact: business@albiral.com +34 938 502 376 Copyright © Dec. 2019. All rights reserved Albiral Display Solutions SL. Registered trademarks: Albiral, Arthur Holm, Pixtron Broadcast...
