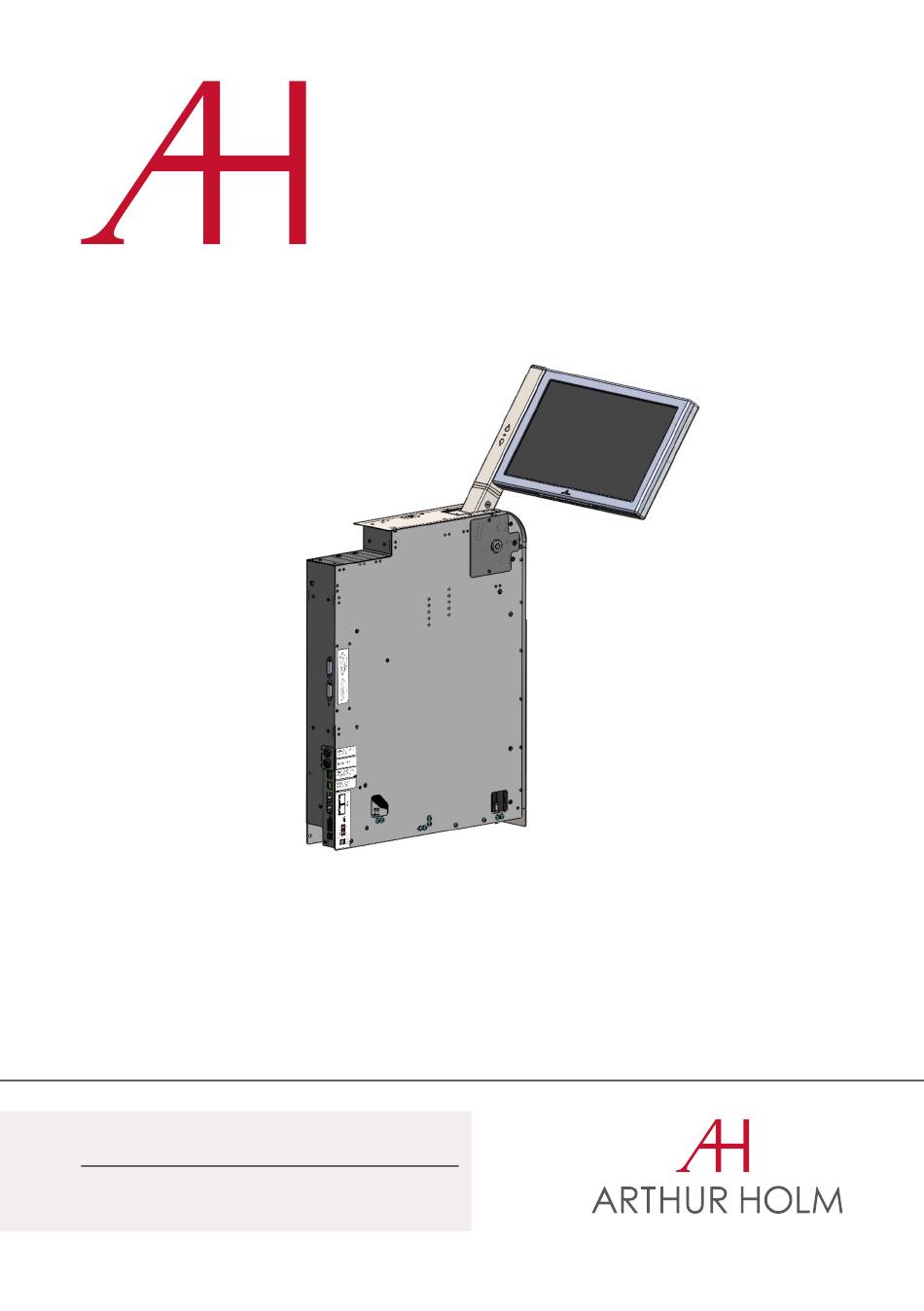

- Page 1 User Guide DynamicChairDisplay HDCP compliant aluminium motorised monitor for armrest integration Technology Serving Design Danish craftmanship Mediterranean soul...
-
Page 2: Table Of Contents
TABLE OF CONTENTS REGULATIONS AND SECURITY SAFETY INSTRUCTIONS SYSTEM DESCRIPTION INSTALLATION INSTRUCTIONS USER DESCRIPTION INPUT CONNECTORS CONTROLS OSD MENU AHnet VIDEO SIGNALS AHlink INFORMATION ON DISPOSAL WARRANTY TERMS AND CONDITIONS... - Page 3 WELCOME Thank you very much for purchasing an Arthur Holm product. Please, read these installation and operating instructions carefully and keep them in a safe place for future consultations. We remain at your entire disposal if you have any suggestions.
- Page 4 ABOUT US The Company Arthur Holm has its origins in the Danish furniture designer Jorgen Alex Jensen, who was active during the sixties and the seventies. His design inspiration and his concept of ergonomics have been continued by his family, who is the design force behind Arthur Holm product range. The...
-
Page 5: Regulations And Security
REGULATIONS AND SECURITY ATTENTION: Do not disassemble or modify the device in any way. This symbol warns of the presence of dangerous un-insulated voltages inside some of the components, of sufficient magnitude to expose people to risk of electronic shock. This symbol draws attention to important use and maintenance instructions in the manual that accompanies the unit. - Page 6 SAFETY INSTRUCTIONS Wiring connected to hazardous voltage requires installation by qualified personnel or the use of ready-made flexible cables. For your security, your equipment must be connected to an electrical outlet with grounding connection protection. Since the plug is used to disconnect the device, the operating electrical outlet must be in an easily accessible place.
-
Page 7: System Description
SYSTEM DESCRIPTION General DynamicChairDisplay is a retractable motorised monitor to be integrated in chair armrests. The monitor is only visible when it is in use and it is safely stored in the armrest when not needed. This elegant aluminium screen possess an automatic vertical extraction movement plus an additional manual rotation towards the user followed by a motorised tilt adjustment. - Page 8 DVI-I and DVI-D inputs Interactive Setup Display allowing the control setup and diagnose of the monitors. The monitor provides AH15DCDHD RS-422 I/O allowing the remote control of movements, speeds, safety settings, brightness, contrast and backlight. The monitors are equipped with AH-AMMC: an auto mechanical movement calibration system.
-
Page 9: Installation Instructions
Not complying with these direction will result in a lost of the Arthur Holm warranty. Albiral Display Solution S.L. shall not be held liable for any loss or injury incurred as a result of modifications made to goods by anyone other than the supplier or the supplier's authorised representative without the supplier's written permission. - Page 10 INSTALLATION INSTRUCTIONS Start up: Mount Fixation Assembly Start up: Adjust for Horizontal Alignment...
- Page 11 INSTALLATION INSTRUCTIONS Start up: Adjust for Vertical Alignment Normal Mounting and Removing of Armrest Monitor from Armrest...
-
Page 12: User Description
USER DESCRIPTION The arm is extracted automatically when the OPEN/CLOSE button is pressed. During the opening, the movement can be interrupted by pressing the button again. The monitor can now be rotated manually to the desired reading position. In this moment the two tilt buttons become active. Also, the LED in the OPEN/ CLOSE button switches to red. - Page 13 USER DESCRIPTION When the monitor is wanted stored, it must point downwards. Otherwise the drive system is locked. Green light in the LED of the OPEN/CLOSE button signals that the monitor is oriented correctly. When the monitor is oriented correctly, the LED in the OPEN button will be green.
-
Page 14: Input Connectors
INPUT CONNECTORS DVI 1/ DVI A: DVI-I input signal. Connect a DVI (digital) input signal and select DVI 1 on the OSD monitor menu. Use a DVI to VGA adaptor to connect an ARGB (analogue) input signal and select DVI-A on the OSD monitor menu. DVI 2: DVI-D input signal. -
Page 15: Controls
CONTROLS OSD monitor control The OSD buttons, to control or configure the monitor, are located below the screen: MENU Activates the OSD menu on screen. Exits the OSD menu when is active Selects the OSD menu function DOWN Moves the cursor down in the OSD menu Moves the cursor up in the OSD menu LEFT Moves the cursor left in the OSD menu... -
Page 16: Osd Menu
OSD MENU Accessing the menu system • With the OSD off, push the MENU button to activate the main OSD menu. • Press the UP and DOWN buttons to move from one function to another. Please refer to the following sections below to view a complete list of all the functions available for the monitor. - Page 17 OSD MENU Noise Reduction: Adjusts the image noise filter ∙ Off ∙ Low ∙ Medium ∙ High ∙ Default Screen: (Only for analogue signals) ∙ Auto Adjust ∙ Horizontal Position ∙ Vertical Position ∙ Size ∙ Phase Backlight: Adjusts the backlight screen's level Colour Range: Adjusts the colour range ∙...
- Page 18 OSD MENU Option Language: OSD language selection Restore Factory Default: Adjusts the parameters to the initial factory parameters Blending: OSD window transparency ∙ Low ∙ Medium ∙ High ∙ Off OSD Duration: Adjusts the time that the OSD menu window remains on the screen Software Update (USB): Port to use for firmware's upgrade.
-
Page 19: Ahnet
AHnet PROTOCOL Communications protocol COMMUNICATION RS422 CONNECTION RJ45 WIRING CAT-6 Speed and configuration BAUD RATE 38400 DATA BITS PARITY NONE STOP BITS Wiring Diagram 1. Data TX + 2. Data TX – 3. Data RX + 4. NC 5. NC 6 .Data RX –... - Page 20 AHnet PROTOCOL AHnet protocol Uses 5 bytes communication: BYTE 0 START BYTE BYTE 1 ADDRESS BYTE BYTE 2 COMMAND BYTE BYTE 3 VALUE 1 BYTE 4 VALUE 2 Commands COMMAND DESCRIPTION RESPONSE FA XX 01 01 00 GO UP FB XX 01 01 00 FA XX 01 00 00 GO DOWN FB XX 01 00 00...
- Page 21 AHnet PROTOCOL BITE CLOSED OPENED SCREEN ON SCREEN OFF DVI-A DVI 1-D DVI 2-D PROTECTION STOP MONITOR OK BITE BUTTON LOCK BUTTON UNLOCK To send an order to all the monitors, you must use the address: 249 Dec. (Byte1) F9 Hex. (Byte1) In this case, the units do not respond...
-
Page 22: Video Signals
VIDEO SIGNALS RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type 800x600@60Hz 37.879 60.317 Progressive 800x600@72Hz 48.077 72.188 Progressive 800x600@75Hz 46.875 75.000 Progressive 1024x768@60Hz 48.363 60.005 Progressive 1024x768@70Hz 56.476 70.070 Progressive 1024x768@75Hz 60.023 75.030 Progressive 1280x720@60Hz 44.772 59.855 Progressive 1360x768@60Hz 47.720 59.799 Progressive... -
Page 23: Ahlink
AHlink AHlink is used to control and set up the unit By default, the AHLink wireless signal is deactivated. To activate it, please press and hold the Open / Close button 5 seconds. wireless AHLink signal automatically deactivates when there is no device connected during more than 2 minutes. - Page 24 AHlink If your AH device does not appear screen, AHLink signal might no longer be active. The AHLink name always begins with characters “AH” followed by the four last MAC AHLink address. You must select the AH device. After selecting the AH device, the first page will upload on your screen.
- Page 25 AHlink SERIAL Serial number of the unit Firmware version Controls the Up and Down monitor movements DISP: Turns the display ON or OFF DVIA, DVI1, DVI2: Input source selection BACKL: Backlight adjustments CONTR: Contrast adjustments BRIGHT: Brightness adjustments SAVE VALUES: Memorises the backlight, contrast and brightness values AHLINK OFF: Turns off the AHlink signal COMMAND: Information of the last AHnet...
-
Page 26: Information On Disposal
INFORMATION ON DISPOSAL FOR USERS OF WASTE ELECTRICAL & ELECTRONIC EQUIPMENT This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to the designated collection points, where they will be accepted on a free of charge basis. -
Page 27: Warranty Terms And Conditions
WARRANTY TERMS AND CONDITIONS Albiral Display Solutions warrants this product against manufacturing defects and workmanship for a period of two (2) years from the date of purchase, subject to the conditions below. LCD panel, inverter, controller, electrical, electronic boards, engine, mechanical parts, accessories and power supply are warranted against manufacturing defects and workmanship for a period of two (2) years from the date of purchase. - Page 28 If you have any doubts concerning the terms of this warranty, please contact: business@albiral.com +34 938 502 376 Copyright © Nov. 2020. All rights reserved Albiral Display Solutions SL. Registered trademarks: Albiral, Arthur Holm...
- Page 30 Patents P27178ITEP P27178RUPC MU17180ES00 P27178USPC MU17301ES00 P27284DEEP MU17322ES00 P27284EPPC MU17413ES00 P27284ESEP MU17445ES00 P27284GBEP MU17854ES00 P27284RUPC MU17868DEPC P27284USPC MU17868RUPC P27715ESEP P24821DEEP P28089DEEP P24821ESEP P28089ESEP P24821GBEP Fàtima 25, Sant Hipòlit de Voltregà P28089ITEP P24821USPC 08512 Barcelona – Spain P28089USPC P27178DEEP tel: +34 93 850 23 76 / 23 83 P28090EP00 P27178EPDV01 fax: +34 93 850 25 50 / 23 72...
