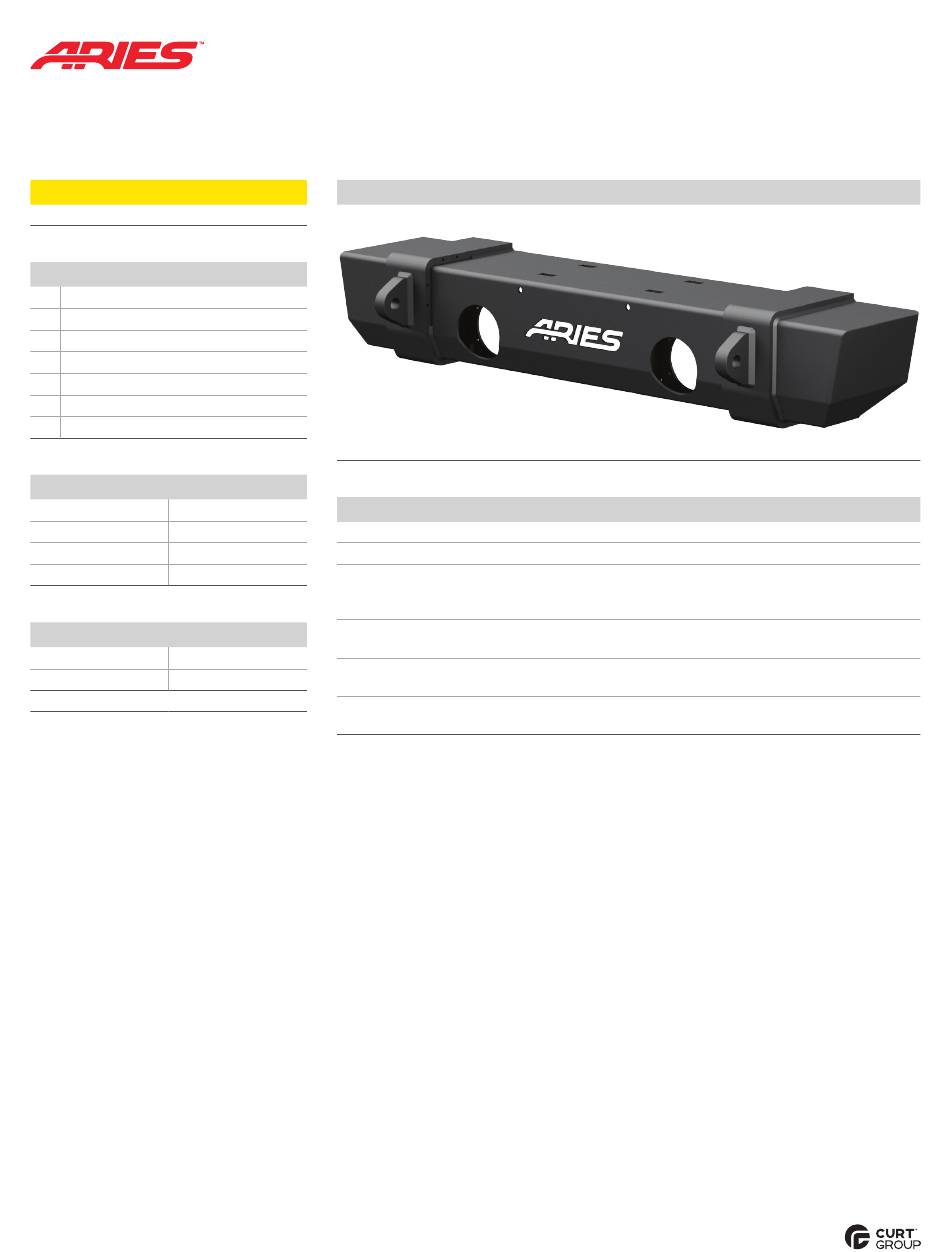

INSTALLATION MANUAL
Level of Difficulty
Moderate
Parts List
1
TrailCrusher
bumper
™
8
Socket cap screw, M4
8
Nylock nut, M4
8
Flat washer, M12 x 24mm
8
Lock washer, M12
8
Hex nut, M12
8
Backup washer
Tools Required
Torque wrench
Socket extension
Box wrench set
Socket set
Phillips screwdriver
Allen wrench set
Level
Flathead screwdriver
Torque Specifications
M4 bolt
16 ft-lbs.
M12 bolt
70 ft-lbs.
Use above torque setting unless otherwise noted
ARIESAUTOMOTIVE.COM

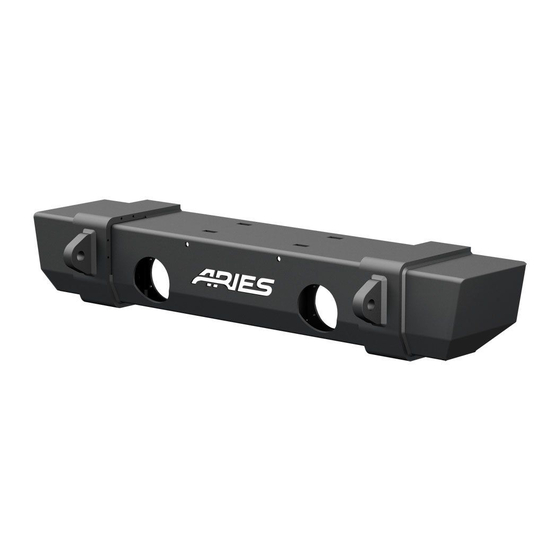

Product Photo
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
•
NEED ASSISTANCE?
•
877.287.8634
•
2156000-INS-RC
•
PAGE 1
2156000
Advertisement
Related Manuals for Curt Group Aries TrailCrusher 2156000
Summary of Contents for Curt Group Aries TrailCrusher 2156000
- Page 1 INSTALLATION MANUAL 2156000 Level of Difficulty Product Photo Moderate Parts List TrailCrusher bumper ™ Socket cap screw, M4 Nylock nut, M4 Flat washer, M12 x 24mm Lock washer, M12 Hex nut, M12 Backup washer Tools Required Notes and Maintenance Torque wrench Socket extension Box wrench set Socket set...
- Page 2 Step 1 Using a flathead screwdriver, pry and remove four plastic push pins holding the air dam in place. Remove the air dam from underneath the vehicle. Once removed, pry off the fasteners holding the brackets to the frame. Step 2 From behind the bumper, disconnect the wiring harness attached to each fog light.
- Page 3 Step 4 When facing the Jeep head-on, slide the cover to the left to expose the driver side bolts holding the bumper in place. Remove the four nuts holding the bolts onto the bumper frame with an 18mm socket. Repeat this step on the passenger side. Step 5 When all the bolts have been removed carefully lift the bumper from the frame...
- Page 4 Step 7 Set the fog lights into the new, ARIES bumper. Each light will have four attachment points. Install the fog lights using four M4 socket cap screws and four M4 nylock nuts. Tighten with a 7mm socket and included Allen wrench. Repeat this step for the other light.
- Page 5 Step 11 If a winch is being installed on the ARIES bumper, use the supplied backup washers in conjunction with the mounting hardware supplied with the winch. 1. Backup washer 2. Winch mounting hardware (hardware not included) Step 12 Check to make sure the bumper is level. Adjust if necessary and fully tighten all hardware to the recommended torque specifications listed in the table on the first page.
