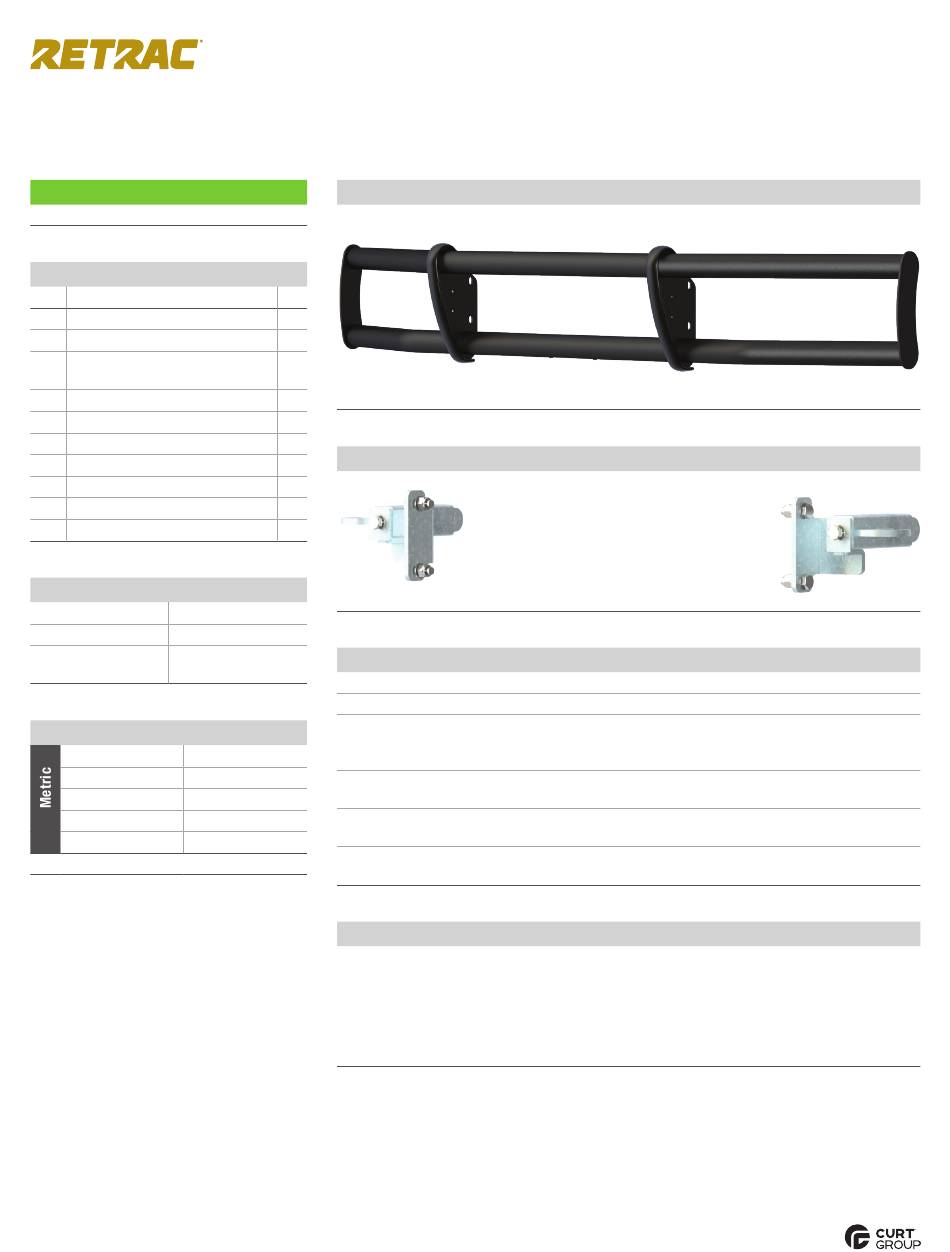

INSTALLATION MANUAL
Level of Difficulty
Easy
Parts List
Qty
Description
1

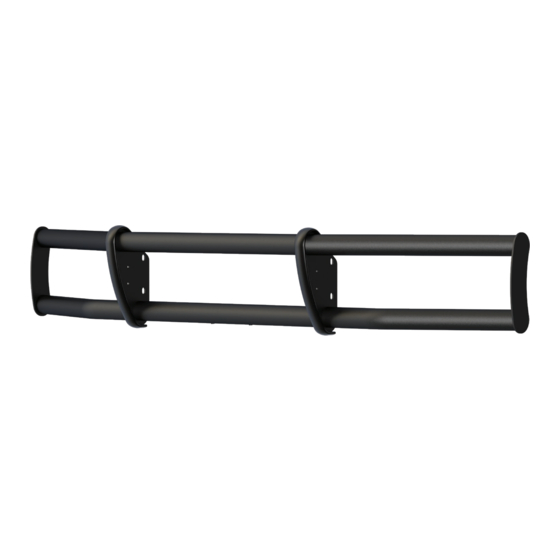

Bumper guard
1
Driver / left mounting bracket
1
Passenger / right
mounting bracket
2
Tow hook mounting bar
4
Hex bolt, M16 x 50mm
2
Hex bolt, M16 x 70mm
2
Lock washer, M16
10
Flat washer, M16
4
Nylock nut, M16
2
Spacer
Tools Required
Ratchet
Cutting tool
Socket, 24mm
Paint marker
Torque wrench,
Panel trim
24mm
removal tool
Torque Specifications
M6 bolt
8 ft-lbs.
M8 bolt
19 ft-lbs.
M10 bolt
37 ft-lbs.
M12 bolt
65 ft-lbs.
M16 bolt
160 ft-lbs.
Use above torque setting unless otherwise noted
RETRACMIRRORS.COM
Product Photo
#
1
2
3
4
5
6
Brackets and Hardware
7
8
9
10
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
Product Registration
CURT Group stands behind our products with industry leading warranties.
You can help us continue to improve our product line and help us understand
your needs by registering your purchase by visiting:
warranty.curtgroup.com/surveys
At CURT Group, customer is king. We value your feedback and we use that information to make
improvements on our products. Please, take a minute and let us know how we are doing.
•
NEED ASSISTANCE?
•
877.287.8634
Passenger / right
mounting bracket
•
207700-INS-RA
•
PAGE 1
207700
Driver / left
mounting bracket
