INSTALLATION MANUAL
Level of Difficulty
Easy
Parts List
1 Milestone bumper guard
™
1 Driver / left mounting bracket
1 Passenger / right mounting bracket
2 Tow hook mounting bar
2 Mounting bracket spacer
2 Adjustable mounting bracket
12 Hex bolt, M16
8 Nylock nut, M16
18 Flat washer, M16
4 Lock washer, M16
Tools Required
Ratchet Torque wrench,
24mm
Socket, 24mm --
Torque Specifications
M6 bolt 8 ft-lbs.
M8 bolt 19 ft-lbs.
M10 bolt 37 ft-lbs.
M12 bolt 65 ft-lbs.
M16 bolt 160 ft-lbs.
Use above torque setting unless otherwise noted
RETRACMIRRORS.COM

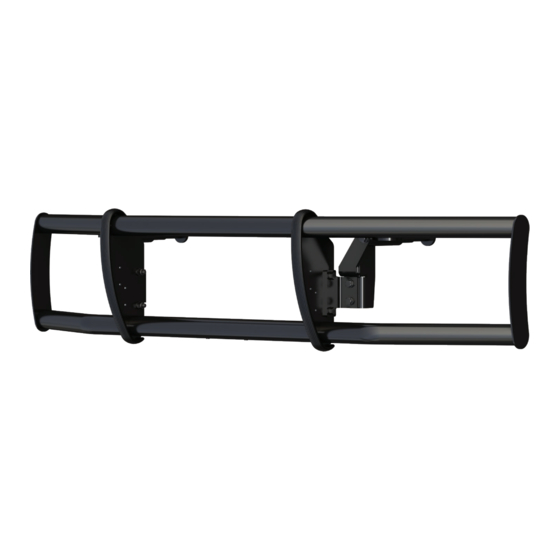

Product Photo
Brackets and Hardware
NOTICE
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
Maintenance
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Product Registration and Warranty
CURT Group stands behind our products with industry-leading warranties.
Provide feedback and help us to improve our products by registering your purchase at:
warranty.curtgroup.com/surveys
• NEED ASSISTANCE? • 877.287.8634
Passenger / right
mounting bracket
• 207800-INS-RA • PAGE 1
207800
Driver / left
mounting bracket
