INSTALLATION MANUAL
Level of Difficulty
Easy
Parts List
#
Qty
Description
1
1
Bumper guard
2
1
Driver / left tow hook bracket
3
1
Passenger / right
tow hook bracket
4
1
Driver / left mounting bracket
5
1
Passenger / right
mounting bracket
6
2
Adjustable mounting bracket
7
18
Hex bolt, M16
8
36
Flat washer, M16
9
18
Nylock nut, M16
Tools Required
Ratchet
Socket, 24mm
Wrench, 24mm
Socket, 3/4"
Wrench, 3/4"
Socket, 15/16"
Wrench, 15/16"
--
Torque Specifications
M16 bolt
160 ft-lbs.
Use above torque setting unless otherwise noted
RETRACMIRRORS.COM

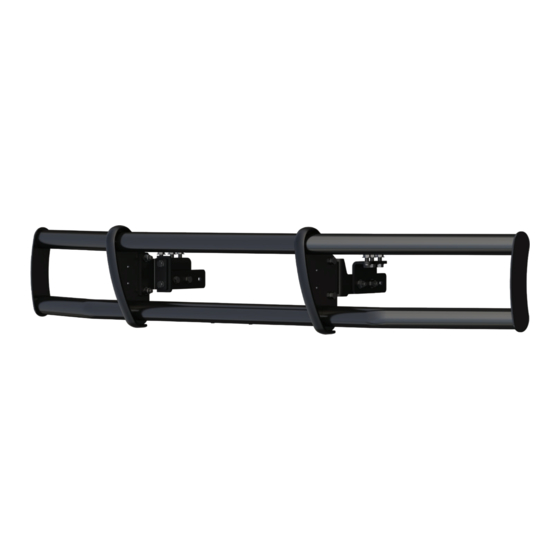

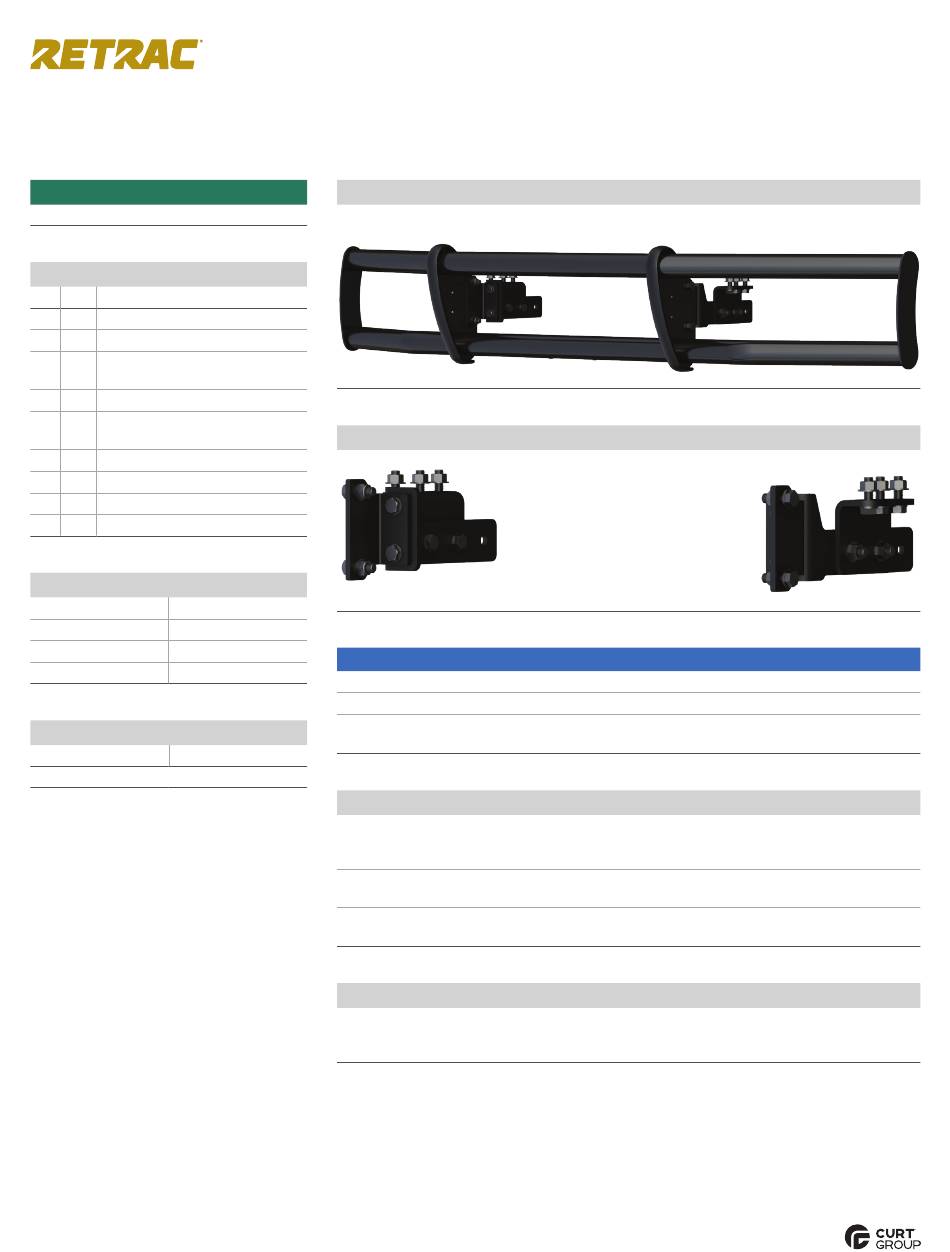

Product Photo
Brackets and Hardware
NOTICE
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
Maintenance
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Product Registration and Warranty
CURT Group stands behind our products with industry-leading warranties.
Provide feedback and help us to improve our products by registering your purchase at:
warranty.curtgroup.com/surveys
•
NEED ASSISTANCE?
•
877.287.8634
Passenger / right
mounting bracket
•
207770-INS-RA
•
PAGE 1
Driver / left
mounting bracket
207770
Advertisement
Table of Contents
Related Manuals for Curt Group RETRAC 207770
Summary of Contents for Curt Group RETRAC 207770
- Page 1 Product Registration and Warranty CURT Group stands behind our products with industry-leading warranties. Provide feedback and help us to improve our products by registering your purchase at: warranty.curtgroup.com/surveys...
- Page 2 ASSEMBLY Parts List Description Bumper guard Driver / left tow hook bracket Passenger / right tow hook bracket Driver / left mounting bracket Passenger / right mounting bracket Adjustable mounting bracket Hex bolt, M16 Flat washer, M16 Nylock nut, M16 RETRACMIRRORS.COM •...
- Page 3 Step 1 Remove the front bumper by removing the four factory bolts with a 3/4" socket and wrench. Step 2 Remove the factory tow hooks from the passenger and driver side using a 15/16" socket and wrench. Step 3 Secure the passenger-side tow hook bracket (#3) to the frame using three M16 hex bolts (#7), six M16 flat washers (#8) and three M16 nylock nuts (#9).
- Page 4 Step 4 Secure the mounting brackets (#4, #5) to the tow hook brackets (#2, #3) using two M16 bolts (#7), four M16 flat washers (#8) and two M16 nylock nuts (#9) on each side. Snug the hardware, but do not fully tighten. Step 5 Secure the adjustable mounting brackets (#6) to the mounting brackets (#4, #5) using...
