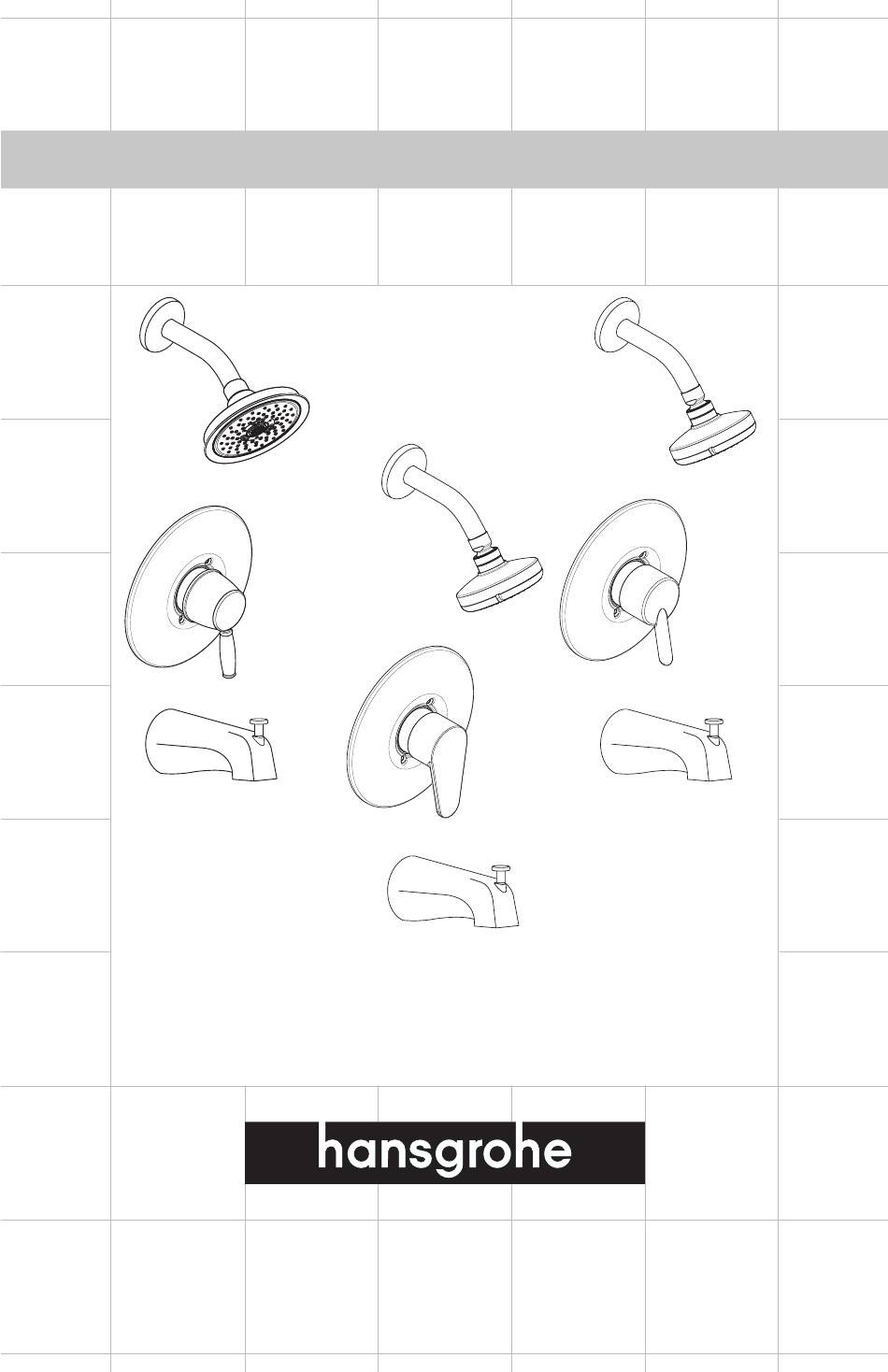

- Page 1 Installation Instructions / Warranty IP C IP S 04210000 04203000 04211000 04204000 04212000 04205000 IP E 04199000 04200000 04201000...
- Page 2 IP Trim Sets Valve trim only IP C 04212000 IP E 04201000 IP S 04205000 Shower set (includes valve trim, shower arm, showerhead) IP C 04211000 IP E 04200000 IP S 04204000 Tub/shower set (includes valve trim, shower arm, IP E valve trim 04201000 showerhead, tub spout) IP C 04210000...
-
Page 3: Installation Considerations
½" G ½ 3¼" 4" 5¼" IP C showerhead IP E,S showerhead 1.6 GPM max 1.6 GPM max Full spray, massage, intense Full spray, massage, intense massage massage Installation considerations • For best results, Hansgrohe recommends that • The max. flow rate of the showerhead is 1.6 this unit be installed by a licensed, profes- GPM. -
Page 4: Trim Installation
Trim installation Turn the water off at the main before beginning. Remove the cover (1), bonnet nut (2), and test cap (3), from the valve body. If the screen (5) is still present, remove it as well. If the valve is installed in a fiberglass or acrylic enclo- sure, the plaster shield (4) must remain in place. - Page 5 Install the o-ring on the cartridge. It should rest just behind the bonnet nut. Push the sleeve over the cartridge, body, and o-ring. Remove the backing from the sealing tape. Press the sealing tape around the reverse of the escutcheon. Install the escutcheon.
- Page 6 If the water is hotter than the maximum temperature permitted by local code (110° - 112°F in many areas), reset the rotational limit stop (see below). Install the handle adapter and screw. Install the handle. Tighten the handle screw with a 3mm Allen wrench.
-
Page 7: Cartridge Removal
Cartridge removal If the cartridge must be removed for any reason, follow these steps. Turn the water off at the main. Remove the handle and sleeve. Remove the bonnet nut. Position the handle on the stem. Turn counter- clockwise approximately ¼ turn after the stop is contacted. -
Page 8: Showerhead Installation
Tub spout installation Seal the wall around the nipple with waterproof sealant. Failure to seal the wall can lead to possible water damage. Wrap the threads on the nipple with several layers of Teflon thread tape. Screw the tub spout to the nipple. Tighten with a strap wrench to prevent damage to the finish. - Page 9 Showerhead user instructions All models: If the flow of water diminishes over time, remove and clean the filter gasket. Change the spray modes IP C showerhead only – turn the function ring to the desired spray mode. function ring IP E,S showerhead only – push the function lever to the desired spray mode.
- Page 10 To remove heavier scale deposits, pour about 3/4" of a commercial scale remover such as Lime-Away or CLR, into a shallow dish. Be sure to follow the label instructions! Soak the spray face for the amount of time specified in the label instructions.
-
Page 11: Limited Consumer Warranty
Cleaning Recommendation for Hansgrohe Products Modern bathroom faucets, kitchen faucets and shower products are made from different materials to comply with the needs of the market with regard to design and functionality. To avoid damage to the product, it is necessary to take proper care of it. For best results: •... -
Page 12: Exclusions And Limitations
Accessories, connected materials and products, or related products not manufactured by Hansgrohe. Any Hansgrohe or Axor product sold for display purposes. Hansgrohe Water Filtration System is subject to a 1-year limited warranty. Warranty does not include replacement filters. To oBTAIN WARRANTY PARTS oR INFoRMATIoN Contact your Hansgrohe retailer, or contact Technical Service at: Hansgrohe, Inc.
