Sff Configuration Cable Routing - HPE ProLiant DL360 Gen10 User Manual

Option kit
10 SFF SAS/SATA/NVMe
Combo backplane

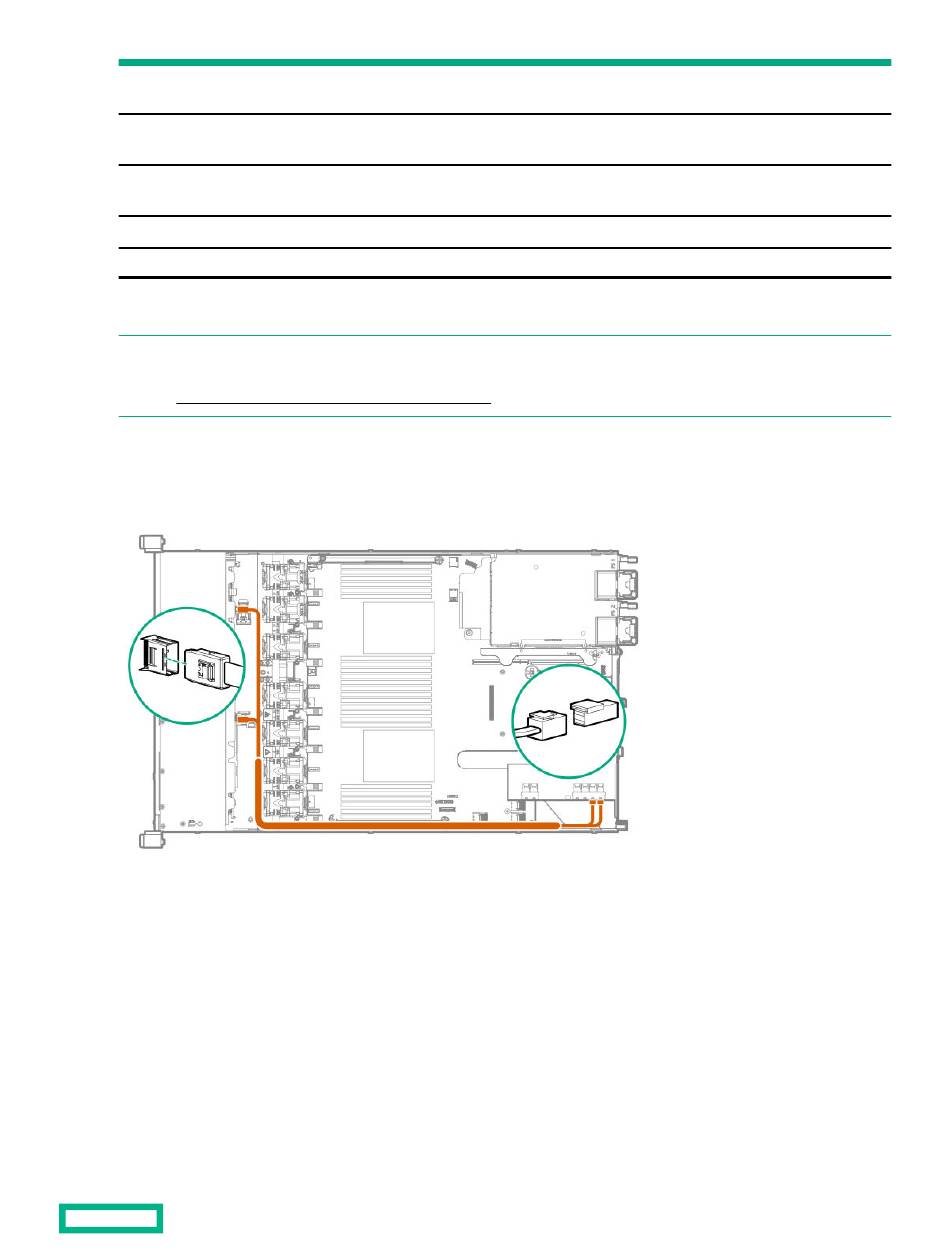

SFF configuration cable routing

NOTE: The following information describes the standard cable routing for this component. For more information on
optional cable routing, see the HPE ProLiant DL360 Gen10 Server cabling matrix on the Hewlett Packard Enterprise
website (http://www.hpe.com/info/CablingMatrixGen10).
SFF backplane to P824i-p controller
8 SFF to ports 1i/2i in the primary
Cable part number
876868-001
869675-001
869676-001
869681-001
869680-001
Connects from
1 SFF Rear Backplane
10 SFF backplane, SAS port
10 SFF backplane, ports 1, 2,
and 3
10 SFF backplane, port 5
10 SFF backplane, port 4
Connects to
P816i-a Smart Array
Controller
P408i-a controller
NVMe riser, ports 1, 2, and 3
NVMe riser, port 5
NVMe riser, port 4
147
Cabling
