Wiring diagram
Conductivity sensor, conductive
Conductivity sensor, conductive, with Pt100/Pt1000
Standard signal output 1,
0/4...20 mA (recorder, actuator)
Limit value relay, timer, actuator 1

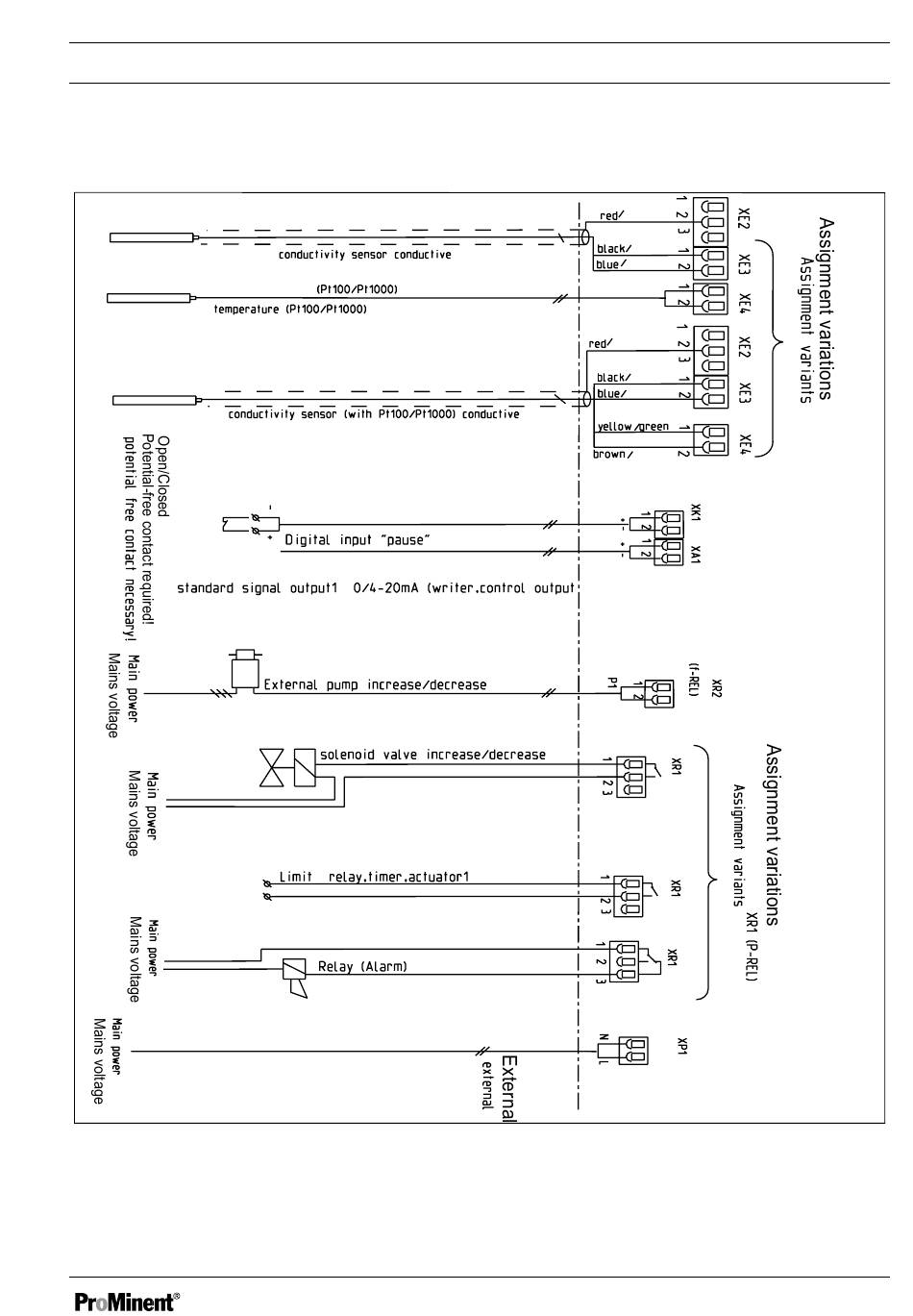

Fig. 13: Wiring diagram
Temperature sensor
"Pause" digital input
Raise/lower external pump
Raise/lower solenoid valve
Relay (alarm)
Assembly and installation
Red
Black
Blue
Red
Black
Blue
Yellow/Green
Brown
A1613
37
