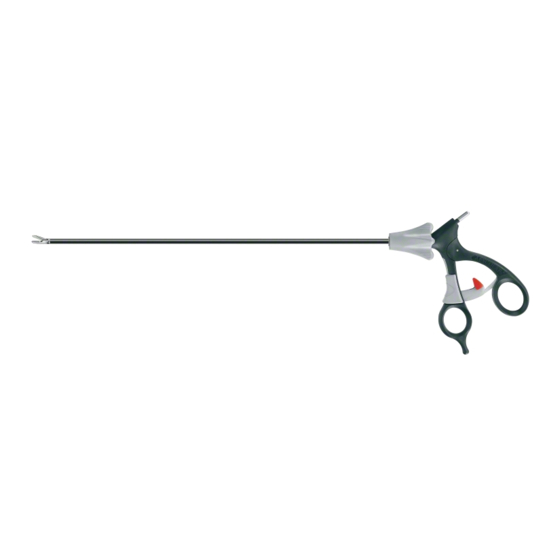

B. Braun Aesculap AdTec monopolar Quick Manual

Aesculap Endoscopic Technology

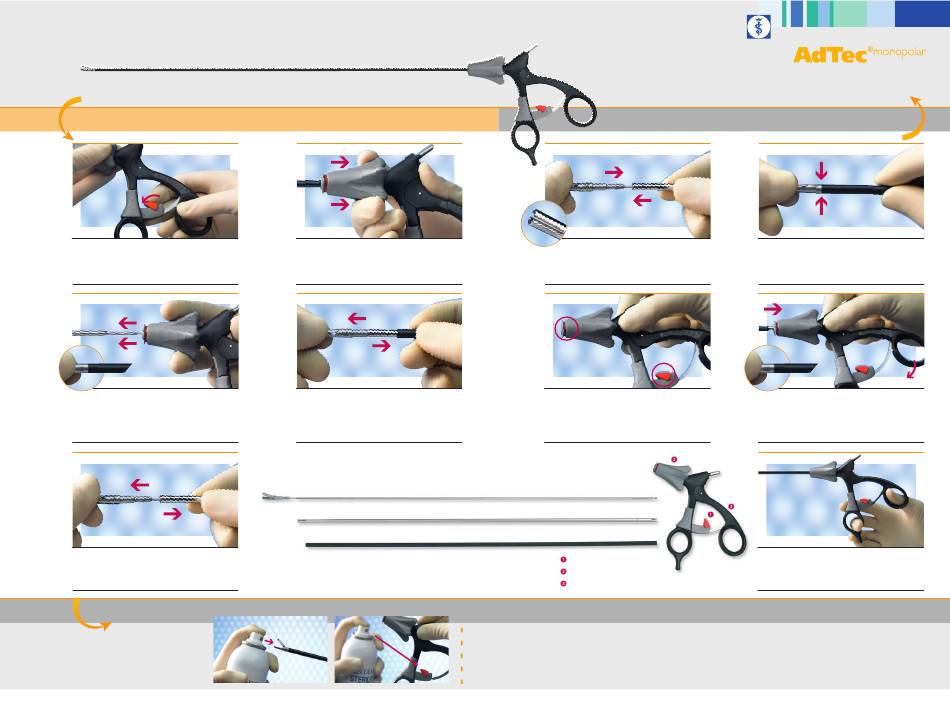

D I S A S S E M B L Y
Deactivate ratchet on ratchet handle
I
Flip down red toggle switch.
N.B.: for PO959R only
Remove shaft from handle
III
Remove the shaft by pulling the
instrument shaft out of the handle.
Disassemble shaft II
V
Hold the jaw insert at the tip and remove
the inner metal tube.
C A R E
Lubricate the defined places on the
instruments (instruments jaw and
red toggle switch) with Aesculap
Sterilit Oil after each cleaning cycle.
Disconnect shaft and handle
II
Pull rotation knob back until it locks in place. A red
ring becomes visible.
Important: Do not hold on to the movable handle component.
Disassemble shaft I
IV
Hold the jaw insert at the tip and remove the outer
insulation tube.
P R O C E S S I N G & A C C E S S O R I E S
Reprocess the product immediately after use
The product can be sterilized either in disassembled or in assembled condition
For advice on cleaning, disinfection and sterilization, please follow the instructions for use
For the latest information on reprocessing, please also refer to the Aesculap Extranet via www.aesculap-extra.net
For accessories and spare parts, please refer to Brochure C766 or visit www.endoscopy-catalog.com
Assemble shaft I
I
Slide the metal inner tube onto the jaw insert
with its four spring tongues towards the working
end until the tongues snap in place.
Prepare handle
III
If the red ring is not visible, pull the rotation knob
back. Deactivate the ratchet by flipping down the
red toggle switch.
N.B.: for PO959R only
jaw insert
inner metal tube
outer insulation tube
toggle switch
rotation knob
movable handle component
A S S E M B L Y
Assemble shaft II
II
Slide the outer insulation tube as far as it will go
over the inner metal tube.
Connect shaft and handle
IV
Hold the shaft firmly by its tip and the handle behind
the rotation knob. Push the shaft into the handle until
it locks in place and the red ring disappears.
Important: Do not hold on to the movable handle component.
Function test
V
Test the assembly of the instrument by opening and
closing the handle to ensure the jaw is opening and
closing.
R E P A I R S
In order to ensure the preservation of full guarantee and
warranty rights, only persons authorized by Aesculap may
carry out repairs.
Please send products for repair to: Aesculap Technical Service,
Am Aesculap-Platz, 78532 Tuttlingen, Germany.
Additional service addresses may be obtained from the same
address or via ats@aesculap.de
