Eco KF Titrator
Product information
8.1027.8002EN / 2021-08-27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eco KF Titrator and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Metrohm Eco KF Titrator

Summary of Contents for Metrohm Eco KF Titrator

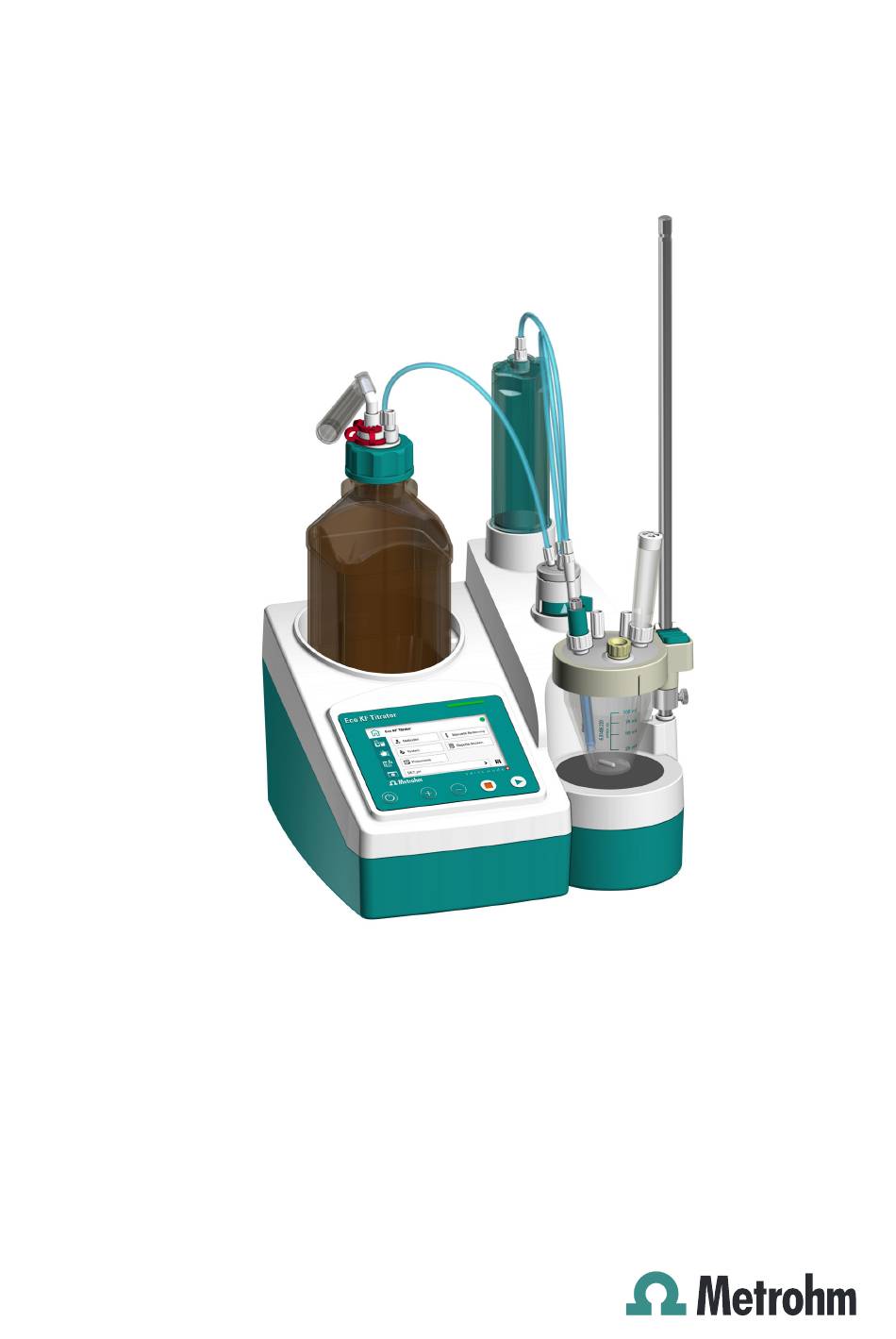

  • Page 1 Eco KF Titrator Product information 8.1027.8002EN / 2021-08-27...
  • Page 3 Metrohm AG Ionenstrasse CH-9100 Herisau Switzerland +41 71 353 85 85 info@metrohm.com www.metrohm.com Eco KF Titrator Product information 8.1027.8002EN / 2021-08-27...
  • Page 4 Disclaimer Deficiencies arising from circumstances that are not the responsibility of Metrohm, such as improper storage or improper use, etc., are expressly excluded from the warranty. Unauthorized modifications to the product (e.g. conversions or attachments) exclude any liability on the part of the manufacturer for resulting damage and its consequences.

  • Page 5: Table Of Contents

    Table of contents Table of contents 1 Overview Product description .............. 1 Product versions ..............2 Eco KF Titrator – Overview ..........3 Symbols and conventions ............ 7 Additional information ............7 Accessories ................7 2 Safety Intended use ................. 9 Responsibility of the operator ..........

  • Page 7: Overview

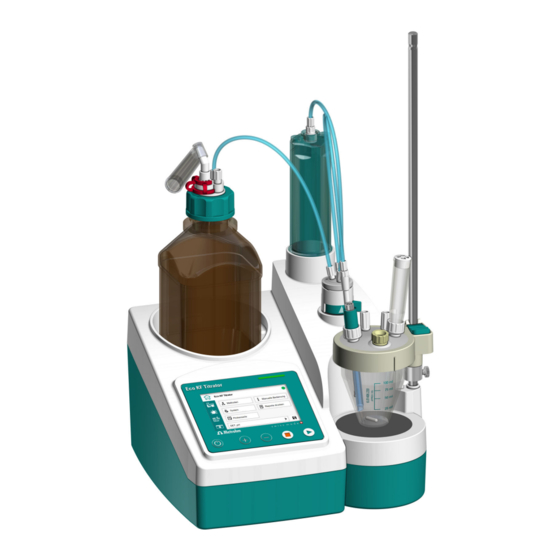

    Overview 1 Overview Product description The Eco KF Titrator is an instrument with built-in stirrer used for volumetric water content determination. Conditioning is automatically carried out before and after the actual titration. Reagent dosing is controlled in such a way that a predefined endpoint is reached as quickly and precisely as pos- sible.

  • Page 8: Product Versions

    Solvent Pump assembly The required numbers for the customer service can be found on the type plate (see example): Figure 2 Type plate (example) (01) = External article number (21) = Serial number (240) = Metrohm article number ￭￭￭￭￭￭￭￭...

  • Page 9: Eco Kf Titrator - Overview

    Information on the accessories for the respective product version can be obtained either on the Internet at http://www.metrohm.com from your regional Metrohm representative. Eco KF Titrator – Overview Figure 3 Eco KF Titrator – Front Bottle holder Connector for cylinder unit...
  • Page 10 Eco KF Titrator – Overview ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Flat stopcock Stand attachment Magnetic stirrer Indicators/Controls Figure 4 Eco KF Titrator – Rear Type plate USB (USB 1 and USB 2) Connect USB flash drive, printer, balance, etc. Ethernet (RJ-45) Remote Remote control via local network...
  • Page 11 ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Overview Figure 5 Eco KF Titrator – Accessories Cylinder unit Tubing connections Support rod Titration cell Clamping ring Bottle unit ￭￭￭￭￭￭￭￭...
  • Page 12 Eco KF Titrator – Overview ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Figure 6 Eco KF Titrator – Peripherals Printer Q3X (opt. accessory) USB flash drive Ethernet cable (opt. accessory) Solvent Pump (opt. accessory) Power supply unit ￭￭￭￭￭￭￭￭...

  • Page 13: Symbols And Conventions

    ￭ https://guide.metrohm.com Accessories Up-to-date information on the scope of delivery and on optional accesso- ries can be found on the Metrohm website. Download this information as follows: Downloading the accessories list 1 Go to https://www.metrohm.com. 2 Enter the article number of the product (e.g. 2.1001.0010) into the search field.
  • Page 14 Accessories ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ The PDF file with the accessories data is loaded. NOTICE Metrohm recommends downloading the accessories list from the Internet and keeping it for reference purposes. ￭￭￭￭￭￭￭￭...

  • Page 15: Safety

    Safety 2 Safety Intended use The Eco KF Titrator is designed for usage as a titrator in analytical labora- tories. Its main application field is volumetric Karl Fischer titration. This instrument is suitable for processing chemicals and flammable samples. Usage therefore requires the user to have basic knowledge and experience in handling chemicals.

  • Page 16: Requirements For Operating Personnel

    Always have maintenance work and repairs on electrical components ￭ carried out by a regional Metrohm service representative. Disconnect the product from the energy supply immediately if at least ￭ one of the following cases occurs: –...

  • Page 17: Danger From Highly Flammable Substances

    Dispose of chemically contaminated materials (e.g. cleaning material) in ￭ accordance with regulations. Proceed as follows in case of a return shipment to Metrohm AG or a ￭ regional Metrohm representative: – Decontaminate the product or product component.

  • Page 18: Danger During Transport Of The Product

    Design of warning messages ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 2.4.5 Danger during transport of the product Chemical or biological substances may be spilled during the transport of the product. Parts of the product may fall down or may be damaged. There is a risk of injury from chemical or biological substances and pieces of broken glass.

  • Page 19: Meaning Of Warning Signs

    ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Safety WARNING Type or source of danger Consequences when not observing the notice: A serious injury that may result in death is probable. Measures to avoid the danger ￭ CAUTION Type or source of danger Consequences when not observing the notice: A minor to moderate injury is probable.
  • Page 20 Meaning of warning signs ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Warning sign Meaning Warning of flammable materials Warning of corrosive substances Warning of optical radiation Warning of laser beams Depending on the intended use of the product, the corresponding warn- ing sign stickers must be placed on the product. ￭￭￭￭￭￭￭￭...

  • Page 21: Technical Specifications

    ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Technical specifications 3 Technical specifications Ambient conditions Nominal function range +5 to +45 °C max. 80% relative humidity, non- condensing Storage +5 to +45 °C Energy supply External power supply unit Input Nominal voltage range 100–240 VAC Frequency range 50–60 Hz Current max.

  • Page 22: Dimensions

    Dimensions ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Current at the power supply unit 500 mA max. output current per channel Protection Internal fuse 1.5 A Dimensions Measurements Width 286 mm Height without cylinder unit 220 mm with cylinder unit 358 mm with support rod 508 mm Depth 286 mm Weight...

  • Page 23: Connectors Specifications

    D-Sub 9-pin Ethernet CAT 6 Type Socket RJ-45 Cable type min. FFTP shielded Cable length max. 10 m from Metrohm acces- sories Type Socket type A Cable type shielded Cable length max. 5 m from Metrohm acces- sories Measuring inputs...

  • Page 24: Display Specifications

    Display specifications ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Display specifications Display Type VGA color display Size approx. 4.3" diagonal Resolution 480 × 272 pixels Status display green Operation specifications Touch panel Type resistive Resistance to chemicals resistant to the following chemicals (no visible changes after 24 h of dura- tion of action): ethanol methanol...

  • Page 25: Stirrer Specifications

    ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Technical specifications Measuring accuracy applies to all measuring ranges without sensor error, under reference conditions, measuring interval 100 ms, ambient temperature +25 °C (± 3 °C), relative humidity ≤ 60% Stirrer specifications Variant magnetic Adjustment range for rotational +1 to +15 120–1,800 rpm speed Rotational speed change per step...
