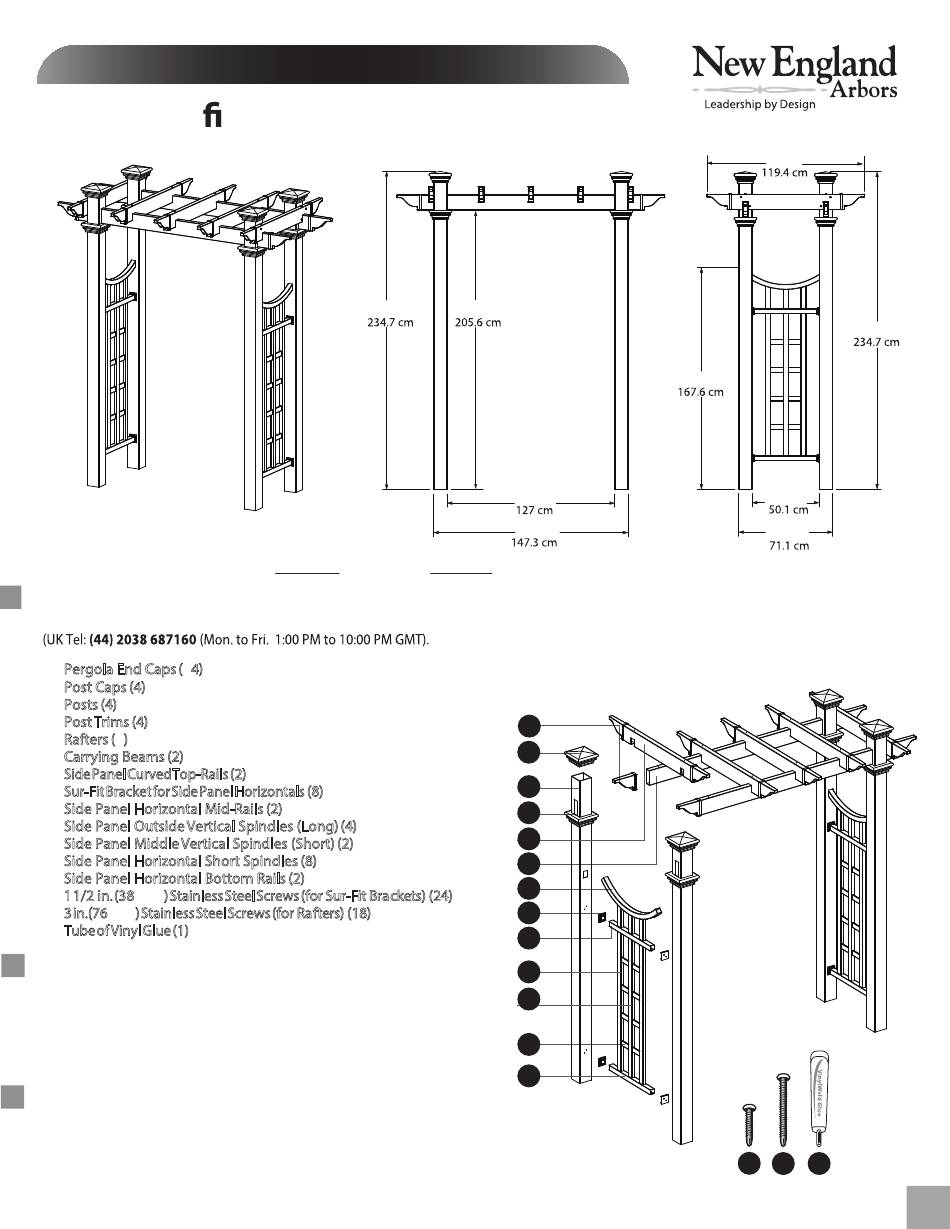

New England Arbors The Fairfield Deluxe Arbor/Arch Assembly Instructions

A S S E M B LY I N S T R U C T I O N S

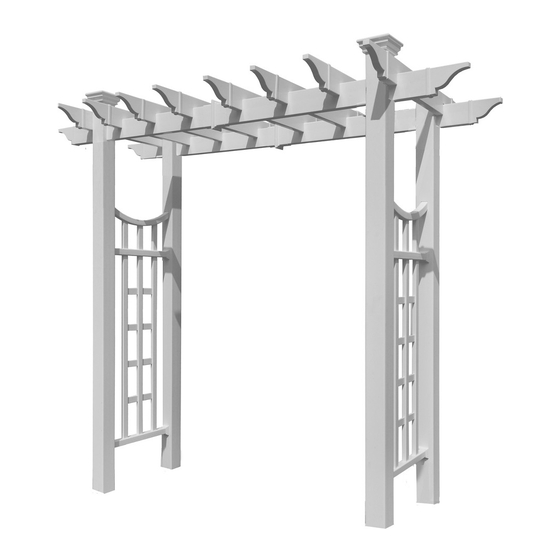

The Fair eld Deluxe Arbor / Arch
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.

Check Box for These Contents

In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346 (Mon. to Fri. 8:00 AM to 4:00 PM EST) .
1. Pergola End Caps (14) -
10700-1
2. Post Caps (4) -
10735-1
3. Posts (4) -
4" x4" x 90.5" (10.2 x 10.2 x 230 cm) - 10736-1
4. Post Trims (4) -
10737-1
5. Rafters (5) -
33.5" (85 cm) - 10734-1
6. Carrying Beams (2) -
66.5" (169 cm) - 10739-1
7. Side Panel Curved Top-Rails (2) -
8. Sur-Fit Bracket for Side Panel Horizontals (8) -
9. Side Panel Horizontal Mid-Rails (2) -
10. Side Panel Outside Vertical Spindles (Long) (4) -
11. Side Panel Middle Vertical Spindles (Short) (2) -
12. Side Panel Horizontal Short Spindles (8) -
13. Side Panel Horizontal Bottom Rails (2) -
14. 1 1/2 in. (38 mm) Stainless Steel Screws (for Sur-Fit Brackets) (24) -
15. 3 in. (76 mm) Stainless Steel Screws (for Rafters) (18) -
16. Tube of Vinyl Glue (1) -
20000

Tools You Will Need

• Hammer
• Tape Measure
• Level
• Stool or Short Ladder
• Shovel or Auger
• Cordless Drill

General Information

• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 10'x 8' (3 m x 2.4 m) for unobstructed assembling.
• You should not need to use excessive force when assembling components.
92.4 in
10740-1
10730-1
19.75" (50.2 cm) - 10741-1
52.75" (134 cm) - 10742-1
52.125" (132.4 cm) - 10743-1
11.85" (30 cm) - 10744-1
19.75" (50.2 cm) - 10745-1
20007
81 in
50 in
58 in
1
2
3
4
5
6
7
20005
8
9
10
11
12
13
www.newenglandarbors.com
www.newenglandarbors.co.uk
47 in
92.4 in
66 in
20 in
28 in
14
15 16
(Not to scale)
V4.4/121118
