4B-3
B

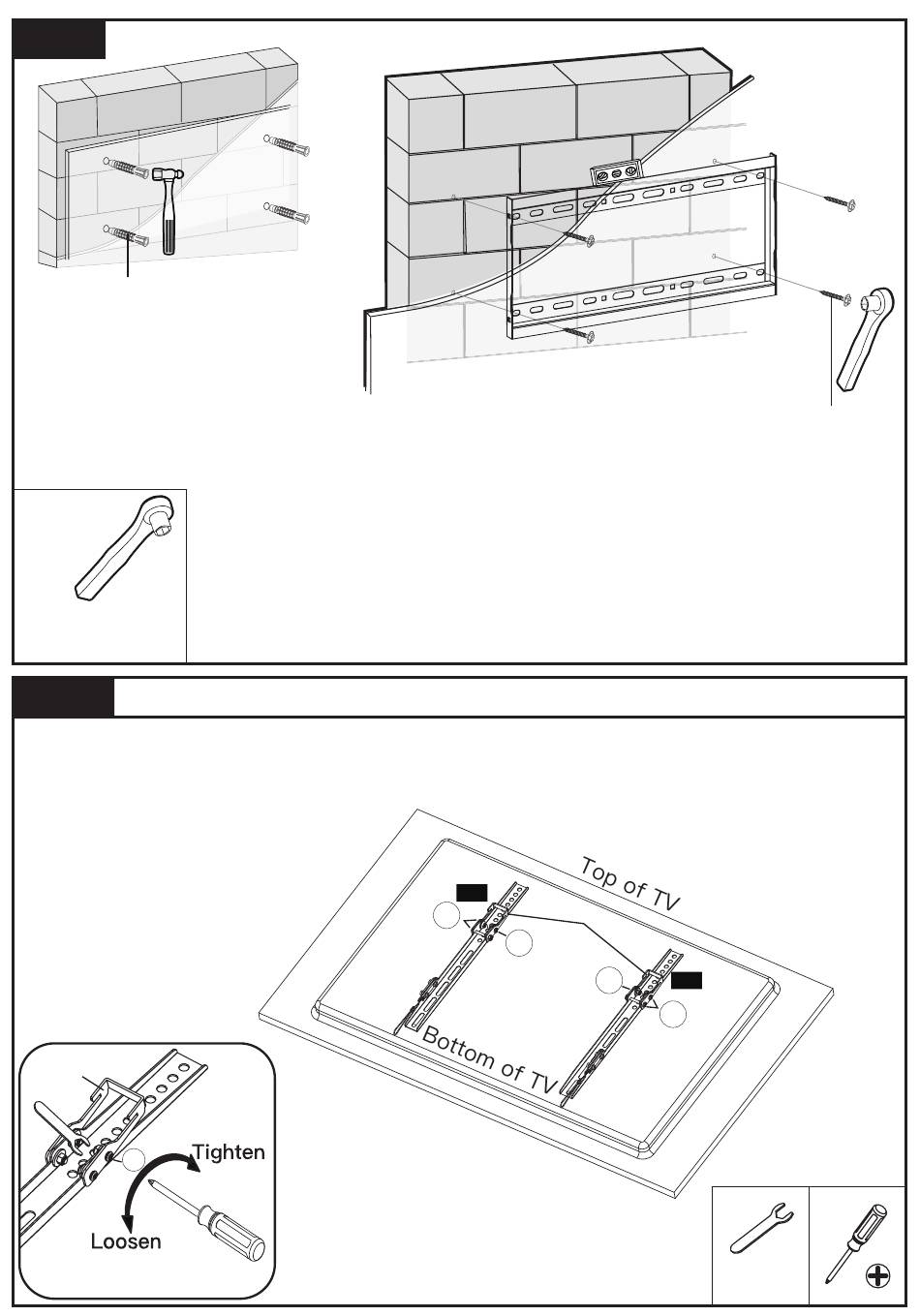

Use the hammer to knock
anchors [B] into the wall.
Be sure the anchors [B]
are seated flush with the
concrete surface.
13mm
Socket Wrench
Fix Tilting Angle
Step 5
Adjust the hooks [H] to your desired angle. Then tighten the 4 pcs tilt screws [T] in
both brackets [02]/[03] with a screwdriver (not included) to fix the tilting angle.
H
T
Install wall plate using lag bolts [A] and anchors [B]. Tighten the
lag bolts [A] only until they are pulled firmly against the wall plate.
DO NOT over-tighten the lag bolts [A].
Note: Do not over-tighten the screws.
03
H
T
T
T
7
A
02
T
8mm
Wremch
