Pipishell PIMT4 Installation Instructions Manual page 7

4A-1
4A-2
4A-3
4A-4
A

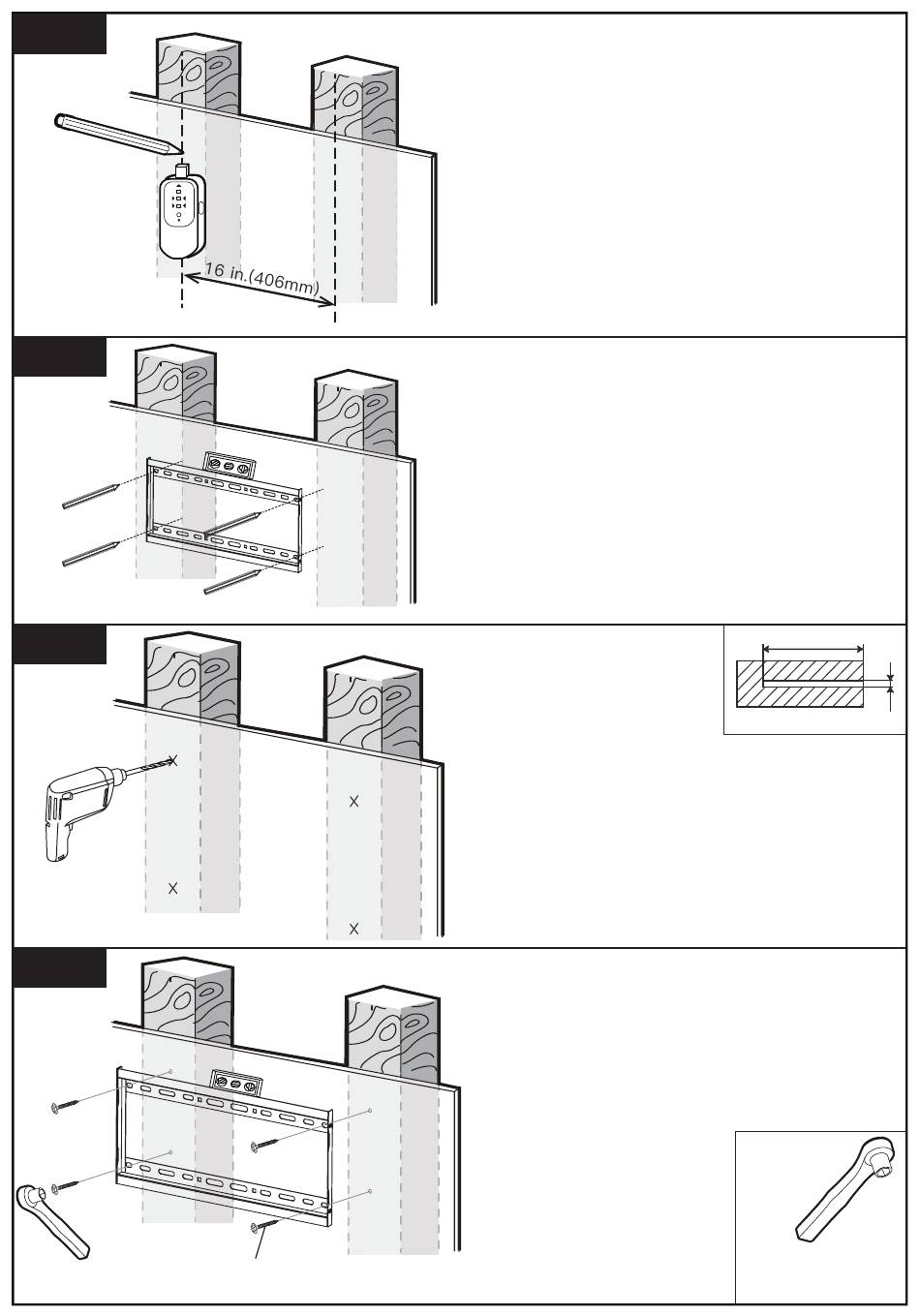

Use a stud finder(not included)to
locate wood studs. Mark the edge
and center locations.
Position the wall plate[01] at your
desired height and line up the holes with
your stud center line. Level the wall plate
and mark the holes.
Drill 4 pilot holes using a 4 mm
diameter drill bit. Make sure the
depth is not less than 55mm.
Install the wall plate [01] using lag bolts
[A]. Tighten the lag bolts [A] only until
they are pulled firmly against the wall
plate.
5
55mm
ø5mm
13mm
Socket Wrench
