Installation Instructions
V1.0

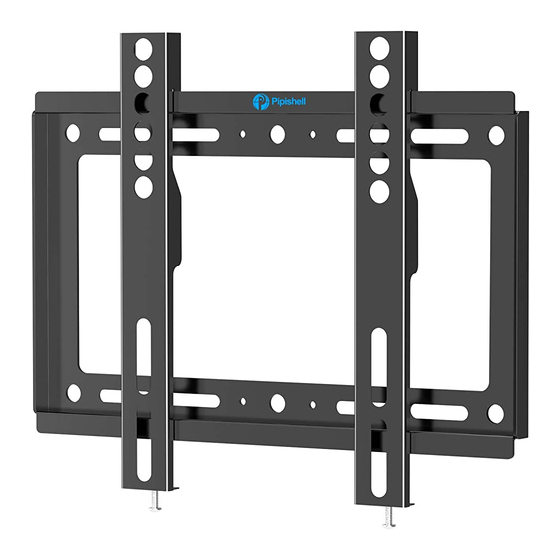

PISL2
Thank you for choosing our product! We strive to provide the best
quality and services for our customers. Would you kindly share your
experience on Amazon if you are satisfied? Should you have any
issues, please don't hesitate to contact us.
Telephone：800-556-9829 Mon-Fri 10am - 6pm (PST) (USA) (CAN)
Email：supportus@pipishell.net (US/CA/DE/UK/FR/IT/ES/JP/AU)
Advertisement
Table of Contents
Related Manuals for Pipishell PISL2
Summary of Contents for Pipishell PISL2
- Page 1 Installation Instructions V1.0 PISL2 Thank you for choosing our product! We strive to provide the best quality and services for our customers. Would you kindly share your experience on Amazon if you are satisfied? Should you have any issues, please don't hesitate to contact us.
- Page 2 •Check package contents against Supplied Parts and Hardware Lists to assure that all components were received undamaged. Do not use damaged or defective parts.lf you require replacement parts, contact customer service at supportus@pipishell.net •Not all parts and hardware included will be used.
- Page 3 Supplied Hardware Hardware for Attaching TV Bracket to TV Spacers Washers 2.5mm 10mm TV Screws M4X16mm M4X30mm M6X16mm M6X30mm M8 x 25mm Hardware for Attaching Wall Plate to Wall Lag Bolts Wall Anchor M6X50 CAUTION! These anchors are for concrete or brick walls ONLY.
- Page 4 Step 1 Select TV Screws Only one screw size fits your TV. Step 2 Select Spacers (If Needed) NO SPACER SPACER Long Screw Washer Short Screw TV Bracket TV Bracket Washer Spacer EXTRA SPACE For Flat TV For Flat TV with: Spacer not necessary Inset Holes Cable Interference...
- Page 5 Step 3 Secure the TV Brackets to Your TV No Spacer With Spacer Alternate Spacer setups Attach Wall Plate to Wall Step 4 For wood stud installation, follow STEP 4A For concrete installation, follow STEP 4B Wood Stud Option Step WARNING: ●...
- Page 6 4A-1 Use a stud finder(not included)to locate wood studs. Mark the edge and center locations. 4A-2 Position the wall plate at your desired height and line up the holes with your stud center line. Level the wall plate and mark the holes.
- Page 7 Solid Concrete or Concrete Block Option Step 4B WARNING: ● Avoid potential personal injury or property damage! DO NOT over-tighten the lag bolts [A1]. Tighten the lag bolts [A1] only until they are pulled firmly against the wall plate [01]. Wall ●...
- Page 8 4B-3 Use the hammer to knock anchors [A2] into the wall. Install wall plate using lag bolts [A1] and anchors [A2]. Be sure the anchors [A2] are seated flush with the concrete surface. Tighten the lag bolts [A1] only until they are pulled firmly against the wall plate.
