Installation Instructions
V2.0

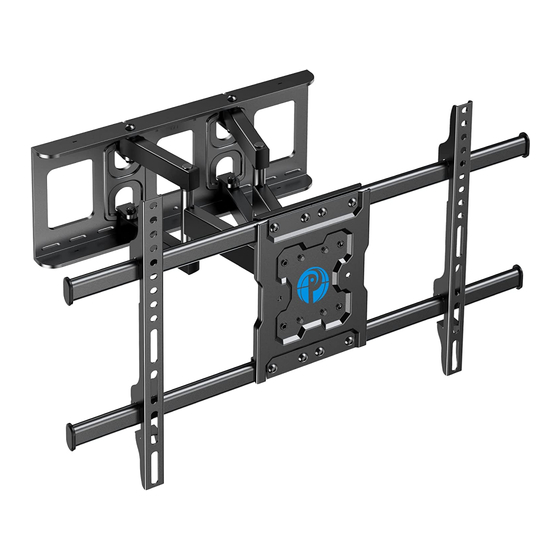

PILFK1-24
Thank you for choosing our product! We strive to provide the best
quality and services for our customers. Would you kindly share your
experience on Amazon if you are satisfied? Should you have any issues,
please don't hesitate to contact us.
Telephone：1-800-556-9829 Mon-Fri 10am - 6pm (PST) (USA) (CAN)
Email：supportus@pipishell.net (US/CA/DE/UK/FR/IT/ES/JP/AU)
Advertisement
Related Manuals for Pipishell PILFK Series
Summary of Contents for Pipishell PILFK Series
- Page 1 Thank you for choosing our product! We strive to provide the best quality and services for our customers. Would you kindly share your experience on Amazon if you are satisfied? Should you have any issues, please don't hesitate to contact us. Telephone：1-800-556-9829 Mon-Fri 10am - 6pm (PST) (USA) (CAN) Email：supportus@pipishell.net (US/CA/DE/UK/FR/IT/ES/JP/AU)
-
Page 2: Important Safety Information
•Check package contents against Supplied Parts and Hardware Lists to assure that all components were received undamaged. Do not use damaged or defective parts. lf you require replacement parts, contact customer service at supportus@pipishell.net •Not all parts and hardware included will be used. -
Page 3: Supplied Hardware
Supplied Hardware Hardware for Attaching TV Bracket to TV Spacers Washers [If necessary] [B1] M6/M8 [B2] [C1] 10mm TV Screws [Only one size fits your TV] [D1] [D2] M6 x 15mm M6 x 30mm [C2] [E1] [E2] M4 x 30mm M8 x 25mm M8 x 50mm Hardware for Attaching the Arm Assembly/Wall Plate to Wall... - Page 4 Step 1 Select TV Screws Only one screw size fits your TV. Step 2 Select Spacers (if needed) NO SPACER WITH SPACER Long Screw Washer Short Screw TV Bracket TV Bracket Washer Spacer EXTRA SPACE For Flat TV For Flat TV with: Spacer not necessary Inset Holes Cable Interference...
- Page 5 Step 3 Secure the TV Brackets to Your TV No Spacer With Spacer 10 [D2] [E2] [C2] 10 [D1] [E1] Alternate spacer setups Step 4 Step 1 Tighten the two screws together. Step 2 Tighten the two screws together.
- Page 6 Step 5 Attach the Arm Assembly/Wall Plate [01] to Wall For wood stud installation, follow STEP 5A For concrete installation, follow STEP 5B Step 5A Wood Stud Option WARNING: ●Avoid potential personal injury or property damage! DO NOT over-tighten the lag bolts [A1].
- Page 7 Option B: For 18’’-24’’ Studs DO NOT overtighten. Tighten only until snug. 5A-2 Use a stud finder(not included) to locate wood studs. Mark the edge and center locations. 5A-3 Position the arm assembly/wall plate at your desired height and line up the holes with your stud center line.
- Page 8 5A-4 Drill 4 pilot holes using a 5 mm diameter drill bit. Make sure the depth is not less than 60mm. 60mm ø5mm 5A-5 Install the arm assembly/wall plate using lag bolts [A1] and washer [A3]. Tighten the lag bolts [A1] only until the washers [A3] are pulled firmly against the wall plate.
- Page 9 5B-1 Position the arm assembly/wall plate at your desired height, level the wall plate and mark the pilot hole locations. 5B-2 Drill 4 pilot holes using a 10mm diameter drill bit. Make sure the depth is not less than 65mm. Never drill into the mortar between blocks.
- Page 10 Step 6 Secure the TV onto the Arm Assembly/Wall Plate ① ② Locking Step 7 Level Adjustment If needed, the TV can be levelled...
-
Page 11: Tilt Adjustment
Step 8 Tilt Adjustment Tilt adjustment 10mm Socket Wrench (Not included)
