Installation Instructions
V1.0

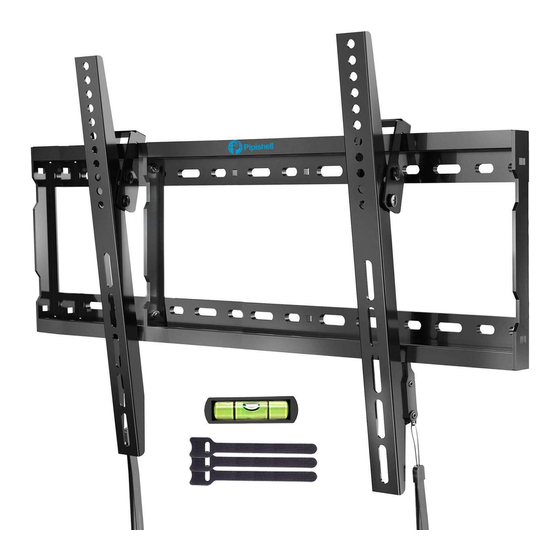

PILTK4
Thank you for choosing our product! We strive to provide the best quality
and services for our customers. Would you kindly share your experience on
Amazon if you are satisfied? Should you have any issues, please don't
hesitate to contact us.
Telephone：800-556-9829 Mon-Fri 10am - 6pm (PST) (USA) (CAN)
Email：supportus@pipishell.net (US/CA/DE/UK/FR/IT/ES/JP/AU)
Advertisement
Table of Contents
Related Manuals for Pipishell PILTK4
Summary of Contents for Pipishell PILTK4
- Page 1 Installation Instructions V1.0 PILTK4 Thank you for choosing our product! We strive to provide the best quality and services for our customers. Would you kindly share your experience on Amazon if you are satisfied? Should you have any issues, please don't hesitate to contact us.
- Page 2 •Check package contents against Supplied Parts and Hardware Lists to assure that all components were received undamaged. Do not use damaged or defective parts.lf you require replacement parts, contact customer service at supportus@pipishell.net •Not all parts and hardware included will be used.
- Page 3 Supplied Hardware Hardware for Attaching Wall Plate to Wall Lag Bolts Wall Anchor ST7X55 φ10MM CAUTION! These anchors are for concrete or brick walls ONLY. DO NOT use them in drywall or wood studs. Hardware for Attaching TV Bracket to TV Spacers Spacers Washers...
- Page 4 Step 1 Measure VESA and Check TV Screws Measure the distance between the holes located at the back of your TV (these measures may form the shape of a square, or a rectangle) and check that these taken measurements are within the VESA(*) range for this wall mount.
- Page 5 ROUND BACK TV (UNIVERSAL MONITOR PLATE) M-B/M-D M-F/M-G First, make sure the diameter of the bolt(M-A - M-G) fits your TV. Then, please see the diagram above. You will need to thread the bolt into the TV using the washer (M-H) and spacer (M-I or M-J) if necessary with a screwdriver(Not included).
- Page 6 Step 4 Attach Wall Plate to Wall [01] or [01/02] For wood stud installation, follow STEP 4A For concrete installation, follow STEP 4B Step Wood Stud Option WARNING: Avoid potential personal injury or property damage! DO NOT over-tighten the lag bolts [A]. Tighten the lag bolts [A] only until they are pulled firmly against the wall plate [01] or [01/02] .
- Page 7 4A-2 Position the wall plate at your desired height and line up the holes with your stud center line. Level the wall plate and mark the holes. 4A-3 55mm ø5mm Drill 4 pilot holes using a 5 mm diameter drill bit. Make sure the depth is not less than 55mm.
- Page 8 Step 4B Solid Concrete or Concrete Block Option WARNING: Avoid potential personal injury or property damage! DO NOT over-tighten the lag bolts [A]. Tighten the lag bolts [A] only until they are pulled firmly against the wall plate [01] or [01/02]. . WARNING: Wall Ensure the wall plate is securely fastened to the wall...
- Page 9 4B-3 Use the hammer to knock anchors [B] into the wall. Install wall plate using lag bolts [A] and anchors [B]. Be sure the anchors [B] are seated flush with the concrete surface. Tighten the lag bolts [A] only until they are pulled firmly against the wall plate.
- Page 10 Hang TV to the Wall Plate [01] or [01/02]. Step 6 HEAVY! You may need assistance with this step. Secure TV Step 7 Press Locking Pull down and hold both cords [R], press the bottom of the TV into the wall plate [01] or [01/02].until the latches lock the TV in place.
- Page 11 Removing the TV HEAVY! You may need assistance with this step. Unlocking Disconnect all cables, pull down and hold both cords [R] while gently pulling the bottom of the TV away from the wall. CAUTION: Avoid potential personal injury or property damage! To prevent breaking the locking latch: always pull and hold the cords [R] down while pulling the TV away from the wall.
