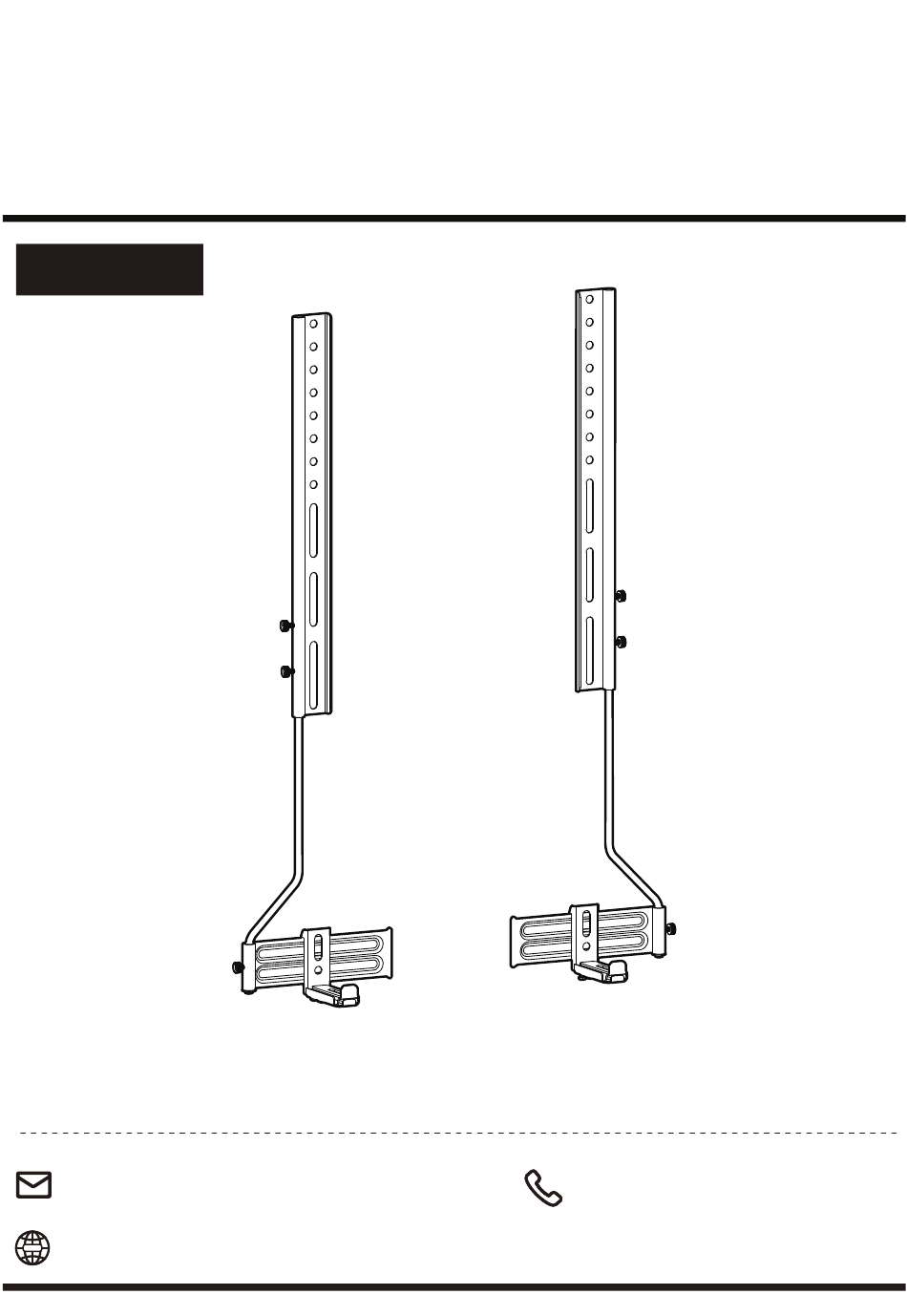

- Page 1 INSTRUCTION MANUAL Rev02(A) PISM02 Soundbar Bracket (US/CA) 1-800-556-9829 support@pipishell.net (UK) 44-808-196-3885 www.pipishellav.com WWW.
- Page 2 · Carefull read all instructions before attempting installation. If you DO NOT understand the instructions or have any questions or concerns, please contact our Technical Support line at 1-800-556-9829 (US/CA) / 44-808-196-3885 (UK) or Customer Service at support@pipishell.net. · Not all hardware included in this package will be used. CAUTION ·...
- Page 3 Contents Hardware for Attaching the Brackets to the TV Washers Spacers L2.5mm L22mm [B1] x 4 [B2] x 4 [F1] x 4 [F2] x 4 TV Bolts M4 x 30mm M4 x 50mm [C1] x 4 [C2] x 4 M6 x 30mm M6 x 50mm [D1] x 4 [D2] x 4...
- Page 4 Hardware for Attaching the Brackets to the Soundbar Soundbar Bolts M4 x 10mm M4 x 16mm [a1] x 2 [a2] x 4 M5 x 16mm [b] x 4 M6 x 16mm [c] x 4 Washers Keyhole Screw Knob [d] x 2 [e] x 2 [f] x 2 [g] x 2...
- Page 5 Step 1 Prepare your TV [If mounted] CAUTION: Follow your TV mount’s manual for instructions on how to safely remove your TV and TV bracket. NOTE: Your TV wall mount may vary from the illustrations throughout this manual — the procedure to install the soundbar is the same. TOSS a.
- Page 6 Step 2 Attach the TV Brackets and Vertical Brackets to the TV 2-1 Select TV Bolts Hand thread bolts into the threaded inserts on the back of your TV to determine which bolt (M4, M6 or M8) to use. A minimum of 4-5 turns into the threading is required. Do not turn past the bottom of the hole.
- Page 7 2-3 Attach the TV Brackets and Vertical Brackets to Your TV Knob facing Knob facing outward outward Option A: For Flat Back TVs Add spacers if needed to fit the bolt length and TV back. C1/D1/E1 B1/B2 F1/F2 (If needed)
- Page 8 Option B: For Curved TVs Spacers must be tall enough so that the curved back of the TV does not interfere with the mounting plate. C2/D2/E2 /E3/E4 B1/B2 F1/F2 Option C: For TVs with a Bump The TV brackets must be flush on the bump and leveled by spacers over the gap. C2/D2/E2 /E3/E4 B1/B2...
- Page 9 Option D: For TVs with Protruding Cables Use spacers [F1] or [F2] to create extra space between the TV and TV brackets. C2/D2/E2 /E3/E4 F1/F2 B1/B2 Option E: For TVs with Recessed Holes Spacers [F1], [F2] need to fill in the recessed holes on the back of the TV, while keeping the TV brackets as close to the TV as possible.
- Page 10 Step 3 Assemble the Bottom Brackets 3-1 Slightly loosen the knobs on both vertical brackets. Phillips Screwdriver (Not lncluded) 3-2 Insert the connecting rods [03] into the vertical brackets, then slide the brackets [04] onto the connecting rods. Do not secure them before choosing the soundbar bracket configuration on Page 11.
- Page 11 3-3 Measure the distance between the mounting holes on your soundbar / width of your soundbar. Back-Mounted Keyhole Slots Bottom-Mounted Threaded Inserts Soundbar Width 3-4 Based on your soundbar measurements, choose a proper bracket configuration (See following figures.) 3-5 Retighten the knobs, and secure the brackets [04] with washers [d] and bolts [b].
- Page 12 Step 4 Attach the Soundbar (Not Included) A: For soundbar with back-mounted keyhole slots, follow the instruction on page 12. B: For soundbar without any mounting holes or with bottom-mounted threaded inserts, go to page 13 and 14. Page 12 Page 13 - 14 Option A: For soundbar with back-mounted keyhole slots Insert the keyhole screws [g] into the keyholes on the back of the soundbar, then...
- Page 13 Option B: For soundbar without any mounting holes or with bottom- mounted threaded inserts Slightly loosen the bolts underneath to extend the clamps. Phillips Screwdriver (Not lncluded) Turn over the TV. Hang the clamps onto the brackets, making sure the hooks fit over the brackets.
- Page 14 Place soundbar on the clamps, then adjust the clamps to fit and secure by retightening the bolts. Also, tighten the bolts securing the clamps. Phillips Screwdriver (Not lncluded)
- Page 15 Step 5 Adjust the Soundbar Height (Optional) NOTE: Depending on the type of TV wall mount you have, you may need to remove your TV from the wall to adjust the soundbar height. CAUTION: Make sure to support your soundbar with one hand while moving it. Phillips Screwdriver (Not lncluded)
- Page 16 Step 6 Reattach the TV 860-00538-00 Rev02...
